Milwaukee

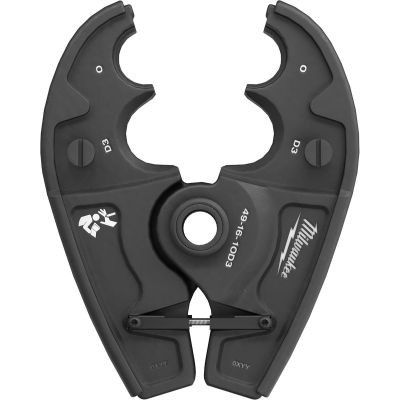

Milwaukee Tool M18 6T Fixed O Crimping Jaw
- SKU:
- MLW49-16-1OD3
- Availability:
- Usually Ships Same Day
- Weight:
- 4.00 LBS
Description
DUTY®
6T Fixed O
Crimping Jaw
A fixed-O jaw for the 2678-20 M18 FORCE LOGIC 6T utility crimper, accepting W-style dies.
Product Overview
Use the fixed-O jaw on the M18 FORCE LOGIC 6T 2678-20 crimper with matching W-style dies.
Die and groove markings aid selection; match conductor, connector and die to the approved chart.
- Fixed dieO profile.
- Die compatibilityIndustry-standard W style.
- Verified crimper2678-20.
- IdentificationClear die and groove markings.
Technical Specifications
- Force class
- 6T
- Fixed profile
- O
- Die style
- W style
- Crimper fit
- 2678-20
- Length
- 7 in
- Width
- 6.3 in
Choose the Correct Fit
Confirm the exact crimper and jaw combination. Select the die and connector using the manufacturer’s application chart.
Remove the battery before changing jaws or dies. Follow the crimper’s locking and retention instructions and verify full engagement.
Installation & Care
Check the die markings before every connection and use the prescribed number and location of crimps. Keep hands clear of the closing jaw.
Inspect jaw faces, pins and die-retention features. Remove damaged parts from service and follow the crimper’s maintenance schedule.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Tell Willy the crimper, connector and die references to check the fixed-O jaw arrangement.
Important Product Questions
Which crimper is verified?
Use with the 2678-20 M18 FORCE LOGIC 6T Utility Crimper. Confirm the complete jaw, die and connector combination.
Which removable dies does it accept?
Milwaukee and industry-standard W-style dies are specified. Use the exact die prescribed for the conductor and connector.
Is this a cable-cutting jaw?
This is a crimping jaw. Select a separately specified cutting jaw for cutting cable.
