Milwaukee Tool 7 PC SHOCKWAVE Impact Duty Carbide Multi-Material Drill Bit Concrete Screw Install Set
- SKU:
- MLW48-20-8877
- Availability:
- Usually Ships Same Day
- Weight:
- 0.90 LBS
Description
DUTY®
Concrete Screw
Drill and Drive Set

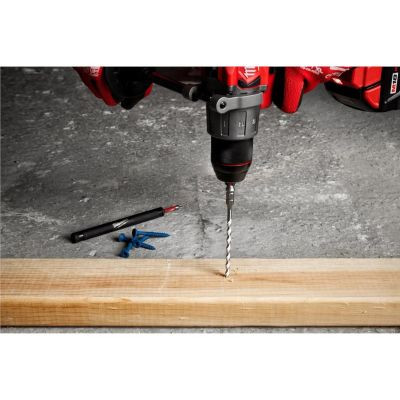

Pair carbide pilot drilling with screw-driving accessories for a coordinated concrete-screw installation.
Product Overview
The 5/32 and 3/16 in bits pair with 3/16 and 1/4 in screws. Follow the fastener instructions.
The sleeve switches from drilling to driving. Recessed nut drivers help control seating torque.
- Drill and driveDrills, then drives.
- Carbide drill tipsCarbide cutting tips.
- Hex shouldersJoin bits and drive sleeve.
- Recessed nut driversHelp limit over-torque.
Technical Specifications
- Drill diameters
- 5/32 and 3/16 in
- Tip material
- Carbide
- Shank
- 1/4 in hex
- Driver sizes
- 1/4 and 5/16 in
- Power-bit tips
- T25 and T30
- Storage
- PACKOUT-ready case
Choose the Correct Fit
Follow the fastener instructions for the required hole size, depth and cleaning procedure.
Check for concealed services and select the drilling mode required for the material at the hole.
Installation & Care
Isolate the tool before changing accessories. Confirm the holder retains the hex shank securely.
Use suitable dust controls and eye protection. Let hot carbide tips cool before handling them.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help matching an assortment to your job? Tell Willy the material layers, fasteners and tool.
Important Product Questions
Which exact accessories are included?
The kit has 5/32 and 3/16 in concrete-screw drill bits, each 6 in overall; 1/4 and 5/16 in nut drivers; 2 in T25 and T30 TORX power bits; and a drive sleeve.
Which bit matches each concrete screw?
Use the 5/32 in bit for 3/16 in concrete screws and the 3/16 in bit for 1/4 in concrete screws, subject to the screw maker’s installation instructions.
Does the sleeve replace the anchor instructions?
No. Confirm the required hole depth and cleaning procedure, then follow the specified drive setting. A collar or recessed driver does not guarantee a correct installation.
