Milwaukee

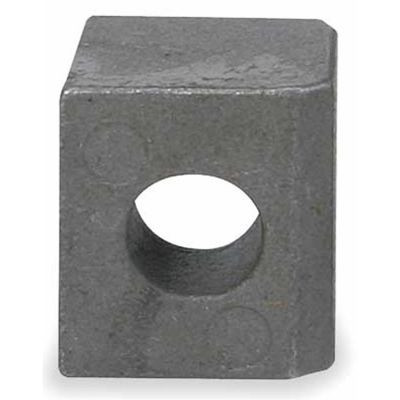

Milwaukee Tool 16 Gauge Die
- SKU:
- MLW48-44-0270
- Availability:
- Usually Ships Same Day
- Weight:
- 0.02 LBS
Description
DUTY®
16-Gauge
Replacement Die
A replacement die for Milwaukee nibbler 6890, with separate collar and die-removal tool requirements.
Product Overview
The die is specified for the 16-gauge 6890 nibbler. Its matching punch is purchased separately.
Remove the protective collar with the plate wrench, then use the 2.5 mm wrench for the die.
- Verified toolNibbler 6890.
- Capacity class16 gauge.
- Collar removalPlate wrench 49-96-4725.
- Die removal2.5 mm wrench 49-96-0330.
Technical Specifications
- Capacity class
- 16 gauge
- Host nibbler
- 6890
- Matching punch
- 48-44-0260
- Collar wrench
- 49-96-4725
- Die wrench
- 49-96-0330
- Wrench size
- 2.5 mm
Choose the Correct Fit
Confirm nibbler model 6890 and inspect both the punch and die. A worn cutting pair may require more than one replacement component.
Disconnect the tool from power before service. Use plate wrench 49-96-4725 to remove the protective collar as instructed.
Installation & Care
Use the specified 2.5 mm wrench 49-96-0330 for die removal and installation. Follow the nibbler’s setup and clearance instructions.
Verify correct assembly before cutting. Make a controlled check in suitable scrap and stop if the cutting action is abnormal.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Send Willy the nibbler model and whether the punch, die or both need service.
Important Product Questions
Is the punch included?
No. Replacement punch 48-44-0260 is purchased separately.
Which tool fits this die?
The specified host is Milwaukee 16-gauge nibbler 6890.
What tools are needed to remove it?
Plate wrench 49-96-4725 removes the protective collar, and 2.5 mm wrench 49-96-0330 removes the die.
