Titan

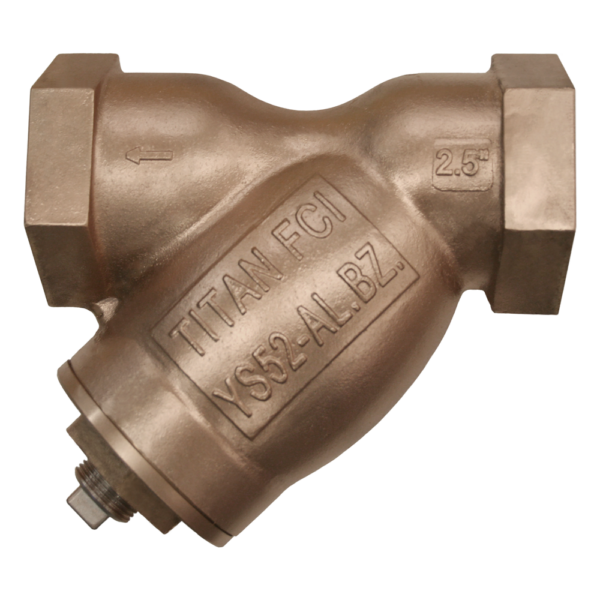

Lead-Free Aluminum Bronze Threaded Y Strainer - Class 250
- SKU:
- YS52-AB
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Titan YS52-AB Lead-Free Aluminum Bronze Threaded Y Strainer - Class 250
Titan Flow Control YS52-AB aluminum bronze threaded Y strainers remove unwanted debris from compatible piping systems while providing excellent corrosion resistance for demanding water, marine, and industrial service.
Select the required nominal pipe size from the product options above. The selected variation determines the Titan part code, GetPipe selling price, shipping weight, net cost, and size-specific product information.
Product Highlights
- Titan Flow Control model YS52-AB
- Lead-free aluminum bronze construction
- ASTM B148 Grade 9D body and cap
- Threaded end connections
- ASME Class 250 design
- 400 psi WOG non-shock pressure rating at 150°F
- Stainless steel straining element
- PTFE / Teflon gasket
- Precision-machined screen seats help prevent debris bypass
- Large straining capacity helps minimize pressure drop
- Tapped NPT blow-off connection supports cleaning and maintenance
- Suitable for potable-water applications under Titan's published lead-free requirements
- Available in nominal pipe sizes from 1/4" through 3"
Technical Specifications
| Manufacturer | Titan Flow Control |
|---|---|
| Model | YS52-AB |
| Product Type | Y / Wye Strainer |
| Body / Cap Material | Aluminum Bronze - ASTM B148 Grade 9D |
| End Connection | Threaded |
| ASME Rating | Class 250 |
| Pressure Rating | 400 psi WOG non-shock at 150°F |
| Straining Element | Stainless Steel |
| Gasket | PTFE / Teflon |
| Standard Liquid Screen - 1/4" through 2" | 20 Mesh |
| Standard Liquid Screen - 2-1/2" through 3" | 1/16" Perforation |
| Available Sizes | 1/4" through 3" |
Why Aluminum Bronze?
Aluminum bronze combines high strength with excellent resistance to corrosion. Titan identifies ASTM B148 aluminum bronze as a preferred material for lead-free Y strainers and for applications such as seawater and other services where corrosion resistance is important.
The YS52-AB also meets Titan's published lead-free requirements for potable-water use, with lead content of 0.25% or less by weighted average on wetted surfaces.
How a Y Strainer Works
Flow passes through the internal stainless steel straining element, which captures debris before it can reach downstream pumps, meters, spray nozzles, compressors, turbines, valves, and other equipment.
The straining element should be inspected and cleaned routinely. Titan recommends avoiding excessive differential pressure across a loaded screen.
Straining Element Options
For standard liquid service, Titan specifies a 20-mesh straining element for sizes 1/4" through 2" and a 1/16" perforated element for sizes 2-1/2" through 3". Titan also offers stocked alternate mesh and perforation selections. If your service requires a specific filtration opening, contact GetPipe.com before ordering so the required configuration can be confirmed.
Common Applications
Water & Marine Service
- Potable-water piping
- Seawater and marine systems
- Pump and meter protection
- Corrosive water-service applications
Commercial & Industrial
- Process piping
- Spray nozzle protection
- Compressor and turbine protection
- Equipment inlet protection
Titan Product Resources
Use the manufacturer documents below for model-specific technical information, installation guidance, maintenance procedures, and selection assistance.
Need Help Selecting a Titan Aluminum Bronze Y Strainer?
Our industrial PVF specialists can help confirm nominal pipe size, pressure class, straining element, media compatibility, service conditions, and product availability.
Frequently Asked Questions
What is the Titan YS52-AB?
The YS52-AB is a lead-free aluminum bronze threaded Y strainer designed to remove debris from compatible piping systems.
What pressure class is the YS52-AB?
Titan identifies the YS52-AB as ASME Class 250 with a 400 psi WOG non-shock pressure rating at 150°F.
Why use aluminum bronze?
Aluminum bronze provides high strength and strong corrosion resistance, making it useful for seawater, potable-water, and other compatible corrosive-service applications.
What is the standard liquid screen?
Sizes 1/4" through 2" use 20 mesh for standard liquid service. Sizes 2-1/2" through 3" use 1/16" perforation.
Can a different screen or perforation be ordered?
Yes. Titan offers multiple stocked mesh and perforation selections. Contact GetPipe.com for non-standard filtration requirements.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- The selected variation determines the Titan part code, price, shipping weight, and net cost.
- Standard liquid screen configuration changes at 2-1/2". Confirm filtration requirements before ordering.
- Confirm thread size, pressure, temperature, media compatibility, and applicable code requirements before installation.
- Review Titan's current specification sheet and IOM manual before installation or maintenance.
