Empire Industries
Fig. 8150 Top Spring Strut Nut
- SKU:
- Fig. 8150
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

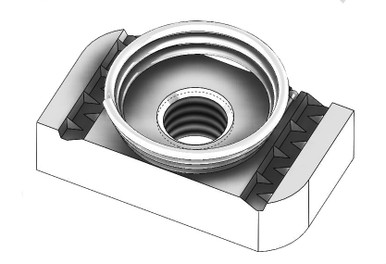

Fig. 8150 Top Spring Strut Nut - Zinc Plated
Empire Fig. 8150 Top Spring Strut Nut is a zinc-plated strut nut with a top spring, designed for use with strut channel.
Strut nuts provide a connection point for attaching hanger rod or other accessories to strut. The Fig. 8150 is the top-spring configuration in Empire's Series 8000 strut nut family.
Product Highlights
- Strut nut with top spring
- Zinc-plated finish
- Designed for use with strut channel
- Can be used for attaching hanger rod or other accessories from strut
- Available in multiple rod/thread sizes
Rod / Thread Size Specifications
| Rod / Thread Size | Thickness | Weight Each |
|---|---|---|
| 3/8"-16 | 3/8" | 0.10 lbs |
| 1/2"-13 | 3/8" | 0.10 lbs |
| 5/8"-11 | 1/2" | 0.14 lbs |
Technical Specifications
| Figure | 8150 |
|---|---|
| Product Type | Top Spring Strut Nut |
| Material / Finish | Zinc Plated |
| Configuration | Top Spring |
| Application | Strut Channel |
Top Spring Configuration
The Fig. 8150 is the Series 8000 strut nut configuration supplied with a top spring.
Zinc-Plated Finish
This Fig. 8150 listing is for the zinc-plated top spring strut nut configuration.
Important Ordering Notes
This listing is for the zinc-plated Fig. 8150 Top Spring Strut Nut. Confirm the required rod/thread size before ordering.
Product Documents
Product Questions
What type of spring does the Fig. 8150 use?
The Fig. 8150 is supplied with a top spring.
What finish does the Fig. 8150 have?
This Fig. 8150 configuration has a zinc-plated finish.
What rod/thread sizes are shown for the Fig. 8150?
The Empire Series 8000 submittal shows 3/8"-16, 1/2"-13, and 5/8"-11 rod/thread sizes for the Fig. 8150.
Does the thickness vary by size?
Yes. The 3/8"-16 and 1/2"-13 sizes are shown with a 3/8" thickness, while the 5/8"-11 size is shown with a 1/2" thickness.
What is the Fig. 8150 used for?
The Fig. 8150 is a strut channel nut that can be used for attaching hanger rod or other accessories from strut.
