Empire Industries

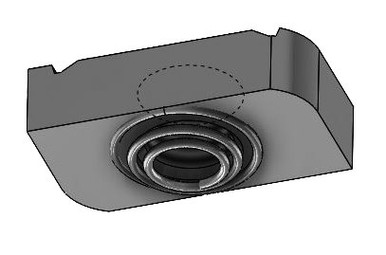

Fig. 8050 Strut Nut With Short Spring
- SKU:
- Fig. 8050
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Fig. 8050 Strut Nut With Short Spring - Zinc Plated
Empire Fig. 8050 Strut Nut is a zinc-plated strut nut with a short spring, designed for use with strut channel.
Strut nuts provide a connection point for attaching hanger rod or other accessories to strut. The Fig. 8050 is the short-spring configuration in Empire's Series 8000 strut nut family.
Product Highlights
- Strut nut with short spring
- Zinc-plated finish
- Designed for use with strut channel
- Can be used for attaching hanger rod or other accessories from strut
- Available in multiple rod/thread sizes
Rod / Thread Size Specifications
| Rod / Thread Size | Thickness | Weight Each |
|---|---|---|
| 1/4"-20 | 1/4" | 0.07 lbs |
| 5/16"-18 | 1/4" | 0.07 lbs |
| 3/8"-16 | 1/4" | 0.07 lbs |
| 1/2"-13 | 1/4" | 0.07 lbs |
Technical Specifications
| Figure | 8050 |
|---|---|
| Product Type | Strut Nut With Short Spring |
| Material / Finish | Zinc Plated |
| Configuration | Short Spring |
| Application | Strut Channel |
Short Spring Configuration
The Fig. 8050 is the Series 8000 strut nut configuration supplied with a short spring.
Zinc-Plated Finish
The Fig. 8050 shown in the Empire Series 8000 submittal is supplied with a zinc-plated finish.
Important Ordering Notes
This listing is for the zinc-plated Fig. 8050 Strut Nut with short spring. Confirm the required rod/thread size before ordering.
Product Documents
Product Questions
Does the Fig. 8050 Strut Nut include a spring?
Yes. The Fig. 8050 is supplied with a short spring.
What finish does the Fig. 8050 have?
The Fig. 8050 has a zinc-plated finish.
What rod/thread sizes are shown for the Fig. 8050?
The Empire Series 8000 submittal shows 1/4"-20, 5/16"-18, 3/8"-16, and 1/2"-13 rod/thread sizes for the Fig. 8050.
What is the thickness of the Fig. 8050 Strut Nut?
The Fig. 8050 sizes shown in the submittal have a thickness of 1/4".
How much does the Fig. 8050 weigh?
The Fig. 8050 sizes shown in the submittal have a listed weight of 0.07 lbs each.
What is the Fig. 8050 used with?
The Fig. 8050 is designed for use with strut channel and can be used as a connection point for hanger rod or other accessories.
