Empire Industries
Fig. 8100 Strut Nut With Regular Spring
- SKU:
- Fig. 8100
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

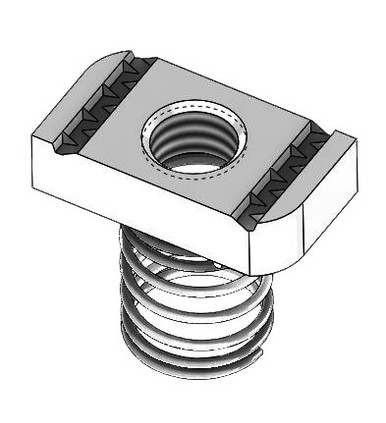

Fig. 8100 Strut Nut With Regular Spring
Empire Fig. 8100 Strut Nut is a strut channel nut with a regular spring, designed for attaching hanger rod or other accessories from strut.
The Fig. 8100 is the regular-spring configuration in Empire's Series 8000 strut nut family and is available in zinc-plated and T-316 stainless steel options.
Product Highlights
- Strut nut with regular spring
- Designed for use with strut channel
- Available in zinc-plated and T-316 stainless steel
- Can be used for attaching hanger rod or other accessories from strut
- Available in multiple rod/thread sizes
Rod / Thread Size Specifications
| Rod / Thread Size | Thickness | Weight Each |
|---|---|---|
| 1/4"-20 | 1/4" | 0.09 lbs |
| 5/16"-18 | 1/4" | 0.09 lbs |
| 3/8"-16 | 1/4" | 0.09 lbs |
| 1/2"-13 | 1/4" | 0.10 lbs |
| 5/8"-11 | 3/8" | 0.14 lbs |
| 3/4"-10 | 1/2" | 0.20 lbs |
| 7/8"-9 | 1/2" | 0.24 lbs |
Technical Specifications
| Figure | 8100 |
|---|---|
| Product Type | Strut Nut With Regular Spring |
| Materials / Finishes | Zinc Plated (8100Z) T-316 Stainless (8100SX) |
| Configuration | Regular Spring |
| Application | Strut Channel |
Regular Spring Configuration
The Fig. 8100 is the Series 8000 strut nut configuration supplied with a regular spring.
Material & Finish Options
The Fig. 8100 is available in zinc-plated (8100Z) and T-316 stainless steel (8100SX) configurations.
Important Ordering Notes
Confirm the required rod/thread size and material or finish before ordering. The Fig. 8100 is available in zinc-plated (8100Z) and T-316 stainless steel (8100SX) configurations.
Product Documents
Product Questions
What type of spring does the Fig. 8100 use?
The Fig. 8100 is supplied with a regular spring.
What material and finish options are available?
The Fig. 8100 is available in zinc-plated (8100Z) and T-316 stainless steel (8100SX) configurations.
What rod/thread sizes are available?
The Series 8000 submittal shows Fig. 8100 rod/thread sizes from 1/4"-20 through 7/8"-9.
Does the thickness vary by size?
Yes. The thickness shown in the submittal varies by rod/thread size. Refer to the specification table above for the applicable thickness.
What is the Fig. 8100 used for?
The Fig. 8100 is a strut channel nut that can be used for attaching hanger rod or other accessories from strut.
