Fig. 431KT Adjustable Bolt on Flange Support Kit
- SKU:
- Fig. 431KT
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

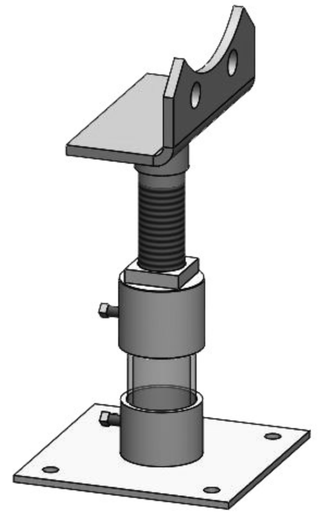

Fig. 431KT Adjustable Bolt-On Flange Support Kit
Empire Fig. 431KT Adjustable Bolt-On Flange Support Kit is designed to support pipe flanges horizontally and can be fitted on multiple pounds-per-square-inch flange configurations.
Product Highlights
- Adjustable bolt-on flange support kit
- Designed to support pipe flanges horizontally
- Available in multiple material and finish options
- Sizes shown from 2" through 12"
- Thread sizes shown from 1-1/4"-7 through 1-1/2"-7
Kit Saddle Specifications
| Size | A | B | C | H | Thread Size |
|---|---|---|---|---|---|
| 2" | 6-1/2" | 1-3/8" | 6-1/2" | 13/16" | 1-1/4"-7 |
| 4" | 6-7/8" | 1-1/2" | 6" | 13/16" | 1-1/4"-7 |
| 6" | 7-3/8" | 1-1/2" | 8" | 15/16" | 1-1/4"-7 |
| 8" | 9-1/8" | 1-1/2" | 9-1/8" | 15/16" | 1-1/4"-7 |
| 10" | 10-5/16" | 1-1/2" | 8" | 1-1/16" | 1-1/4"-7 |
| 12" | 11-13/16" | 1-1/2" | 9-1/2" | 1-1/16" | 1-1/2"-7 |
Technical Specifications
| Figure | 431KT |
|---|---|
| Product Type | Adjustable Bolt-On Flange Support Kit |
| Service | Designed to support pipe flanges horizontally |
| Materials / Finishes | Hot-Dip Galvanized (431KTHDG) T-304 Stainless Steel T-316 Stainless Steel |
Flange Support Application
The Fig. 431KT is designed to support pipe flanges horizontally. The bolt-on saddle configuration provides an adjustable flange support arrangement.
Material & Finish Options
The Fig. 431KT submittal shows hot-dip galvanized, T-304 stainless steel, and T-316 stainless steel configurations.
Important Ordering Notes
Confirm the required flange size, material or finish, and support configuration before ordering. Refer to the Fig. 431KT submittal and Empire installation guide for dimensional and installation information.
Product Documents
Product Questions
What is the Fig. 431KT designed for?
The Fig. 431KT is designed to support pipe flanges horizontally.
What sizes are shown for the Fig. 431KT?
The submittal shows 2", 4", 6", 8", 10", and 12" sizes.
What material and finish options are available?
The submittal shows hot-dip galvanized, T-304 stainless steel, and T-316 stainless steel configurations.
Is installation information available?
Yes. The Empire installation guide is available in the Product Documents & Help section above.
Are flange dimensional specifications available?
Yes. The 150# & 300# Flange Dimensional Specifications PDF is provided in the Product Documents & Help section above.
Ask Willy: Product Information & Help
Contact the GetPipe.com team for help with Fig. 431KT Adjustable Bolt-On Flange Support Kit.
