Fig. 430KTSF Adjustable Flange Support Kit
- SKU:
- Fig. 430KTSF
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

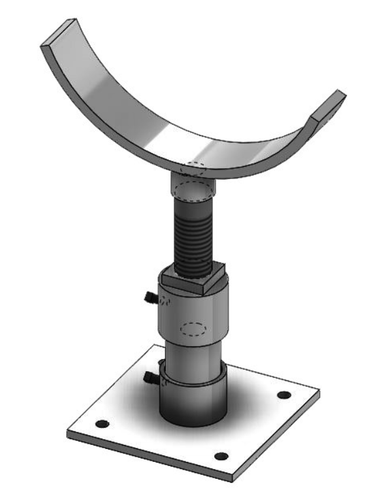

Fig. 430KTSF Adjustable Flange Support Kit - Hot-Dip Galvanized
Empire Fig. 430KTSF Adjustable Flange Support Kit is designed to support pipe flanges horizontally and is supplied with a hot-dip galvanized finish.
Product Highlights
- Adjustable flange support kit
- Designed to support pipe flanges horizontally
- Hot-dip galvanized finish
- Available in 4", 6", 8", and 10" sizes
- Supplied as an adjustable support kit
Kit Saddle Specifications
| Size | A | B | C | D | E | Thread Size |
|---|---|---|---|---|---|---|
| 4" | 4.50" | 1.25" | 1.50" | 2.500" | 0.500" | 1-1/4"-7 |
| 6" | 5.00" | 1.50" | 1.500" | 2.500" | 0.500" | 1-1/4"-7 |
| 8" | 5.50" | 1.50" | 1.500" | 2.500" | 0.500" | 1-1/4"-7 |
| 10" | 6.75" | 1.50" | 1.500" | 3.000" | 0.500" | 1-1/2"-7 |
Technical Specifications
| Figure | 430KTSF |
|---|---|
| Product Type | Adjustable Flange Support Kit |
| Service | Designed to support pipe flanges horizontally |
| Material / Finish | Hot-Dip Galvanized |
| Available Sizes | 4", 6", 8", 10" |
Flange Support Application
The Fig. 430KTSF is designed to support pipe flanges horizontally using an adjustable saddle-style support configuration.
Hot-Dip Galvanized Finish
This Fig. 430KTSF configuration is supplied with a hot-dip galvanized finish.
Important Ordering Notes
This listing is for the hot-dip galvanized Fig. 430KTSF Adjustable Flange Support Kit. Confirm the required pipe flange size before ordering and refer to the product submittal and installation guide for dimensional and installation information.
Product Documents
Product Questions
What is the Fig. 430KTSF designed for?
The Fig. 430KTSF is designed to support pipe flanges horizontally.
What finish does the Fig. 430KTSF have?
This Fig. 430KTSF configuration has a hot-dip galvanized finish.
What sizes are available?
The Fig. 430KTSF submittal shows 4", 6", 8", and 10" sizes.
Is the Fig. 430KTSF adjustable?
Yes. The Fig. 430KTSF is identified as an adjustable flange support kit.
Is an installation guide available?
Yes. The Empire installation guide is available in the Product Documents & Help section above.
Are flange dimensional specifications available?
Yes. The 150# & 300# Flange Dimensional Specifications PDF is provided in the Product Documents & Help section above.
