Fig. 422U Adjustable Pipe Support W/ U-Bolt
- SKU:
- Fig. 422U
- Availability:
- 2-3 Weeks to Ship
- Weight:
- 0.00 LBS
- Finish:
- Plain Steel
Description

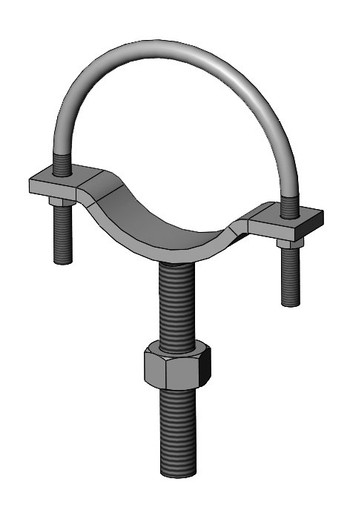

Fig. 422U Adjustable Pipe Support With U-Bolt - Plain Steel
Empire Fig. 422U Adjustable Pipe Support With U-Bolt is designed to be used in conjunction with a standard pipe and flange at the base to support piping where an overhead supporting member is not available.
The stem is threaded the full length with a nut to allow vertical adjustment to accommodate the pitch in the pipe line. This listing is for the plain carbon steel configuration.
Product Highlights
- Adjustable pipe support with U-bolt
- Designed for use where an overhead supporting member is not available
- Used in conjunction with a standard pipe and flange at the base
- Full-length threaded stem allows vertical adjustment
- Heavy hex nut
- Plain carbon steel construction
- Domestically manufactured
Size & Weight Specifications
| Pipe Size | Diameter x Length of Stem | Weight Each |
|---|---|---|
| 1/2" | 7/8" x 8" | 5.2 lbs |
| 3/4" | 7/8" x 8" | 5.3 lbs |
| 1" | 1" x 8" | 6.5 lbs |
| 2" | 1-1/4" x 8" | 7.7 lbs |
| 4" | 1-1/4" x 8" | 8.2 lbs |
| 6" | 1-1/2" x 8" | 9.5 lbs |
| 10" | 2-1/2" x 8" | 16.8 lbs |
| 12" | 2-1/2" x 8" | 19.8 lbs |
Technical Specifications
| Figure | 422U |
|---|---|
| Product Type | Adjustable Pipe Support With U-Bolt |
| Material / Finish | Plain Carbon Steel (422UB) |
| Adjustment | Full-length threaded stem with nut for vertical adjustment |
| Manufacturing | Domestically Manufactured |
Adjustable Support
The stem is threaded the full length and includes a nut that allows the support to be vertically adjusted to accommodate pitch in the pipe line.
Support Application
The Fig. 422U is designed for use with a standard pipe and flange at the base where an overhead supporting member is not available.
Important Ordering Notes
This listing is for the plain carbon steel Fig. 422U Adjustable Pipe Support With U-Bolt. Specify the required pipe size when ordering.
Product Documents
Product Questions
What is the Fig. 422U designed for?
The Fig. 422U is designed to be used with a standard pipe and flange at the base to support piping where an overhead supporting member is not available.
How is the support height adjusted?
The stem is threaded the full length with a nut to allow vertical adjustment and accommodate pitch in the pipe line.
What material is this Fig. 422U made from?
This listing is for the plain carbon steel configuration, identified as 422UB.
What pipe sizes are shown on the submittal?
The submittal provides specifications for pipe sizes from 1/2" through 12".
Is the Fig. 422U domestically manufactured?
Yes. The submittal identifies the Fig. 422U as domestically manufactured.
