Empire Industries
Fig. 320 Turnbuckle
- SKU:
- Fig. 320
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
*Images are for visual reference only.
Frequently bought together:
Description
Pipe Hangers & Supports / Brackets
Empire Industries

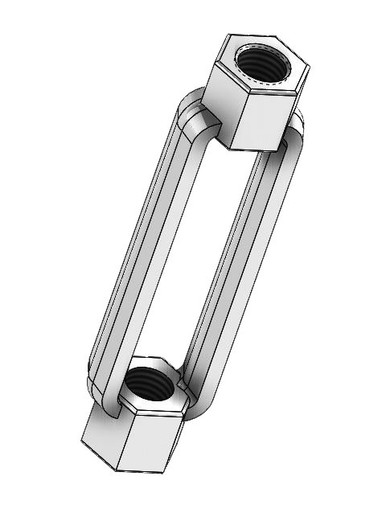

Fig. 320 Turnbuckle
Empire Fig. 320 Turnbuckle is designed for use with threaded rod in pipe hanger assemblies and provides a means of adjustment during installation.
Product Highlights
- Designed for use with threaded rod
- Provides adjustment in hanger assemblies
- Normally supplied for UNC-2A threaded rod
- Available in carbon steel and T-304 stainless steel
- Multiple finish options available for carbon steel models
Available Sizes & Load Data
| Rod Size | Maximum Recommended Load |
|---|---|
| 3/8" | 730 lb |
| 1/2" | 1,130 lb |
| 5/8" | 1,810 lb |
| 3/4" | 2,710 lb |
| 7/8" | 3,770 lb |
| 1" | 4,960 lb |
| 1-1/4" | 8,000 lb |
| 1-1/2" | 10,000 lb |
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 320 |
| Product Type | Turnbuckle |
| Service | Provides adjustment in hanger assemblies; normally tapped for UNC-2A threaded rod |
| Carbon Steel Material | Plain Carbon Steel (1008) |
| Stainless Steel Material | T-304 Stainless Steel (304SS) |
| Carbon Steel Finishes | Plain, Hot-Dip Galvanized, or Electro-Galvanized |
| Stainless Steel Finish | Special Thread Protection |
Important Ordering Notes
- Confirm the required rod size before ordering.
- Confirm the required material and finish for the installation environment.
- Do not exceed the maximum recommended load for the selected size.
Product Documents
Product Questions
What is the Fig. 320 Turnbuckle used for?
It provides a means of adjustment in a hanger assembly and is normally tapped for UNC-2A threaded rod.
What materials are available?
The Fig. 320 is available in plain carbon steel and T-304 stainless steel.
What finishes are available?
Carbon steel versions are available plain, hot-dip galvanized, or electro-galvanized. The stainless steel option is listed with special thread protection.
