Fig. 114 Turnbuckle Adjuster
- SKU:
- Fig. 114
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
*Images are for visual reference only.
Frequently bought together:
Description
Pipe Hangers & Supports / Brackets
Empire Industries

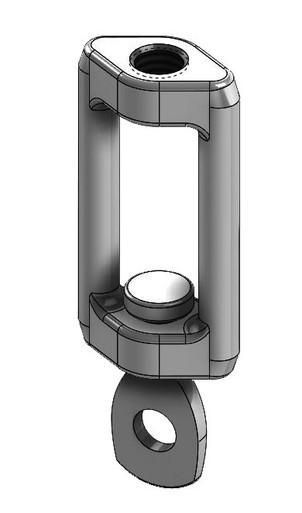

Fig. 114 Turnbuckle Adjuster Plain Finish
Empire Fig. 114 Turnbuckle Adjuster is designed to provide vertical rod adjustment in pipe support assemblies.
Product Highlights
- Designed to provide vertical rod adjustment
- Plain malleable iron construction for this configuration
- Available for 3/8"-16 and 1/2"-13 rod sizes
- Maximum recommended load: 610 lb
- Complies with Federal Specification WW-H-171-E Type 15, A-A-1192 A Type 15, MSS SP-58 and MSS SP-69 Type 15
Size Data
| Rod Size | Pipe Size | Weight Each | Max Recommended Load |
|---|---|---|---|
| 3/8"-16 | 1/2" to 2" | 0.30 lb | 610 lb |
| 1/2"-13 | 2-1/2" to 3-1/2" | 0.28 lb | 610 lb |
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 114 |
| Product Type | Turnbuckle Adjuster |
| Material / Finish | Plain Malleable Iron (114B) |
| Service | Vertical Rod Adjustment |
| Maximum Recommended Load | 610 lb |
| Approvals | WW-H-171-E Type 15, A-A-1192 A Type 15, MSS SP-58 and MSS SP-69 Type 15 |
Important Ordering Notes
- This listing is for the plain malleable iron configuration.
- Specify the figure number and rod size when ordering.
- Do not exceed the 610 lb maximum recommended load.
Product Documents
Product Questions
What is the Fig. 114 Turnbuckle Adjuster used for?
It is designed to provide vertical rod adjustment.
What rod sizes are available?
The published sizes are 3/8"-16 and 1/2"-13.
What is the maximum recommended load?
The maximum recommended load is 610 lb for both published sizes.
