Empire Industries

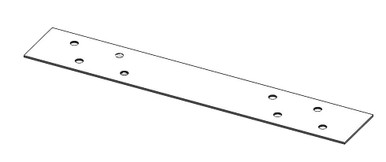

Fig. 243G FHA Nail Plate
- SKU:
- Fig. 243G
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Fig. 243G FHA Nail Plate
Empire Fig. 243G FHA Nail Plate is designed to protect piping and electrical lines that pass through wood framing from damage caused by penetration from drywall or other fasteners.
Manufactured from electro-galvanized carbon steel, the Fig. 243G is an FHA protective nail plate that attaches with metal framing screws and is available in multiple gauges and sizes.
Product Highlights
- FHA protective nail plate
- Designed to protect piping and electrical lines passing through wood framing
- Helps protect concealed lines from drywall and other fastener penetration
- Electro-galvanized carbon steel construction
- Attaches with metal framing screws
- Available in 18, 16, and 13 gauge configurations
- Multiple plate sizes available
- Domestically manufactured
Available Sizes & Weights
| Gauge | Size - Width x Length | Weight Each |
|---|---|---|
| 18 | 1-1/2" x 9" | 0.180 lbs. |
| 18 | 1-1/2" x 12" | 0.250 lbs. |
| 18 | 1-1/2" x 18" | 0.380 lbs. |
| 18 | 1-1/2" x 24" | 0.500 lbs. |
| 18 | 3" x 6" | 0.250 lbs. |
| 18 | 3" x 9" | 0.380 lbs. |
| 18 | 3" x 12" | 0.520 lbs. |
| 18 | 3" x 18" | 0.780 lbs. |
| 16 | 1-1/2" x 9" | 0.240 lbs. |
| 16 | 1-1/2" x 12" | 0.320 lbs. |
| 16 | 1-1/2" x 18" | 0.480 lbs. |
| 16 | 1-1/2" x 24" | 0.640 lbs. |
| 13 | 1-1/2" x 9" | 0.350 lbs. |
| 13 | 1-1/2" x 12" | 0.470 lbs. |
| 13 | 1-1/2" x 18" | 0.700 lbs. |
| 13 | 1-1/2" x 24" | 0.980 lbs. |
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 243G |
| Product Type | FHA Nail Plate |
| Material | Carbon Steel |
| Finish | Electro-Galvanized |
| Available Gauges | 18, 16 & 13 Gauge |
| Installation | Attach with Metal Framing Screws |
| Manufacturing | Domestically Manufactured |
| Ordering | Specify Figure Number, Gauge and Size |
Wood Framing Protection
The Fig. 243G is designed for locations where piping or electrical lines pass through wood framing. The plate provides a protective barrier against penetration from drywall or other fasteners.
Installation
The FHA nail plate attaches to the wood framing with metal framing screws. Select the required gauge and plate size for the installation.
Important Ordering Notes
Specify the figure number, gauge, and required plate size when ordering. Refer to the Empire submittal for the available Fig. 243G size and weight combinations.
Product Documents
Product Questions
What is the Fig. 243G FHA Nail Plate used for?
It is designed to protect piping and electrical lines that pass through wood framing from damage caused by penetration from drywall or other fasteners.
What material and finish does the Fig. 243G use?
The Fig. 243G is manufactured from electro-galvanized carbon steel.
What gauges are available?
The Fig. 243G FHA Nail Plate is available in 18, 16, and 13 gauge configurations.
What sizes are available?
The supplied submittal lists multiple sizes, including 1-1/2" wide plates in lengths from 9" through 24" and selected 3" wide configurations.
How is the Fig. 243G installed?
The plate attaches with metal framing screws.
Is the Fig. 243G domestically manufactured?
Yes. The Empire submittal identifies the nail plate as domestically manufactured.
