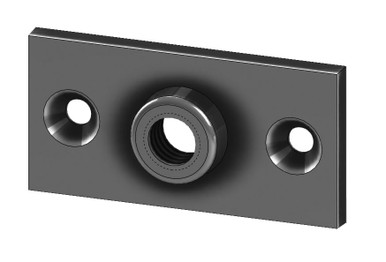

Fig. 41A Hanger Flange Plate
- SKU:
- Fig. 41A
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
*Images are for visual reference only.
Frequently bought together:
Description
Pipe Hangers & Supports / Brackets
Empire Industries
Fig. 41A Hanger Flange Plate
Empire Fig. 41A Hanger Flange Plate is designed for attaching hanger rod to wood beams, ceilings, walls, and floors.
Product Highlights
- Attaches hanger rod to wood beams, ceilings, walls, and floors
- Available in multiple materials and finishes
- 3/8"-16 and 1/2"-13 rod sizes
- #12 screw size
- Stainless steel options recommended for corrosive environments
Available Materials & Finishes
- Plain Malleable Iron (41AB)
- Electro-Galvanized (41AG)
- Chrome Plated (41ACR)
- Copper Epoxy Coated (41ACT)
- Solid Brass (41ASB)
- T-304 Stainless Steel (41ASSI)
- T-316 Stainless Steel (41ASXI)
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 41A |
| Product Type | Hanger Flange Plate |
| Service | Attaching Hanger Rod to Wood Beams, Ceilings, Walls & Floors |
| Rod Sizes | 3/8"-16 & 1/2"-13 |
| Screw Size | #12 |
| Weight | 0.18 lb Each |
Corrosion Protection
Stainless flange plates are recommended where protection from a corrosive environment is required. Empire also notes that COPPER-GARD products provide corrosion protection through an epoxy coating over electro-galvanized material.
Important Ordering Notes
Specify the figure number, finish, and rod size when ordering.
Product Documents
Product Questions
What is the Fig. 41A Hanger Flange Plate used for?
It is designed for attaching hanger rod to wood beams, ceilings, walls, and floors.
What rod sizes are available?
The Fig. 41A is available for 3/8"-16 and 1/2"-13 rod sizes.
Which material is recommended for corrosive environments?
Empire recommends stainless steel flange plates where protection from a corrosive environment is required.
