Fig. 241G Non FHA Nail Plate
- SKU:
- Fig. 241G
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

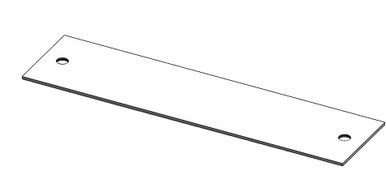

Fig. 241G Non FHA Nail Plate
Empire Fig. 241G Non FHA Nail Plate is designed to protect piping and electrical lines that pass through wood framing from damage caused by penetration from drywall or other fasteners.
The Fig. 241G is manufactured from electro-galvanized carbon steel and attaches with metal framing screws.
Product Highlights
- Designed to protect piping and electrical lines passing through wood framing
- Helps protect concealed lines from penetration by drywall or other fasteners
- Non-FHA protective plate configuration
- Electro-galvanized carbon steel
- 18 gauge construction
- Attaches with metal framing screws
- Available in 1-1/2" x 3" and 1-1/2" x 6" sizes
Protects Piping & Electrical Lines
The Fig. 241G is designed for locations where piping or electrical lines pass through wood framing. The protective plate helps shield these lines from damage due to penetration from drywall or other fasteners.
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 241G |
| Product Type | Non FHA Nail Plate / Protective Plate |
| Material | Carbon Steel |
| Finish | Electro-Galvanized |
| Gauge | 18 Gauge |
| Available Sizes | 1-1/2" x 3" and 1-1/2" x 6" |
| Attachment Method | Metal Framing Screws |
| Ordering | Specify Figure Number, Gauge and Size |
Metal Screw Attachment
The nail plate attaches to the wood framing with metal framing screws. Select the appropriate Fig. 241G size for the installation.
Fig. 241G Sizes & Weights
| Figure | Gauge | Size | Weight Each |
|---|---|---|---|
| 241G | 18 | 1-1/2" x 3" | 0.065 lbs. |
| 241G | 18 | 1-1/2" x 6" | 0.125 lbs. |
Fig. 241G Non-FHA Configuration
The Fig. 241G is the Non-FHA protective plate configuration shown in the Empire submittal. Empire separately identifies the Fig. 243G series as its FHA protective plate configuration.
Important Ordering Notes
Specify the figure number, gauge, and required size when ordering. This listing is for the Fig. 241G Non-FHA protective plate configuration.
Product Documents
Product Questions
What is the Fig. 241G Nail Plate designed to protect?
It is designed to protect piping and electrical lines that pass through wood framing from damage caused by penetration from drywall or other fasteners.
What material and finish does the Fig. 241G use?
The Fig. 241G is manufactured from electro-galvanized carbon steel.
How does the Fig. 241G attach to the framing?
It attaches with metal framing screws.
What sizes are available for the Fig. 241G?
The Empire submittal lists 18 gauge Fig. 241G protective plates in 1-1/2" x 3" and 1-1/2" x 6" sizes.
What is the difference between Fig. 241G and Fig. 243G?
The Empire submittal identifies Fig. 241G as the Non-FHA protective plate series and Fig. 243G as the FHA protective plate series.
