Charman Inc.
Ductile Iron Threaded Tee
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

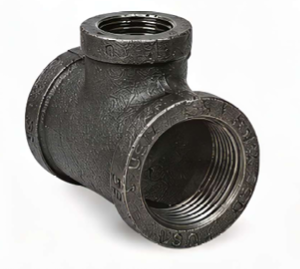

Ductile Iron Threaded Tee
Charman ductile iron threaded tees provide a 90-degree branch connection in compatible threaded piping systems.
Select the required nominal pipe size from the product options above. The selected variation determines the Charman part number, online selling price, net cost, estimated shipping weight, and size-specific product information.
Product Highlights
- Ductile iron construction
- Equal tee configuration
- Three female threaded connections
- Creates a 90° branch from the main piping run
- Designed for threaded piping systems
- Available on this product page in sizes from 1/2" through 2"
- Charman Manufacturing product family
Available Sizes & Packaging
| Charman Part # | Nominal Size | Inner Carton | Master Carton |
|---|---|---|---|
| 620223 | 1/2" | 60 | 120 |
| 620224 | 3/4" | 35 | 70 |
| 620225 | 1" | 20 | 40 |
| 620226 | 1-1/4" | 14 | 28 |
| 620227 | 1-1/2" | 12 | 24 |
| 620228 | 2" | 8 | 16 |
Technical Specifications
| Material | Ductile Iron |
|---|---|
| Product Type | Threaded Pipe Fitting |
| Configuration | Equal Tee |
| Connection Style | Female Threaded |
| Branch Angle | 90° |
| Available Sizes | 1/2" through 2" on this product page |
| Manufacturer | Charman Inc. |
90° Branch Connection
The tee configuration provides three female threaded openings and creates a 90-degree branch from the main piping run. All three openings are the same nominal pipe size for the selected variation, making this fitting suitable for equal-size threaded branch connections.
Common Applications
Industrial & Mechanical
- Threaded piping systems
- Branch piping connections
- Mechanical-room piping
- Maintenance and repair work
Commercial Piping
- Utility piping
- Threaded pipe fabrication
- Equipment piping
- General piping assemblies
Manufacturer Resources
Review the Charman Ductile Iron Threaded Fittings catalog for manufacturer-listed part numbers, sizes, packaging quantities, and product illustrations.
View Charman Ductile Iron Fittings CatalogNeed Help Selecting a Ductile Iron Tee?
Our industrial PVF specialists can help confirm nominal pipe size, branch configuration, threaded connection requirements, service conditions, and product availability.
Frequently Asked Questions
What is a ductile iron tee used for?
A threaded tee creates a 90-degree branch from the main piping run.
Are all three openings the same size?
Yes. These are equal tees, so all three threaded openings are the same nominal size for the selected variation.
What type of connections does this tee have?
This fitting has three female threaded openings for use with compatible male-threaded pipe, nipples, fittings, or equipment connections.
What sizes are available?
This product page includes Charman ductile iron tees in nominal pipe sizes from 1/2" through 2".
How do I choose the correct variation?
Select the nominal pipe size that matches the threaded run and branch components in your piping system.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- The selected variation determines the Charman part number, selling price, estimated weight, and net cost.
- Verify fitting size and equal-tee configuration before ordering.
- Packaging quantities vary by size.
- Confirm pressure, temperature, media compatibility, and applicable installation requirements before use.
