Charman Inc.

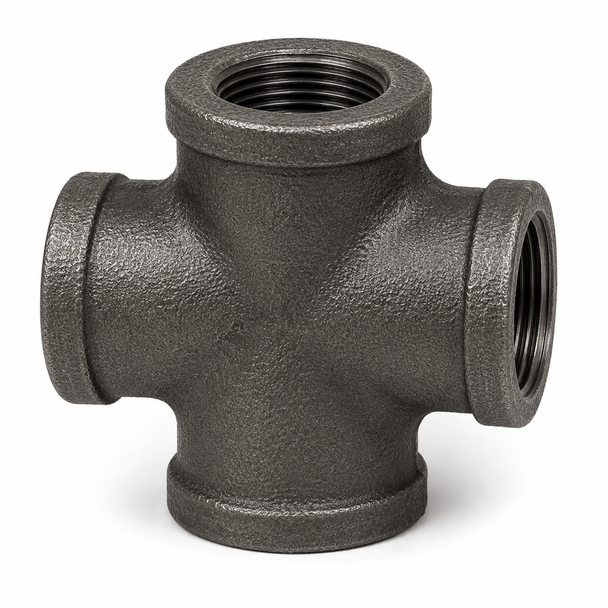

Ductile Iron Threaded Cross
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Ductile Iron Threaded Cross
Charman ductile iron threaded crosses provide four female-threaded openings for creating opposing 90-degree branch connections in compatible threaded piping systems.
Select the required nominal pipe size from the product options above. The selected variation determines the Charman part number, online selling price, net cost, estimated shipping weight, and size-specific product information.
Product Highlights
- Ductile iron construction
- Four-way cross configuration
- Four female threaded connections
- Creates opposing 90° branch connections
- Equal-size openings for the selected variation
- Available in nominal sizes from 1" through 2"
- Charman Manufacturing product family
Available Sizes
| Charman Part # | Nominal Size |
|---|---|
| 620535 | 1" |
| 620536 | 1-1/4" |
| 620537 | 1-1/2" |
| 620538 | 2" |
Technical Specifications
| Material | Ductile Iron |
|---|---|
| Product Type | Threaded Pipe Fitting |
| Configuration | Equal Cross |
| Connection Style | Female Threaded |
| Number of Openings | Four |
| Branch Configuration | Opposing 90° Branches |
| Available Sizes | 1" through 2" |
| Manufacturer | Charman Inc. |
Four-Way Threaded Connection
The cross configuration provides four threaded openings arranged to create two opposing 90-degree branch connections from the main piping run. All four openings are the same nominal size for the selected variation.
Common Applications
Industrial & Mechanical
- Threaded piping systems
- Multiple branch connections
- Mechanical-room piping
- Maintenance and repair work
Commercial Piping
- Utility piping
- Distribution piping
- Threaded pipe fabrication
- General piping assemblies
Manufacturer Resources
Review the Charman Ductile Iron Threaded Fittings catalog for manufacturer product-family information and related ductile iron threaded fitting configurations.
View Charman Ductile Iron Fittings CatalogNeed Help Selecting a Ductile Iron Cross?
Our industrial PVF specialists can help confirm nominal pipe size, branch configuration, threaded connection requirements, service conditions, and product availability.
Frequently Asked Questions
What is a ductile iron cross used for?
A threaded cross creates two opposing 90-degree branch connections from a main piping run.
How many connections does this fitting have?
This fitting has four female-threaded openings.
Are all four openings the same size?
Yes. This product is an equal cross, so all four openings are the same nominal size for the selected variation.
What sizes are available?
This Charman ductile iron cross family includes 1", 1-1/4", 1-1/2", and 2" nominal sizes.
How is a cross different from a tee?
A tee provides one 90-degree branch from a main run, while a cross provides two opposing 90-degree branch connections.
How do I choose the correct variation?
Select the nominal pipe size that matches the threaded components being connected to all four openings.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- The selected variation determines the Charman part number, selling price, estimated weight, and net cost.
- Verify fitting size and equal-cross configuration before ordering.
- All four openings are the same nominal size for each variation.
- Confirm pressure, temperature, media compatibility, and applicable installation requirements before use.
