Charman Inc.
Ductile Iron Threaded Reducing Tee
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

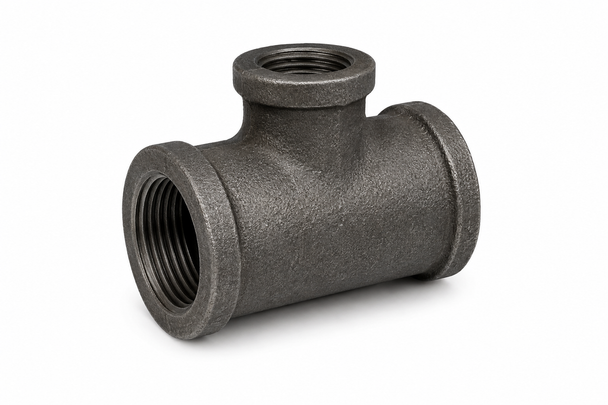

Ductile Iron Threaded Reducing Tee
Charman ductile iron threaded reducing tees provide a 90-degree branch connection while accommodating different nominal connection sizes within a threaded piping system.
Select the exact three-size configuration from the product options above. The selected variation determines the Charman part number, online selling price, net cost, estimated shipping weight, and size-specific product information.
Product Highlights
- Ductile iron construction
- Reducing tee configuration
- Three female threaded connections
- Provides a 90° branch connection
- Multiple run and branch size combinations
- Designed for threaded piping systems
- Large selection of reducing configurations
- Charman Manufacturing product family
Available Reducing Tee Configurations
| Charman Part # | Size Configuration |
|---|---|
| 6202416 | 3/4" x 3/4" x 1" |
| 6202420 | 1" x 1/2" x 1" |
| 6202422 | 1" x 3/4" x 3/4" |
| 6202423 | 1" x 3/4" x 1" |
| 6202426 | 1" x 1" x 1/2" |
| 6202427 | 1" x 1" x 3/4" |
| 6202428 | 1" x 1" x 1-1/4" |
| 6202429 | 1" x 1" x 1-1/2" |
| 6202434 | 1-1/4" x 1/2" x 1-1/4" |
| 6202438 | 1-1/4" x 3/4" x 1-1/4" |
| 6202439 | 1-1/4" x 1" x 1/2" |
| 6202440 | 1-1/4" x 1" x 3/4" |
| 6202441 | 1-1/4" x 1" x 1" |
| 6202442 | 1-1/4" x 1" x 1-1/4" |
| 6202443 | 1-1/4" x 1" x 1-1/2" |
| 6202446 | 1-1/4" x 1-1/4" x 1/2" |
| 6202447 | 1-1/4" x 1-1/4" x 3/4" |
| 6202448 | 1-1/4" x 1-1/4" x 1" |
| 6202449 | 1-1/4" x 1-1/4" x 1-1/2" |
| 6202450 | 1-1/4" x 1-1/4" x 2" |
| 6202453 | 1-1/2" x 1/2" x 1-1/4" |
| 6202454 | 1-1/2" x 1/2" x 1-1/2" |
| 6202458 | 1-1/2" x 3/4" x 1-1/4" |
| 6202459 | 1-1/2" x 3/4" x 1-1/2" |
| 6202460 | 1-1/2" x 1" x 1/2" |
| 6202461 | 1-1/2" x 1" x 3/4" |
| 6202462 | 1-1/2" x 1" x 1" |
| 6202463 | 1-1/2" x 1" x 1-1/4" |
| 6202464 | 1-1/2" x 1" x 1-1/2" |
| 6202465 | 1-1/2" x 1-1/4" x 1/2" |
| 6202466 | 1-1/2" x 1-1/4" x 3/4" |
| 6202467 | 1-1/2" x 1-1/4" x 1" |
| 6202468 | 1-1/2" x 1-1/4" x 1-1/4" |
| 6202469 | 1-1/2" x 1-1/4" x 1-1/2" |
| 6202470 | 1-1/2" x 1-1/4" x 2" |
| 6202471 | 1-1/2" x 1-1/2" x 1/2" |
| 6202472 | 1-1/2" x 1-1/2" x 3/4" |
| 6202473 | 1-1/2" x 1-1/2" x 1" |
| 6202474 | 1-1/2" x 1-1/2" x 1-1/4" |
| 6202475 | 1-1/2" x 1-1/2" x 2" |
| 6202481 | 2" x 1" x 2" |
| 6202485 | 2" x 1-1/4" x 2" |
| 6202486 | 2" x 1-1/2" x 1/2" |
| 6202487 | 2" x 1-1/2" x 3/4" |
| 6202488 | 2" x 1-1/2" x 1" |
| 6202489 | 2" x 1-1/2" x 1-1/4" |
| 6202490 | 2" x 1-1/2" x 1-1/2" |
| 6202491 | 2" x 1-1/2" x 2" |
| 6202492 | 2" x 2" x 1/2" |
| 6202493 | 2" x 2" x 3/4" |
| 6202494 | 2" x 2" x 1" |
| 6202495 | 2" x 2" x 1-1/4" |
| 6202496 | 2" x 2" x 1-1/2" |
Technical Specifications
| Material | Ductile Iron |
|---|---|
| Product Type | Threaded Reducing Fitting |
| Configuration | Reducing Tee |
| Connection Style | Female Threaded |
| Number of Connections | Three |
| Branch Angle | 90° |
| Function | Branch Connection with Size Transition |
| Manufacturer | Charman Inc. |
Understanding the Three-Size Configuration
Reducing tees are identified by three nominal connection sizes. Because the run and branch dimensions can vary by configuration, select the exact three-size combination required for the piping assembly rather than selecting only by the largest connection size.
Branch Connection with Size Transition
A reducing tee combines a 90-degree branch connection with multiple nominal connection sizes in one fitting. This allows different threaded pipe sizes to be connected at the run and branch without adding separate reducing fittings.
Common Applications
Industrial & Mechanical
- Threaded branch piping
- Equipment connections
- Mechanical-room piping
- Maintenance and repair work
Reducing Branch Systems
- Pipe-size transitions
- Utility piping
- Distribution piping
- General threaded piping assemblies
Manufacturer Resources
Review the Charman Ductile Iron Threaded Fittings catalog for manufacturer-listed reducing tee configurations, part numbers, sizes, and product illustrations.
View Charman Ductile Iron Fittings CatalogNeed Help Selecting a Ductile Iron Reducing Tee?
Our industrial PVF specialists can help confirm all three nominal connection sizes, branch configuration, threaded requirements, service conditions, and product availability.
Frequently Asked Questions
What is a ductile iron reducing tee used for?
A reducing tee creates a 90-degree branch connection while allowing different nominal pipe sizes to be connected through the same fitting.
Why are three sizes listed?
A tee has three connection openings. The three-size designation identifies the nominal connection sizes of the specific reducing tee configuration.
Are all three connections threaded?
Yes. These reducing tees use female threaded connections for compatible male-threaded pipe, nipples, fittings, or equipment connections.
How is a reducing tee different from an equal tee?
An equal tee uses the same nominal size at all three openings. A reducing tee uses different connection sizes within the fitting.
How do I choose the correct variation?
Select the exact three-size configuration required for the run and branch connections in your piping system.
Important Ordering Notes
- Select the exact three-size configuration before adding the product to your cart.
- Do not select a reducing tee using only the largest connection size.
- The selected variation determines the Charman part number, selling price, estimated shipping weight, and net cost.
- Verify all three nominal threaded connection sizes before ordering.
- Confirm pressure, temperature, media compatibility, and applicable installation requirements before use.
