Ductile Iron Threaded 90° Reducing Elbow
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Ductile Iron Threaded 90° Reducing Elbow

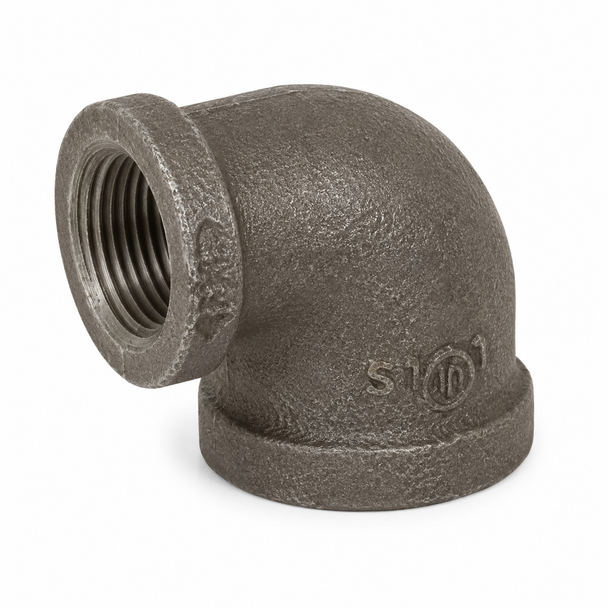

Charman ductile iron threaded 90° reducing elbows provide a 90-degree directional change while transitioning between two different nominal pipe sizes in compatible threaded piping systems.
Select the required reducing size from the product options above. The selected variation determines the Charman part number, online selling price, net cost, estimated shipping weight, and size-specific product information.
Product Highlights
- Ductile iron construction
- 90° reducing elbow configuration
- Female threaded connections
- Changes direction while reducing pipe size
- Designed for threaded piping systems
- Multiple reducing configurations from 3/4" x 1/2" through 2" x 1-1/2"
- Charman Manufacturing product family
Available Sizes & Packaging
| Charman Part # | Reducing Size | Inner Carton | Master Carton |
|---|---|---|---|
| 620147 | 3/4" x 1/2" | 40 | 160 |
| 620148 | 1" x 1/2" | 50 | 100 |
| 620149 | 1" x 3/4" | 50 | 100 |
| 620150 | 1-1/4" x 1/2" | 40 | 80 |
| 620151 | 1-1/4" x 3/4" | 30 | 60 |
| 620152 | 1-1/4" x 1" | 20 | 40 |
| 620153 | 1-1/2" x 1/2" | 30 | 60 |
| 620154 | 1-1/2" x 3/4" | 20 | 40 |
| 620155 | 1-1/2" x 1" | 20 | 40 |
| 620156 | 1-1/2" x 1-1/4" | 15 | 30 |
| 620157 | 2" x 1/2" | 20 | 40 |
| 620158 | 2" x 3/4" | 10 | 36 |
| 620159 | 2" x 1" | 14 | 28 |
| 620160 | 2" x 1-1/4" | 10 | 20 |
| 620161 | 2" x 1-1/2" | 10 | 20 |
Technical Specifications
| Material | Ductile Iron |
|---|---|
| Product Type | Threaded Pipe Fitting |
| Configuration | 90° Reducing Elbow |
| Connection Style | Female Threaded |
| Function | Directional Change with Size Reduction |
| Manufacturer | Charman Inc. |
90° Directional Change with Reduction
The reducing elbow combines a 90-degree change in piping direction with a transition between two different nominal pipe sizes. This configuration can reduce the number of separate fittings required where both a directional change and size reduction are needed.
Common Applications
Industrial & Mechanical
- Threaded piping systems
- Equipment connections
- Branch and transition piping
- Maintenance and repair work
Commercial Piping
- Utility piping
- Pipe-size transitions
- Directional changes in reduced pipe runs
- General threaded piping assemblies
Manufacturer Resources
Review the Charman Ductile Iron Threaded Fittings catalog for manufacturer-listed reducing sizes, packaging quantities, part numbers, and product illustrations.
View Charman Ductile Iron Fittings CatalogNeed Help Selecting a Ductile Iron Reducing 90° Elbow?
Our industrial PVF specialists can help confirm both connection sizes, threaded requirements, service conditions, and product availability.
Frequently Asked Questions
What is a ductile iron 90° reducing elbow used for?
It changes piping direction by approximately 90 degrees while connecting two different nominal pipe sizes.
Are both connections threaded?
Yes. This fitting uses female threaded connections for compatible male-threaded piping components.
How do I read the size?
The first size identifies the larger nominal connection and the second size identifies the reduced connection.
How do I choose the correct variation?
Select the reducing size combination that matches the two threaded piping components being connected.
Important Ordering Notes
- Select the exact reducing size combination before adding the product to your cart.
- The selected variation determines the Charman part number, selling price, estimated weight, and net cost.
- Verify both nominal connection sizes and the 90° elbow configuration before ordering.
- Packaging quantities vary by configuration.
- Confirm pressure, temperature, media compatibility, and applicable installation requirements before use.
