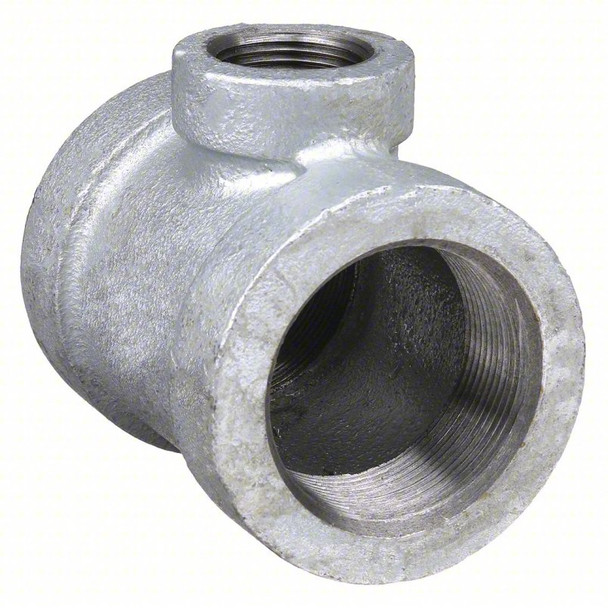

300# Extra Heavy Galvanized Malleable Iron Reducing Tee
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
300# Extra Heavy Galvanized Malleable Iron Reducing Tee
300# extra heavy galvanized malleable iron reducing tees create a 90-degree reduced branch connection in a threaded piping system. The two equal-size female NPT run openings and smaller female NPT branch opening provide a durable transition for demanding commercial, industrial, mechanical, fire-protection, maintenance, and repair applications where corrosion resistance and a galvanized finish are required.
Select the required size configuration from the product options above. Sizes are listed as run x run x branch. The selected variation determines the ASC item number, online selling price, estimated weight, net cost, and other configuration-specific product information.
Product Highlights
- 300# / Class 300 extra heavy galvanized malleable iron construction
- Female NPT threaded connections on all three openings
- Two equal-size run openings with a smaller branch opening
- Creates a reduced 90-degree branch connection
- Sizes are listed as run x run x branch
- Galvanized finish provides added corrosion resistance
- Designed for demanding threaded piping applications
- Manufactured to ASME B16.3 requirements
- Threads conform to ASME B1.20.1
- Malleable iron material conforms to ASTM A197
- UL Listed
- ASC Figure 3164R
- Available in multiple reducing configurations
Technical Specifications
| Material | Galvanized Malleable Iron |
|---|---|
| Pressure Class | 300# / Class 300 / Extra Heavy |
| Connection | Female NPT x Female NPT x Female NPT |
| Fitting Type | Reducing Tee |
| Function | Reduced 90-Degree Branch Connection |
| Size Order | Run x Run x Branch |
| Thread Standard | ASME B1.20.1 |
| Dimensional Standard | ASME B16.3 |
| Material Standard | ASTM A197 |
| Finish | Galvanized |
| Listing | UL Listed |
| Manufacturer | ASC |
| Figure Number | 3164R |
| Available Configurations | 3/4" x 3/4" x 1/2" through 3" x 3" x 2" |
How a Threaded Reducing Tee Works
A threaded reducing tee has three female NPT openings arranged with two equal-size inline run connections and one smaller branch connection positioned at 90 degrees. Compatible male-threaded pipe, pipe nipples, valves, or fittings thread into each opening, allowing the main line to continue through the run while transitioning to a smaller branch line.
Common Applications
Commercial and Mechanical Systems
- Mechanical-room piping
- Water and utility piping
- Compressed-air systems
- Equipment and valve connections
- Pump and equipment piping
- General repair and maintenance
Industrial and Fire-Protection Service
- Industrial process piping
- Fire-protection piping where approved
- Oil and petroleum piping
- Compatible gas service
- Approved steam service
- Galvanized piping installations
Product Resources
Review the ASC threaded fittings catalog for dimensions, weights, standards, and additional product information before installation.
Need Help Selecting a 300# Galvanized Malleable Iron Reducing Tee?
Our industrial PVF specialists can help confirm the required run size, branch size, pressure class, thread type, material compatibility, service conditions, and product availability.
Frequently Asked Questions
What is a 300# galvanized malleable iron reducing tee used for?
It creates a 90-degree branch connection from the main threaded piping run while reducing to a smaller branch size.
How are the reducing tee sizes listed?
Sizes are listed as run x run x branch. The first two dimensions identify the equal-size inline run openings, and the third dimension identifies the smaller branch opening.
Does this reducing tee have female threads on all three openings?
Yes. ASC Figure 3164R has female NPT threaded connections on both run openings and the branch opening.
What is the benefit of the galvanized finish?
The galvanized finish provides added corrosion resistance compared with an unfinished black malleable iron fitting.
What pressure class is this fitting?
This fitting is manufactured as a 300# / Class 300 extra heavy threaded malleable iron fitting.
What size configurations are available?
Available product variations range from 3/4" x 3/4" x 1/2" through 3" x 3" x 2".
What standards and listings apply?
The fitting conforms to ASME B16.3, ASTM A197, and ASME B1.20.1 requirements. ASC lists its Class 300 malleable iron fittings as UL Listed.
Should thread sealant be used during installation?
Use an approved pipe-thread sealant or thread tape selected for the piping media, pressure, temperature, applicable codes, and manufacturer recommendations.
Important Ordering Notes
- Select the required size configuration before adding the product to your cart.
- Sizes are listed as run x run x branch.
- This reducing tee has female NPT threaded connections on all three openings.
- The selected variation determines the ASC item number, online selling price, estimated weight, and net cost.
- Confirm the nominal sizes and thread type of all three mating components before ordering.
- Confirm that the selected run and branch sizes are appropriate for the required piping layout.
- Confirm pressure, temperature, media compatibility, and application requirements before installation.
- Use an approved thread sealant suitable for the piping media and operating conditions.
- Avoid overtightening, which may damage the fitting or mating threads.
- Support connected piping properly to avoid excessive mechanical stress on the fitting.
- Installation should be completed by qualified personnel and comply with applicable codes and standards.
