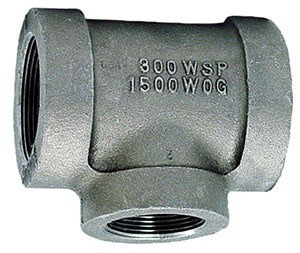

300# Extra Heavy Black Malleable Iron Reducing Tee
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
300# Extra Heavy Black Malleable Iron Reducing Tee
300# extra heavy black malleable iron reducing tees create a 90-degree branch connection where the branch outlet is smaller than the two equal-size run openings. Three female NPT connections allow compatible male-threaded pipe, pipe nipples, valves, or fittings to be joined in demanding commercial, industrial, mechanical, fire-protection, maintenance, and repair applications.
Select the required configuration from the product options above. Sizes are read end x end x middle. The selected variation determines the ASC item number, UPC, online selling price, weight, net cost, and other configuration-specific product information.
Product Highlights
- 300# / Class 300 extra heavy black malleable iron construction
- Three female NPT threaded connections
- Two equal-size run openings with a smaller branch outlet
- Creates a 90-degree reducing branch connection
- Sizes are read end x end x middle
- Manufactured to ASME B16.3 requirements
- Threads conform to ASME B1.20.1
- Malleable iron material conforms to ASTM A197
- UL Listed
- ASC Figure 3164R
- Available in multiple reducing configurations
Technical Specifications
| Material | Black Malleable Iron |
|---|---|
| Pressure Class | 300# / Class 300 / Extra Heavy |
| Connection | Female NPT x Female NPT x Female NPT |
| Configuration | Equal Run x Reduced Branch |
| Size Reading | End x End x Middle |
| Branch Angle | 90 Degrees |
| Thread Standard | ASME B1.20.1 |
| Dimensional Standard | ASME B16.3 |
| Material Standard | ASTM A197 |
| Finish | Black |
| Listing | UL Listed |
| Manufacturer | ASC |
| Figure Number | 3164R |
How a Reducing Tee Works
A reducing tee has two aligned female NPT openings that form the main run and a smaller female NPT opening positioned at 90 degrees to create the branch. The fitting allows the main line to continue at one nominal size while transitioning the branch to a smaller nominal pipe size.
How to Read the Size
Reducing tee sizes are read end x end x middle. For example, a 2" x 2" x 1" reducing tee has two 2" run openings and one 1" branch opening located in the middle.
Common Applications
Commercial and Mechanical Systems
- Reducing branch lines in threaded piping
- Commercial plumbing systems
- Mechanical-room piping
- Equipment and valve connections
- Water and utility piping
- General repair and maintenance
Industrial and Fire-Protection Service
- Industrial process piping
- Fire-protection piping where approved
- Compressed-air systems
- Oil and petroleum piping
- Compatible gas service
- Approved low-pressure steam service
Product Resources
Review the ASC malleable iron threaded fittings catalog for dimensions, weights, standards, and additional product information before installation.
Need Help Selecting a 300# Black Malleable Iron Reducing Tee?
Our industrial PVF specialists can help confirm the required run size, branch size, pressure class, thread type, material compatibility, service conditions, and product availability.
Frequently Asked Questions
What is a 300# black malleable iron reducing tee used for?
It creates a 90-degree branch connection where the branch line is smaller than the two equal-size run openings.
How are reducing tee sizes read?
Sizes are read end x end x middle. The first two dimensions identify the equal-size run openings, and the third dimension identifies the reduced branch opening.
Does this tee have female threads on all three openings?
Yes. All three openings have female NPT threads for connection to compatible male-threaded components.
What pressure class is this fitting?
This fitting is manufactured as a 300# / Class 300 extra heavy threaded malleable iron fitting.
What standards and listings apply?
The fitting conforms to ASME B16.3, ASTM A197, and ASME B1.20.1 requirements. ASC lists its Class 300 malleable iron fittings as UL Listed.
Should thread sealant be used during installation?
Use an approved pipe-thread sealant or thread tape selected for the piping media, pressure, temperature, applicable codes, and manufacturer recommendations.
Important Ordering Notes
- Select the required reducing configuration before adding the product to your cart.
- Sizes are read end x end x middle.
- The first two dimensions identify the equal-size run openings.
- The third dimension identifies the reduced middle branch opening.
- The selected variation determines the ASC item number, UPC, online selling price, weight, and net cost.
- Confirm the nominal sizes and thread types of all mating components before ordering.
- Confirm pressure, temperature, media compatibility, and application requirements before installation.
- Use an approved thread sealant suitable for the piping media and operating conditions.
- Support connected piping properly to avoid excessive mechanical stress on the fitting.
- Installation should be completed by qualified personnel and comply with applicable codes and standards.
