300# Extra Heavy Galvanized Malleable Iron Tee
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
300# Extra Heavy Galvanized Malleable Iron Tee
300# extra heavy galvanized malleable iron tees create a 90-degree branch connection in a threaded piping system. The three female NPT openings provide a durable straight-through run with a perpendicular branch for demanding commercial, industrial, mechanical, fire-protection, maintenance, and repair applications where corrosion resistance and a galvanized finish are required.
Select the required nominal pipe size from the product options above. The selected variation determines the ASC item number, online selling price, estimated weight, net cost, and other size-specific product information.
Product Highlights
- 300# / Class 300 extra heavy galvanized malleable iron construction
- Female NPT threaded connections on all three openings
- Creates a 90-degree branch from a straight threaded piping run
- Equal-size run and branch configuration
- Galvanized finish provides added corrosion resistance
- Designed for demanding threaded piping applications
- Manufactured to ASME B16.3 requirements
- Threads conform to ASME B1.20.1
- Malleable iron material conforms to ASTM A197
- UL Listed
- ASC Figure 3164
- Available in nominal pipe sizes from 1/4" through 4"
Technical Specifications
| Material | Galvanized Malleable Iron |
|---|---|
| Pressure Class | 300# / Class 300 / Extra Heavy |
| Connection | Female NPT x Female NPT x Female NPT |
| Fitting Type | Equal Tee |
| Function | 90-Degree Branch Connection |
| Thread Standard | ASME B1.20.1 |
| Dimensional Standard | ASME B16.3 |
| Material Standard | ASTM A197 |
| Finish | Galvanized |
| Listing | UL Listed |
| Manufacturer | ASC |
| Figure Number | 3164 |
| Available Sizes | 1/4" through 4" |
How a Threaded Tee Works
A threaded tee has three female NPT openings arranged with two inline run connections and one branch connection positioned at 90 degrees. Compatible male-threaded pipe, pipe nipples, valves, or fittings thread into each opening, allowing flow to continue through the main run while branching into a perpendicular line.
Common Applications
Commercial and Mechanical Systems
- Mechanical-room piping
- Water and utility piping
- Compressed-air systems
- Equipment and valve connections
- Pump and equipment piping
- General repair and maintenance
Industrial and Fire-Protection Service
- Industrial process piping
- Fire-protection piping where approved
- Oil and petroleum piping
- Compatible gas service
- Approved steam service
- Galvanized piping installations
Product Resources

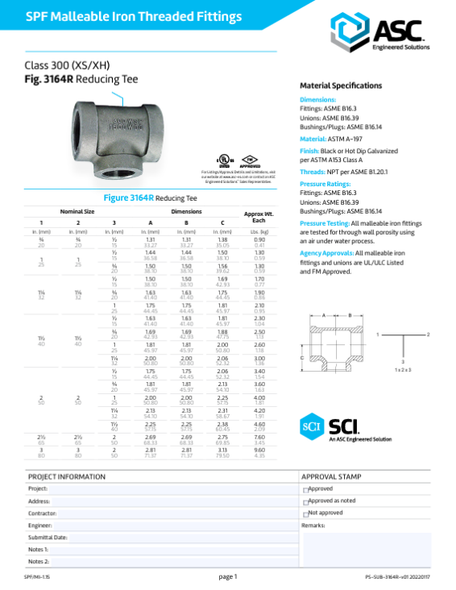

Review the ASC threaded fittings catalog for dimensions, weights, standards, and additional product information before installation.
Need Help Selecting a 300# Galvanized Malleable Iron Tee?
Our industrial PVF specialists can help confirm the required pipe size, pressure class, thread type, material compatibility, service conditions, and product availability.
Frequently Asked Questions
What is a 300# galvanized malleable iron tee used for?
It creates a 90-degree branch connection from the straight run of a compatible threaded piping system.
Does this tee have female threads on all three openings?
Yes. ASC Figure 3164 has female NPT threaded connections on both run openings and the branch opening.
Are all three openings the same nominal size?
Yes. This is an equal tee, so the run and branch openings are the same nominal pipe size.
What is the benefit of the galvanized finish?
The galvanized finish provides added corrosion resistance compared with an unfinished black malleable iron fitting.
What pressure class is this fitting?
This fitting is manufactured as a 300# / Class 300 extra heavy threaded malleable iron fitting.
What sizes are available?
Available product variations range from 1/4" through 4" nominal pipe size.
What standards and listings apply?
The fitting conforms to ASME B16.3, ASTM A197, and ASME B1.20.1 requirements. ASC lists its Class 300 malleable iron fittings as UL Listed.
Should thread sealant be used during installation?
Use an approved pipe-thread sealant or thread tape selected for the piping media, pressure, temperature, applicable codes, and manufacturer recommendations.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- This equal tee has female NPT threaded connections on all three openings.
- The selected variation determines the ASC item number, online selling price, estimated weight, and net cost.
- Confirm the nominal size and thread type of all three mating components before ordering.
- Confirm that an equal-size tee and 90-degree branch configuration are appropriate for the required piping layout.
- Confirm pressure, temperature, media compatibility, and application requirements before installation.
- Use an approved thread sealant suitable for the piping media and operating conditions.
- Avoid overtightening, which may damage the fitting or mating threads.
- Support connected piping properly to avoid excessive mechanical stress on the fitting.
- Installation should be completed by qualified personnel and comply with applicable codes and standards.
