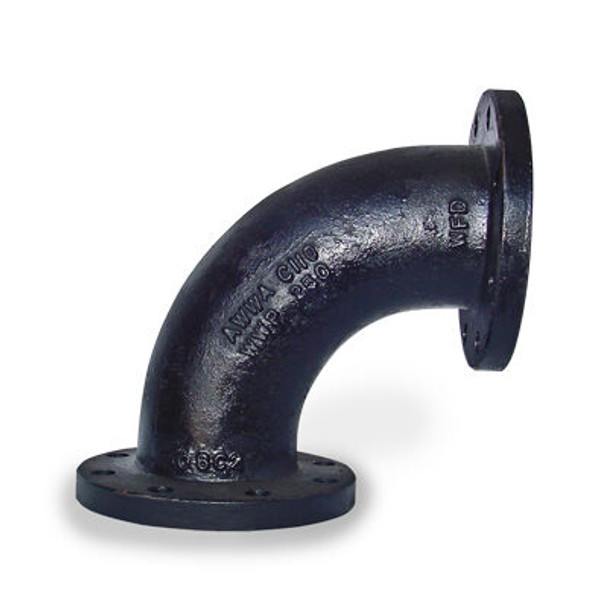

150 lb. Ductile Iron Flanged L/R 90 Elbow
- SKU:
- 38LE1
- Availability:
- Usually Same Day
- Weight:
- 0.00 LBS
Description
150 lb. Ductile Iron Flanged L/R 90 Elbow
ASC / SCI FIG 38LE1 150 lb. Ductile Iron Flanged L/R 90 Elbow provides a long-radius 90-degree directional change for compatible flanged piping systems.
The long-radius (long sweep) design provides a more gradual change in direction than a standard 90° elbow. FIG 38LE1 is manufactured from ductile iron conforming to ASTM A536, with applicable flanged fitting dimensions conforming to ASME B16.42 and ANSI/AWWA C110/A21.10.
Product Highlights
- ASC / SCI FIG 38LE1
- Long-radius 90° elbow
- Ductile iron construction
- Flanged end connections
- UL Listed through 12"
- Galvanizing available upon request
Technical Specifications
| Product Type | Flanged Long Radius 90° Elbow |
|---|---|
| Brand | ASC / SCI |
| Figure | 38LE1 |
| Configuration | Long Radius / Long Sweep 90° Elbow |
| Connection Type | Flanged x Flanged |
| Material | Ductile Iron |
| Material Standard | ASTM A536 |
| Flanged Fitting Standard | ASME B16.42 |
| Waterworks Standard | ANSI/AWWA C110/A21.10 |
| Listing | UL Listed Through 12" |
| Optional Finish | Galvanizing Available Upon Request |
Construction Details
FIG 38LE1 uses a long-radius 90-degree elbow configuration to provide a gradual change in piping direction while maintaining flanged connections at both ends.
The fitting is manufactured from ductile iron conforming to ASTM A536. Applicable SCI flanged fitting dimensions conform to ASME B16.42 and ANSI/AWWA C110/A21.10.
The long-sweep profile can be useful where piping layout permits a larger turning radius. Galvanizing is available upon request when an alternate protective finish is required.
Design & Typical Applications
Long Radius Design
- 90-degree directional change
- Long-sweep flow path
- Flanged end connections
- Ductile iron construction
- Serviceable bolted joints
Typical Applications
- Water distribution systems
- Industrial piping
- Mechanical piping systems
- Pump and valve piping
- Compatible utility systems
Installation & Selection Considerations
- Confirm the required flange size.
- Allow for the long-radius profile.
- Use compatible flange gaskets.
- Align mating flanges properly.
- Confirm system service requirements.
Use the supplied flange specifications and SCI Ductile Iron Flanged Fittings catalog to review flange information, FIG 38LE1 product details, material requirements, and selection information.
Need Help Selecting a Ductile Iron Flanged L/R 90 Elbow?
Need help confirming flange size, long-radius configuration, material requirements, gasket selection, or compatibility with your piping system? The GetPipe.com Team can help.
Frequently Asked Questions
What is the figure number for this long-radius 90° elbow?
The ASC / SCI Ductile Iron Flanged L/R 90 Elbow is FIG 38LE1.
What does L/R mean in the product name?
L/R means long radius. The elbow uses a longer sweep through the 90-degree directional change.
How does a long-radius elbow differ from a standard 90° elbow?
A long-radius elbow uses a more gradual turning profile than a standard-radius 90-degree elbow.
What connections does FIG 38LE1 use?
FIG 38LE1 uses flanged connections on both ends for joining compatible flanged piping components.
What material is FIG 38LE1 made from?
FIG 38LE1 is manufactured from ductile iron conforming to ASTM A536.
What standards apply to this flanged elbow?
Applicable SCI flanged fitting dimensions conform to ASME B16.42 and ANSI/AWWA C110/A21.10.
Is this long-radius elbow UL Listed?
SCI identifies its flanged fitting family as UL Listed through 12 inches.
What should I confirm before ordering?
Confirm flange size, long-radius configuration, available installation space, gasket requirements, and intended system service.
Important Ordering & Installation Notes
- Confirm the required flange size.
- Verify the long-radius configuration.
- Use compatible flange gaskets.
- Allow adequate installation space.
- Confirm intended system service.
