150# Black Malleable Iron Tee
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

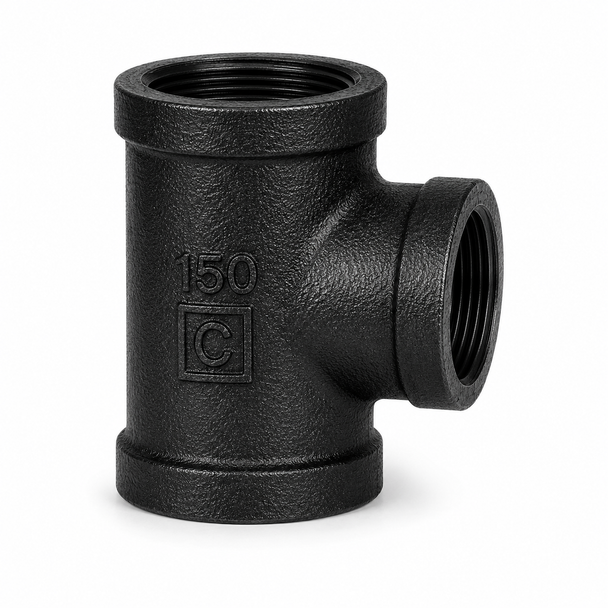

150# Black Malleable Iron Tee
150# black malleable iron tees connect three male-threaded pipes, pipe nipples, or compatible fittings of the same nominal size. The three female NPT openings form a straight run with a 90-degree branch, making these tees suitable for dividing, combining, or extending flow in threaded piping systems.
Select the required nominal pipe size from the product options above. The selected variation determines the Charman item number, online selling price, weight, cost, and other size-specific product information.
Product Highlights
- 150# Class black malleable iron construction
- Three equal-size female NPT threaded connections
- Straight run with a 90-degree branch outlet
- Designed to connect three male-threaded pipe ends
- Durable black finish
- Compatible with standard threaded black steel pipe and pipe nipples
- Manufactured for commercial and industrial threaded piping systems
- Available in nominal pipe sizes from 1/8" through 6"
- Suitable for installation, maintenance, repair, and fabrication applications
Technical Specifications
| Material | Black Malleable Iron |
|---|---|
| Pressure Class | 150# / Class 150 |
| Connection | Female NPT x Female NPT x Female NPT |
| Connection Sizes | Three Equal-Size Connections |
| Branch Angle | 90 Degrees |
| Thread Standard | ASME B1.20.1 |
| Dimensional Standard | ANSI/ASME B16.3 |
| Finish | Black |
| Fitting Type | Standard Threaded Pipe Tee |
| Manufacturer | Charman Manufacturing |
| Available Sizes | 1/8" through 6" |
How a Pipe Tee Works
A threaded pipe tee has two aligned female NPT openings that form the main run and a third female NPT opening positioned at 90 degrees to create the branch. Male-threaded pipe, pipe nipples, valves, or compatible fittings are threaded into the three openings to divide flow, combine flow, or add a branch connection.
Common Applications
Plumbing and Mechanical Systems
- Creating branch lines in threaded piping
- Mechanical-room piping
- Black steel pipe installations
- Equipment and appliance connections
- Water-distribution piping
- General repair and maintenance
Industrial and Utility Service
- Industrial process piping
- Compressed-air systems
- Natural-gas piping
- Oil and petroleum piping
- Fire-protection piping
- Approved low-pressure steam service
Product Resources
Review the Charman product catalog, Class 150 specifications, and manufacturer warranty information before installation.
Need Help Selecting a Black Malleable Iron Tee?
Our industrial PVF specialists can help confirm the required pipe size, pressure class, thread type, branch configuration, material compatibility, application requirements, and product availability.
Frequently Asked Questions
What is a black malleable iron tee used for?
A black malleable iron tee is used to create a 90-degree branch connection in a threaded piping system, allowing flow to be divided, combined, or redirected through three connected pipe runs.
Does this tee have female threads on all three openings?
Yes. All three openings have female NPT threads for connection to compatible male-threaded pipe, pipe nipples, valves, or fittings.
Are all three openings the same nominal pipe size?
Yes. This is a standard equal-size tee. Select a reducing tee when the branch or run requires a different nominal pipe size.
What pressure class is this fitting?
This black malleable iron tee is manufactured as a 150# or Class 150 threaded fitting.
What sizes are available?
Available product variations range from 1/8" through 6" nominal pipe size. Select the required size from the product options above.
Can this tee be used with black steel pipe nipples?
Yes. It is designed for compatible male NPT-threaded black steel pipe, pipe nipples, valves, and other approved threaded components.
Can it be used for gas, water, oil, air, or steam?
It may be used in compatible gas, water, oil, compressed-air, steam, and general-service systems when the application remains within applicable pressure, temperature, media, code, and manufacturer requirements.
Should thread sealant be used?
Use an approved pipe-thread sealant or thread tape on all male-threaded connections, selected for the piping media, pressure, temperature, applicable codes, and manufacturer recommendations.
How is a standard tee different from a reducing tee?
A standard tee has three equal-size connections. A reducing tee has at least one connection that is a different nominal pipe size.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- The selected variation determines the Charman item number, price, weight, and cost.
- This is an equal-size tee with three female NPT connections.
- Confirm the nominal size and thread type of all mating components before ordering.
- Confirm that a 90-degree branch connection is appropriate for the piping layout.
- Use an approved thread sealant suitable for the piping media and operating conditions.
- Confirm pressure, temperature, media compatibility, and application requirements before installation.
- Support connected piping properly to avoid excessive mechanical stress on the fitting.
- Installation should be completed by qualified personnel and comply with applicable codes and standards.
- Manufacturer warranty coverage is subject to the terms, limitations, and exclusions in the linked warranty document.
