Charman Inc.

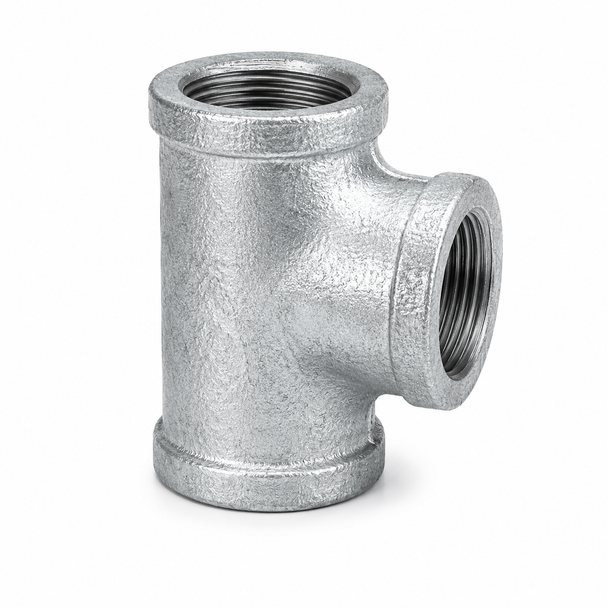

150# Galvanized Malleable Iron Tee
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
150# Galvanized Malleable Iron Tee
150# galvanized malleable iron tees create a 90-degree branch connection in threaded piping systems. All three openings are equal-size female NPT connections, allowing the fitting to divide one pipe run into two directions or combine two threaded lines into one.
Select the required nominal pipe size from the product options above. The selected variation determines the Charman item number, online selling price, weight, cost, and other size-specific product information.
Product Highlights
- 150# Class galvanized malleable iron construction
- Three equal-size female NPT threaded openings
- Creates a 90-degree branch connection
- Suitable for dividing or combining threaded pipe runs
- Galvanized finish provides added corrosion resistance
- Compatible with galvanized steel pipe and threaded pipe nipples
- Available in nominal pipe sizes from 1/8" through 6"
- Suitable for commercial, industrial, plumbing, maintenance, and repair applications
Technical Specifications
| Material | Galvanized Malleable Iron |
|---|---|
| Pressure Class | 150# / Class 150 |
| Connection | Female NPT x Female NPT x Female NPT |
| Configuration | Equal Tee |
| Branch Angle | 90 Degrees |
| Thread Standard | ASME B1.20.1 |
| Dimensional Standard | ANSI/ASME B16.3 |
| Finish | Galvanized |
| Fitting Type | Threaded Pipe Tee |
| Manufacturer | Charman Manufacturing |
| Available Sizes | 1/8" through 6" |
How a Threaded Tee Works
The two straight-through female NPT openings continue the main pipe run, while the third female NPT opening creates a 90-degree branch. Because all three openings are the same nominal size, this fitting is commonly called an equal tee.
Common Applications
Plumbing and Mechanical Systems
- Branching threaded pipe runs
- Mechanical-room piping
- Galvanized steel pipe installations
- Water and utility piping
- Valve and equipment takeoffs
- General repair and maintenance
Industrial and Utility Service
- Industrial process piping
- Compressed-air systems
- Outdoor and damp-location piping
- Oil and petroleum piping
- Equipment and skid piping
- Approved low-pressure steam service
Product Resources
Review the Charman product catalog, galvanized malleable iron specifications, and manufacturer warranty information before installation.
Need Help Selecting a Galvanized Tee?
Our industrial PVF specialists can help confirm the required pipe size, pressure class, thread type, branch configuration, service conditions, material compatibility, and product availability.
Frequently Asked Questions
What is a galvanized tee used for?
A galvanized tee creates a 90-degree branch in a threaded piping system.
Are all three openings the same size?
Yes. This is an equal tee with three female NPT openings of the same nominal pipe size.
How is an equal tee different from a reducing tee?
An equal tee has the same nominal size at all three openings. A reducing tee has one or more smaller connections.
What pressure class is this fitting?
This galvanized malleable iron tee is manufactured as a 150# or Class 150 threaded fitting.
What sizes are available?
Available product variations range from 1/8" through 6" nominal pipe size.
Can it be used with galvanized steel pipe and fittings?
Yes. It is designed for compatible NPT-threaded galvanized pipe, nipples, valves, fittings, and approved equipment connections.
Does the galvanized finish improve corrosion resistance?
Yes. The galvanized finish provides added corrosion resistance compared with an unfinished black fitting, although suitability still depends on the environment, piping media, temperature, and application.
Should thread sealant be used?
Use an approved pipe-thread sealant or thread tape on the male NPT connections entering each opening, selected for the piping media, pressure, temperature, applicable codes, and manufacturer recommendations.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- The selected variation determines the Charman item number, price, weight, and cost.
- This is an equal tee with three female NPT connections of the same size.
- Confirm the nominal size and thread type of all mating components before ordering.
- Use an approved thread sealant suitable for the piping media and operating conditions.
- Do not overtighten the fitting, as excessive force can damage the threads or fitting body.
- Confirm pressure, temperature, media compatibility, corrosion exposure, and application requirements before installation.
- Support connected piping properly to avoid excessive mechanical stress on the tee.
- Installation should be completed by qualified personnel and comply with applicable codes and standards.
- Manufacturer warranty coverage is subject to the terms, limitations, and exclusions in the linked warranty document.
