150# Black Malleable Iron 90° Street Elbow
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

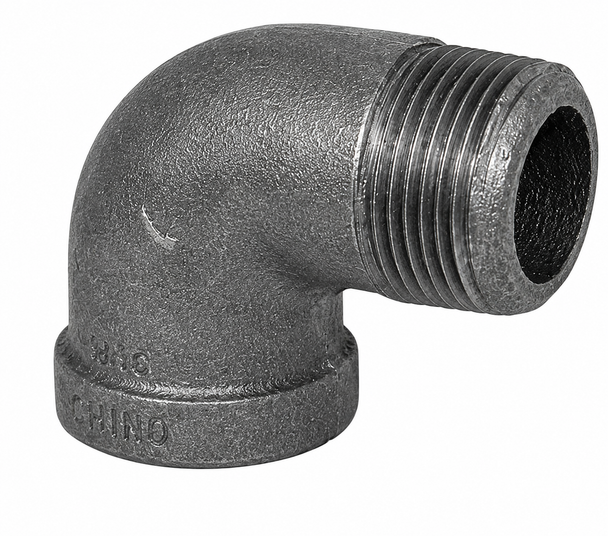

150# Black Malleable Iron 90° Street Elbow
150# black malleable iron 90° street elbows create a compact 90-degree change in piping direction using one male NPT connection and one female NPT connection. The street-elbow configuration allows the male end to thread directly into a compatible female fitting, valve, manifold, or equipment connection, often eliminating the need for a separate close nipple.
Select the required nominal pipe size from the product options above. The selected variation determines the Charman item number, online selling price, weight, cost, and other size-specific product information.
Product Highlights
- 150# Class black malleable iron construction
- Male NPT x female NPT threaded connections
- Creates a standard 90-degree change in piping direction
- Street-style design can eliminate a separate close nipple
- Equal-size male and female connections
- Durable black finish
- Compatible with standard threaded black steel pipe and malleable iron fittings
- Available in nominal pipe sizes from 1/8" through 6"
- Suitable for commercial, industrial, maintenance, and repair applications
Technical Specifications
| Material | Black Malleable Iron |
|---|---|
| Pressure Class | 150# / Class 150 |
| Connection | Male NPT x Female NPT |
| Connection Sizes | Equal-Size Connections |
| Angle | 90 Degrees |
| Thread Standard | ASME B1.20.1 |
| Dimensional Standard | ANSI/ASME B16.3 |
| Finish | Black |
| Fitting Type | Threaded 90° Street Elbow |
| Manufacturer | Charman Manufacturing |
| Available Sizes | 1/8" through 6" |
How a 90° Street Elbow Works
The male NPT end threads directly into a compatible female NPT opening, while the female NPT end accepts a male-threaded pipe, nipple, or fitting of the same nominal size. The fitting changes direction by 90 degrees and can shorten the completed assembly by eliminating a separate close nipple.
Common Applications
Plumbing and Mechanical Systems
- Compact threaded piping layouts
- Mechanical-room piping
- Black steel pipe installations
- Equipment and appliance connections
- Tight-space piping transitions
- General repair and maintenance
Industrial and Utility Service
- Industrial process piping
- Compressed-air systems
- Natural-gas piping
- Water and utility piping
- Oil and petroleum piping
- Approved low-pressure steam service
Product Resources
Review the Charman product catalog, Class 150 specifications, and manufacturer warranty information before installation.
Need Help Selecting a Black Malleable Iron 90° Street Elbow?
Our industrial PVF specialists can help confirm the required pipe size, pressure class, thread configuration, material compatibility, application requirements, and product availability.
Frequently Asked Questions
What is a 90° street elbow used for?
A 90° street elbow changes piping direction by 90 degrees while connecting one male-threaded end directly into a female-threaded opening.
Does this fitting have one male and one female connection?
Yes. It has one male NPT connection and one female NPT connection of the same nominal pipe size.
How is a street elbow different from a standard elbow?
A standard elbow normally has female threads on both ends. A street elbow has one male and one female threaded end, which can eliminate the need for a separate close nipple.
Does this fitting change pipe size?
No. This is an equal-size street elbow. The male and female connections are the same nominal pipe size.
What pressure class is this fitting?
This black malleable iron 90° street elbow is manufactured as a 150# or Class 150 threaded fitting.
What sizes are available?
Available product variations range from 1/8" through 6" nominal pipe size. Select the required size from the product options above.
Can it be used with black steel pipe and nipples?
Yes. It is designed for compatible NPT-threaded black steel pipe, pipe nipples, malleable iron fittings, valves, and equipment connections.
Can it be used for gas, water, oil, air, or steam?
It may be used in compatible gas, water, oil, compressed-air, steam, and general-service systems when the application remains within applicable pressure, temperature, media, code, and manufacturer requirements.
Should thread sealant be used?
Use an approved pipe-thread sealant or thread tape on both threaded connections, selected for the piping media, pressure, temperature, applicable codes, and manufacturer recommendations.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- The selected variation determines the Charman item number, price, weight, and cost.
- This fitting has one male NPT connection and one female NPT connection.
- Confirm the nominal size and thread type of both mating components before ordering.
- Confirm that a 90-degree direction change is appropriate for the piping layout.
- Use an approved thread sealant suitable for the piping media and operating conditions.
- Confirm pressure, temperature, media compatibility, and application requirements before installation.
- Support connected piping properly to avoid excessive mechanical stress on the fitting.
- Installation should be completed by qualified personnel and comply with applicable codes and standards.
- Manufacturer warranty coverage is subject to the terms, limitations, and exclusions in the linked warranty document.
