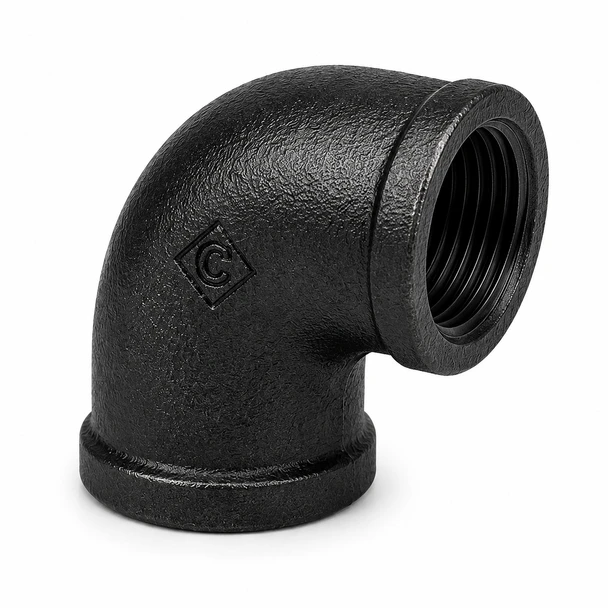

150# Black Malleable Iron 90° Elbow
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
150# Black Malleable Iron 90° Elbow
150# black malleable iron 90° elbows are designed to create a 90-degree change in direction between two male-threaded pipe ends, pipe nipples, or compatible fittings of the same nominal size. Female NPT connections on both openings make these elbows suitable for commercial plumbing, industrial piping, compressed-air, natural-gas, water, oil, fire-protection, and approved steam applications.
Select the required nominal pipe size from the product options above. The selected variation determines the Charman item number, selling price, weight, cost, and other size-specific product information.
Product Highlights
- 150# Class black malleable iron construction
- Two equal-size female NPT threaded connections
- Creates a standard 90-degree change in pipe direction
- Designed to connect two male-threaded pipe ends
- Manufactured to ANSI/ASME B16.3 dimensional standards
- Threads conform to ASME B1.20.1 requirements
- Durable black finish
- Compatible with standard threaded black steel pipe and nipples
- Available in nominal pipe sizes from 1/8" through 6"
- Suitable for commercial, industrial, maintenance, and repair applications
Technical Specifications
| Material | Black Malleable Iron |
|---|---|
| Pressure Class | 150# / Class 150 |
| Connection | Female NPT x Female NPT |
| Connection Sizes | Two Equal-Size Connections |
| Angle | 90 Degrees |
| Thread Standard | ASME B1.20.1 |
| Dimensional Standard | ANSI/ASME B16.3 |
| Finish | Black |
| Fitting Type | Standard Threaded 90° Pipe Elbow |
| Manufacturer | Charman Manufacturing |
| Available Sizes | 1/8" through 6" |
How a 90° Pipe Elbow Works
A threaded 90° elbow has two female NPT connections arranged at a right angle. Male-threaded pipe, pipe nipples, or compatible fittings are threaded into each opening, allowing the piping system to change direction by 90 degrees while maintaining the same nominal pipe size.
Common Applications
Plumbing and Mechanical Systems
- Commercial plumbing systems
- Mechanical-room piping
- Black steel pipe installations
- Water-distribution piping
- HVAC and equipment connections
- General repair and maintenance
Industrial and Utility Service
- Industrial process piping
- Compressed-air systems
- Natural-gas piping
- Oil and petroleum piping
- Fire-protection piping
- Approved low-pressure steam service
Product Resources
Review the Charman product catalog, Class 150 specifications, and manufacturer warranty information before installation.
Need Help Selecting a Black Malleable Iron 90° Elbow?
Our industrial PVF specialists can help confirm the required pipe size, pressure class, thread type, material compatibility, application requirements, and product availability.
Frequently Asked Questions
What is a black malleable iron 90° elbow used for?
A black malleable iron 90° elbow connects two male-threaded pipe ends while changing the direction of the piping system by 90 degrees.
Does this elbow have female threads on both openings?
Yes. Both openings have female NPT threads for connection to compatible male-threaded pipe, pipe nipples, or fittings.
Are both openings the same nominal pipe size?
Yes. This is a standard equal-size elbow. Select a reducing 90° elbow when different inlet and outlet sizes are required.
What is the difference between a standard elbow and a reducing elbow?
A standard elbow has two equal-size connections. A reducing elbow changes direction while also connecting two different nominal pipe sizes.
What pressure class is this fitting?
This black malleable iron elbow is manufactured as a 150# or Class 150 threaded fitting.
What sizes are available?
Available product variations range from 1/8" through 6" nominal pipe size. Select the required size from the product options above.
Can this elbow be used with black steel pipe nipples?
Yes. It is designed to connect compatible male NPT-threaded black steel pipe, pipe nipples, and other approved threaded components.
Can this elbow be used for gas, water, oil, air, or steam?
It may be used in compatible gas, water, oil, compressed-air, steam, and general-service systems when the application remains within applicable pressure, temperature, media, code, and manufacturer requirements.
Should thread sealant be used during installation?
An approved pipe-thread sealant or thread tape should be selected based on the piping media, pressure, temperature, applicable codes, and manufacturer recommendations.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- This is an equal-size elbow with two female NPT connections.
- Confirm that a 90-degree direction change is appropriate for the piping layout.
- The selected variation determines the Charman item number, price, weight, and cost.
- Confirm the thread type and nominal size of both mating components before ordering.
- Confirm pressure, temperature, media compatibility, and application requirements before installation.
- Use an approved thread sealant suitable for the piping media and operating conditions.
- Support connected piping properly to avoid placing excessive mechanical stress on the fitting.
- Installation should be completed by qualified personnel and comply with applicable codes and standards.
- Manufacturer warranty coverage is subject to the terms, limitations, and exclusions in the linked warranty document.
