150# Galvanized Malleable Iron 90° Street Elbow
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
150# Galvanized Malleable Iron 90° Street Elbow

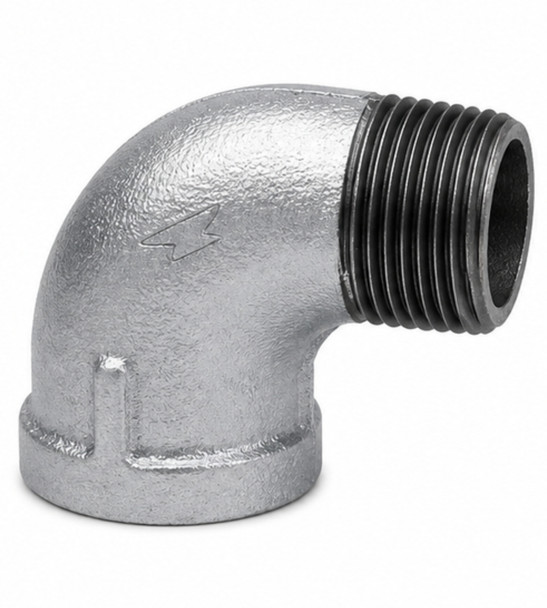

150# galvanized malleable iron 90-degree street elbows change the direction of threaded piping by 90 degrees while providing one male NPT connection and one female NPT connection. The street configuration allows the male end to thread directly into a female fitting, valve, manifold, or equipment port without requiring a separate pipe nipple.
Select the required nominal pipe size from the product options above. The selected variation determines the Charman item number, online selling price, weight, cost, and other size-specific product information.
Product Highlights
- 150# Class galvanized malleable iron construction
- Male NPT x female NPT threaded connections
- Changes piping direction by 90 degrees
- Equal-size street elbow configuration
- Male end connects directly to a female-threaded component
- Galvanized finish provides added corrosion resistance
- Available in nominal pipe sizes from 1/8" through 6"
- Suitable for commercial, industrial, plumbing, maintenance, and repair applications
Technical Specifications
| Material | Galvanized Malleable Iron |
|---|---|
| Pressure Class | 150# / Class 150 |
| Connection | Male NPT x Female NPT |
| Connection Sizes | Equal-Size Connections |
| Angle | 90 Degrees |
| Thread Standard | ASME B1.20.1 |
| Dimensional Standard | ANSI/ASME B16.3 |
| Finish | Galvanized |
| Fitting Type | Threaded 90° Street Elbow |
| Manufacturer | Charman Manufacturing |
| Available Sizes | 1/8" through 6" |
How a 90° Street Elbow Works
The male NPT end threads directly into a compatible female-threaded fitting, valve, manifold, or equipment port. The female NPT end accepts a male-threaded pipe, nipple, valve, or fitting, creating a compact 90-degree directional change without a separate connecting nipple.
Common Applications
Plumbing and Mechanical Systems
- Compact right-angle pipe connections
- Mechanical-room piping
- Galvanized steel pipe installations
- Water and utility piping
- Valve and equipment connections
- General repair and maintenance
Industrial and Utility Service
- Industrial process piping
- Compressed-air systems
- Outdoor and damp-location piping
- Oil and petroleum piping
- Equipment and skid piping
- Approved low-pressure steam service
Product Resources
Review the Charman product catalog, galvanized malleable iron specifications, and manufacturer warranty information before installation.
Need Help Selecting a Galvanized 90° Street Elbow?
Our industrial PVF specialists can help confirm the required pipe size, male and female thread orientation, pressure class, service conditions, material compatibility, application requirements, and product availability.
Frequently Asked Questions
What is a galvanized 90-degree street elbow used for?
It changes the direction of a threaded piping run by 90 degrees while connecting one female-threaded component to one male-threaded component.
What thread configuration does it have?
It has one male NPT connection and one female NPT connection of the same nominal pipe size.
How is a street elbow different from a standard elbow?
A standard elbow has female threads on both ends. A street elbow has one male end and one female end, allowing direct connection to another female-threaded component without a nipple.
What pressure class is this fitting?
This galvanized malleable iron street elbow is manufactured as a 150# or Class 150 threaded fitting.
What sizes are available?
Available product variations range from 1/8" through 6" nominal pipe size.
Can it be used with galvanized steel pipe and fittings?
Yes. It is designed for compatible NPT-threaded galvanized pipe, pipe nipples, valves, fittings, and approved equipment connections.
Does the galvanized finish improve corrosion resistance?
Yes. The galvanized finish provides added corrosion resistance compared with an unfinished black fitting, although suitability still depends on the environment, piping media, temperature, and application.
Should thread sealant be used?
Use an approved pipe-thread sealant or thread tape on the male NPT connections, selected for the piping media, pressure, temperature, applicable codes, and manufacturer recommendations.
