Titan

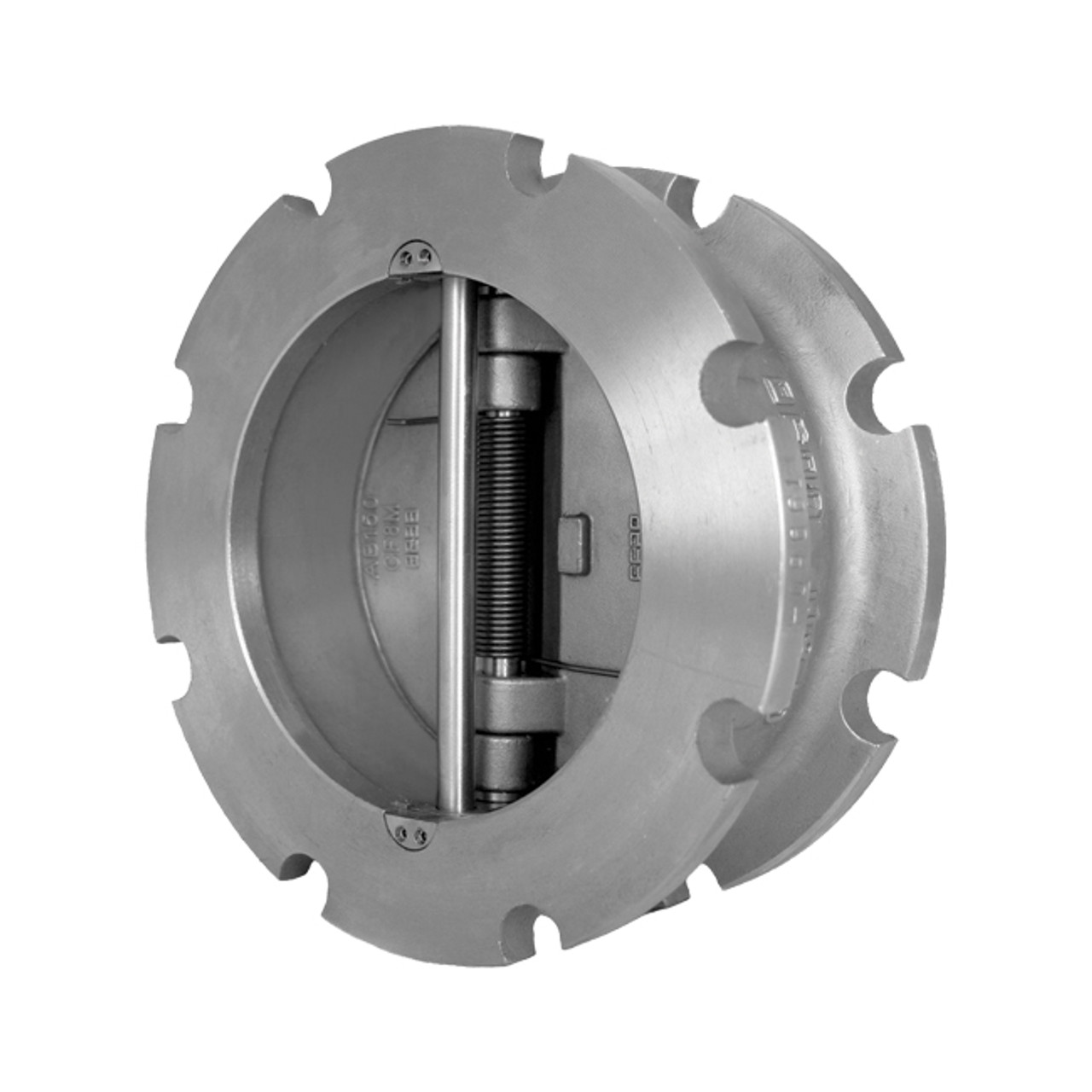

Stainless Steel Dual Disc Wafer Check Valve - Class 150
- SKU:
- CV42-SS
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Stainless Steel Dual Disc Wafer Check Valve - Class 150
Titan Flow Control CV42-SS stainless steel dual disc wafer check valves provide compact automatic backflow prevention with quick closure, low head loss, and corrosion-resistant CF8M stainless steel construction.
This GetPipe listing uses Titan CV42SSM part codes for the stainless-steel disc / metal-seat configuration. Select the required nominal size above; the selected variation determines the Titan part code, selling price, shipping weight, net cost, and size-specific information.
Product Highlights
- ASTM A351 Grade CF8M stainless steel body
- Stainless steel discs with metal seat configuration
- Dual disc / dual plate wafer-style check valve
- ASME Class 150
- 275 psi WOG non-shock at 100°F
- 2" through 6" wafer sizes provide dual-pressure Class 150/300 service per Titan literature
- Quick spring-assisted closure helps reduce water hammer
- Short, straight flow path helps minimize head loss
- Compact wafer body reduces face-to-face space
- Available from Titan in sizes 2" through 24"
Technical Specifications
| Manufacturer | Titan Flow Control |
|---|---|
| Model | CV42-SS |
| GetPipe Part-Code Configuration | CV42SSM - Stainless Steel Disc / Metal Seat |
| Body Material | Stainless Steel - ASTM A351 Grade CF8M |
| Valve Type | Dual Disc / Dual Plate Check Valve |
| Connection Style | Wafer |
| Pressure Class | ASME Class 150 |
| Pressure Rating | 275 psi WOG non-shock at 100°F |
| Disc Material | Stainless Steel - ASTM A351 Grade CF8M |
| Seat | Metal |
| Titan Published Size Range | 2" through 24" |
| GetPipe Variants on This Listing | 2" through 18" |
How a Dual Disc Wafer Check Valve Works
Forward flow opens the two spring-assisted discs. As flow velocity decreases, the lightweight split discs begin closing before full flow reversal occurs. This quick-closing action helps minimize valve slam, surge, and water hammer while automatically preventing reverse flow.
Why Stainless Steel?
The CV42-SS uses CF8M stainless steel for the body and discs, providing corrosion resistance for compatible water, wastewater, chemical, petrochemical, power, petroleum, oil and gas, and other industrial services. Always verify media compatibility and service temperature before selection.
Common Applications
Water & Utility
- Water and wastewater treatment
- Pump discharge protection
- Utility piping
- Systems requiring compact wafer installation
Industrial & Process
- Chemical and petrochemical
- Power applications
- Petroleum, oil and gas
- Pulp and paper
Manufacturer Resources
Need Help Selecting a Titan Stainless Steel Wafer Check Valve?
Our industrial PVF specialists can help confirm nominal size, flange class, seat configuration, pressure and temperature requirements, media compatibility, and product availability.
Frequently Asked Questions
What is the Titan CV42-SS?
It is a CF8M stainless steel dual-disc wafer check valve designed for automatic one-way flow control.
What configuration do these CV42SSM part codes represent?
These part codes represent the stainless-steel disc and metal-seat configuration.
What is the pressure rating?
Titan publishes 275 psi WOG non-shock at 100°F for the CV42-SS Class 150 series.
How does the design help reduce water hammer?
The spring-assisted lightweight split discs close near zero flow velocity, helping establish shutoff before significant reverse-flow velocity develops.
Does Titan manufacture sizes larger than 18"?
Yes. Titan publishes the CV42-SS through 24". This listing currently includes the CV42SSM sizes for which GetPipe has established variant cost data through 18".
Important Ordering Notes
- Select the required nominal size before adding the product to your cart.
- The selected variation determines the Titan part code, price, weight, and cost.
- Confirm metal-seat configuration is appropriate for the required shutoff performance and service.
- Confirm mating flange standard, pressure class, gasket, bolting, and installation clearances.
- Sizes over GetPipe parcel-weight limits ship by freight; freight charges apply according to GetPipe shipping policy.
- Confirm pressure, temperature, media compatibility, flow direction, and applicable code requirements before use.
