Merit Brass

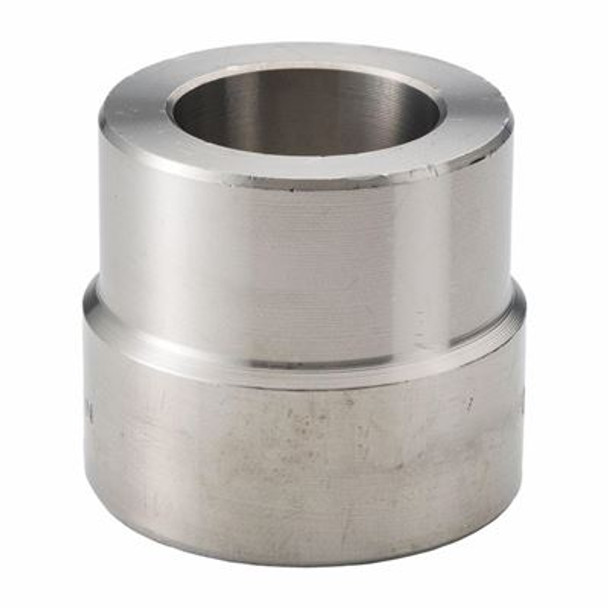

Stainless Steel 3000# Forged Reducer Insert - 304L & 316L
- SKU:
- SS3MIN
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Stainless Steel 3000# Forged Reducer Insert - 304L & 316L
Stainless Steel 3000# Forged Reducer Inserts are designed to reduce the connection size within compatible socket weld piping systems without requiring a separate reducing coupling. Available in 304L and 316L stainless steel, these forged inserts provide a compact, durable way to adapt a larger socket weld fitting to a smaller pipe size.
Forged stainless steel material conforms to ASME A182, forged fitting dimensions conform to ASME B16.11, and forged stainless socket weld inserts conform to MSS SP-79. The product family is manufactured in an ISO 9001:2008 certified facility.
Product Highlights
- 3000# forged stainless steel reducer insert
- Designed for socket weld size reduction
- Allows a larger socket weld fitting to accept a smaller pipe size
- Compact alternative to using a separate reducing coupling
- Available in 304L and 316L stainless steel grades
- Forged stainless steel material conforms to ASME A182
- Forged fitting dimensions conform to ASME B16.11
- Socket weld fittings conform to ASME B16.11
- Forged stainless socket weld inserts conform to MSS SP-79
- Related NPT threads conform to ASME B1.20.1
- Forged stainless unions conform to MSS SP-83
- Forged stainless outlets conform to MSS SP-97
- Manufactured in an ISO 9001:2008 certified facility
Technical Specifications
| Product Type | Forged Reducer Insert |
|---|---|
| Pressure Class | 3000# |
| Available Grades | 304L & 316L Stainless Steel |
| Construction | Forged Stainless Steel |
| Primary Function | Socket Weld Size Reduction |
| Connection Style | Socket Weld Insert |
| Material Standard | ASME A182 |
| Fitting Dimensional Standard | ASME B16.11 |
| Socket Weld Standard | ASME B16.11 |
| Reducer Insert Standard | MSS SP-79 |
| Related NPT Thread Standard | ASME B1.20.1 |
| Related Union Standard | MSS SP-83 |
| Related Outlet Standard | MSS SP-97 |
| Manufacturing Quality | ISO 9001:2008 Certified Facility |
Reducer Insert Design
A socket weld reducer insert is used inside a compatible socket weld fitting to reduce the connection from a larger nominal size to a smaller pipe size.
This compact configuration can simplify piping layouts by allowing size reduction directly at the socket rather than adding a separate reducing fitting to the assembly.
Socket Weld Application
The reducer insert is intended for use with compatible socket weld fittings. The insert adapts the larger fitting socket to the smaller pipe size before the assembly is welded.
Confirm the parent fitting size, reduced pipe size, socket dimensions, and welding requirements before fabrication or installation.
3000# Forged Construction
These reducer inserts are manufactured from forged stainless steel conforming to ASME A182. Forged construction provides the durability needed for demanding socket weld piping applications.
Forged fitting dimensions conform to ASME B16.11, while socket weld reducer inserts conform to MSS SP-79.
304L vs. 316L Stainless Steel
304L Stainless Steel
- General-purpose stainless steel grade
- Strong corrosion resistance for many industrial applications
- Commonly used in water and process piping
- Low-carbon stainless grade
316L Stainless Steel
- Enhanced corrosion resistance for more demanding environments
- Commonly selected for marine and chloride-exposed applications
- Useful in many chemical and process piping systems
- Low-carbon stainless grade
Reducer Insert vs. Reducing Coupling
Reducer Insert
- Installs inside a compatible socket weld fitting
- Provides size reduction directly at the socket
- Compact overall configuration
- Conforms to MSS SP-79
Reducing Coupling
- Separate forged fitting body
- Connects two different pipe sizes directly
- Uses its own socket connections
- Requires additional fitting length in the piping run
Related Forged Fitting Standards
The broader forged stainless steel fitting family includes related components manufactured to additional standards:
- ASME B16.11 - Forged and socket weld fitting dimensions
- ASME B1.20.1 - NPT threads on related threaded fittings
- MSS SP-83 - Forged stainless steel unions
- MSS SP-97 - Forged stainless steel outlets
- MSS SP-79 - Forged stainless steel socket weld inserts
Common Applications
Socket Weld Piping Systems
- Reducing socket weld connections
- Compact pipe-size transitions
- Industrial process piping
- Mechanical equipment connections
- Water treatment systems
Corrosion-Resistant Service
- Chemical processing
- Marine applications
- Stainless steel process systems
- Corrosive service environments
- Applications requiring 304L or 316L construction
Need Help With Forged Fitting Selection?
Confirm the parent socket weld fitting size, reduced pipe size, 3000# pressure class, 304L or 316L material grade, socket dimensions, and welding requirements before ordering.
Use the product documents below to review socket weld fitting dimensions and common pipe diameter and wall thickness information.
Product Documents
Stainless Steel 3M Socket Weld Fitting Dimensions
Use this reference to verify dimensional information for compatible 3000# stainless steel socket weld fittings and reducer insert applications.
- Dimensional reference for 3M socket weld fittings
- Useful for confirming parent fitting and reduced sizes
- Helps verify socket dimensions and fitting geometry
- Recommended for dimensional review before fabrication
Pipe Chart: Common Diameters & Wall Thicknesses
Use this pipe chart to confirm common nominal pipe sizes, outside diameters, and wall thicknesses when selecting compatible forged fittings.
- Common pipe outside diameters
- Reference wall thickness information
- Useful for confirming pipe-to-fitting compatibility
- Recommended before ordering or fabrication
Frequently Asked Questions
What is a socket weld reducer insert?
A socket weld reducer insert fits inside a compatible socket weld fitting to reduce the connection from a larger fitting size to a smaller pipe size.
What pressure class are these reducer inserts?
These are 3000# forged stainless steel reducer inserts.
What stainless steel grades are available?
These inserts are available in 304L and 316L stainless steel.
What standard applies specifically to socket weld reducer inserts?
Forged stainless steel socket weld inserts conform to MSS SP-79.
What material standard applies?
The forged stainless steel material conforms to ASME A182.
What dimensional standard applies?
The forged stainless steel fitting dimensions conform to ASME B16.11.
What standard applies to socket weld fittings?
Socket weld fittings conform to ASME B16.11.
How is a reducer insert different from a reducing coupling?
A reducer insert fits inside an existing compatible socket weld fitting, while a reducing coupling is a separate fitting used to connect two different pipe sizes.
Where can I find socket weld fitting dimensions?
Use the Stainless Steel 3M Socket Weld Fitting Dimensions PDF in the Product Documents section above.
How can I confirm pipe outside diameter and wall thickness?
Use the Pipe Chart: Common Diameters & Wall Thicknesses PDF in the Product Documents section above.
Important Ordering Notes
- Product type: Stainless Steel 3000# Forged Reducer Insert.
- Designed for reducing compatible socket weld connections.
- Available in 304L and 316L stainless steel.
- Forged stainless steel material conforms to ASME A182.
- Forged stainless steel fitting dimensions conform to ASME B16.11.
- Socket weld fittings conform to ASME B16.11.
- Forged stainless socket weld inserts conform to MSS SP-79.
- Related NPT threads conform to ASME B1.20.1.
- Related forged stainless unions conform to MSS SP-83.
- Related forged stainless outlets conform to MSS SP-97.
- Manufactured in an ISO 9001:2008 certified facility.
- Confirm both the parent fitting size and reduced pipe size before ordering.
- Verify socket dimensions, pressure requirements, material grade, and welding compatibility before installation.
- Refer to both Product Documents for dimensional and pipe-size information.
