Charman Inc.
Quarter Turn Angle Stop - Lead Free Chrome Plated Brass
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

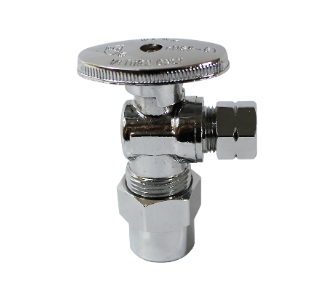

Quarter Turn Angle Stop - Lead Free Chrome Plated Brass
Charman quarter turn angle stops provide convenient shutoff control for plumbing fixture supply connections in a compact angle-valve configuration.
Select the required inlet and outlet connection configuration from the product options above. Available configurations include IPS, sweat, compression, slip-joint, and CPVC solvent connections. The selected variation determines the Charman item number, connection configuration, online selling price, weight, and cost.
Product Highlights
- Quarter-turn shutoff operation
- Angle valve configuration
- Oval operating handle
- Chrome-plated brass construction
- Compression outlet configurations
- Multiple inlet connection styles available
- UPC approved
- Lead-free Charman configurations
Available Connection Configurations
| Charman Part # | Connection Type | Configuration |
|---|---|---|
| 166006-NL | IPS × Compression | 1/2" IPS × 3/8" OD Compression |
| 166028-NL | Sweat × Compression | 1/2" Nominal Sweat × 3/8" OD Compression |
| 166016-NL | Compression × Compression | 5/8" OD (1/2" Nominal) × 3/8" OD Compression |
| 166016-NL-WDK | Compression × Compression | 5/8" OD (1/2" Nominal) × 3/8" OD Compression - WDK |
| 166020-NL | Compression × Slip-Joint | 5/8" OD (1/2" Nominal) × 7/16" or 1/2" SJ |
| 177016-NL | CPVC Solvent × Compression | 5/8" OD (1/2" Nominal) CPVC × 3/8" OD Compression |
Technical Specifications
| Valve Type | Angle Valve |
|---|---|
| Operation | Quarter Turn |
| Handle | Oval Handle |
| Body Material / Finish | Chrome-Plated Brass |
| Outlet | Compression Outlet, depending on selected configuration |
| Approval | UPC Approved |
| Manufacturer | Charman Inc. |
Quarter-Turn Operation
The quarter-turn design provides simple on/off shutoff operation with a short handle movement. The compact angle configuration is designed for plumbing supply connections where the supply line changes direction at the shutoff valve.
Common Applications
Fixture Supply Connections
- Lavatory supply connections
- Sink supply connections
- Fixture shutoff applications
- Plumbing maintenance and repair
Connection Options
- IPS inlet connections
- Sweat inlet connections
- Compression inlet connections
- Slip-joint configurations
- CPVC solvent connections
Manufacturer Specifications
Review the Charman Manufacturing Quarter Turn Angle Stops specification/catalog sheet for manufacturer-listed part numbers, connection configurations, and product specifications.
View Charman Specifications / Catalog PDFNeed Help Selecting a Quarter Turn Angle Stop?
Our plumbing and PVF specialists can help confirm the required inlet connection, outlet connection, tubing size, and angle-stop configuration for your application.
Frequently Asked Questions
What is a quarter turn angle stop?
A quarter turn angle stop is a compact shutoff valve operated by rotating the handle approximately one-quarter turn between the open and closed positions.
Which connection should I select?
Select the variation that matches both the supply-side inlet connection and the required outlet connection for your installation.
What inlet connection styles are available?
This Charman product family includes IPS, sweat, compression, and CPVC solvent inlet configurations, depending on the selected variation.
Are these angle stops chrome plated?
Yes. The Charman specification sheet identifies the product construction as chrome-plated brass.
Are these valves UPC approved?
Yes. Charman lists UPC approval in the manufacturer specifications for this quarter turn angle stop family.
Important Ordering Notes
- Select the required connection configuration before adding the product to your cart.
- The selected variation determines the Charman part number, connection configuration, price, weight, and cost.
- Verify both inlet and outlet connection dimensions before ordering.
- Installation requirements vary by connection type.
- Confirm product suitability and applicable plumbing-code requirements before installation.
