Pro-Flex HearthMaster Angle Keyed Gas Valve & Log Lighter Kit
- Availability:
- Usually Ships in 5-7 Business Days
- Weight:
- 0.00 LBS
Description
Pro-Flex HearthMaster Angle Keyed Gas Valve & Log Lighter Kit
Pro-Flex HearthMaster Angle Keyed Gas Valve & Log Lighter Kits combine a fireplace keyed gas valve assembly with a log lighter bar for starting wood-burning fireplace fires. Choose the required Natural Gas or LP / Propane configuration and select from Chrome, Black, or Brushed Nickel flange and key finishes.
Each kit combines a HearthMaster angle keyed gas valve with a coordinating plated zinc flange and key plus the appropriate HearthMaster log lighter bar for the selected gas type.
Product Highlights
- Pro-Flex HearthMaster fireplace gas valve and log lighter kit
- Angle keyed gas valve configuration
- Designed to provide a convenient way to start a wood-burning fireplace fire
- Natural Gas and LP / Propane configurations available
- Chrome, Black, and Brushed Nickel finish options
- Includes keyed gas valve, coordinating flange and key, and log lighter bar
- LP / Propane version uses the PF-941-L2 log lighter
- Natural Gas version uses the PF-940-10 log lighter
Available Gas Types & Finishes
Natural Gas
- Chrome - PF-953
- Black - PF-953-K
- Brushed Nickel - PF-953-N
LP / Propane
- Chrome - PF-956L
- Black - PF-956L-K
- Brushed Nickel - PF-956L-N
LP / Propane Log Lighter Specifications
| Log Lighter Model | PF-941-L2 |
|---|---|
| Approved Gas | LP (Propane) Gas Only |
| Mixing Chamber | Malleable Iron with 2 Inlet Ports |
| Burner Bar | Carbon Steel |
| Flame Ports | 15 |
| Maximum Working Pressure | 1/2 PSIG |
| Maximum Testing Pressure | 10 PSI |
| BTU/hr Rating | 20,000 |
| Overall Length | 20" |
| Mixing Chamber Length | 3-1/4" |
| Mixing Chamber Height | 2" |
| Inlet Threads | 1/2" FIP |
| Burner Bar Threads | 3/8" MIP |
Natural Gas vs. LP / Propane
Natural Gas Kits
PF-953 series kits use the HearthMaster PF-940-10 Natural Gas log lighter. Select this configuration only for a Natural Gas installation.
LP / Propane Kits
PF-956L series kits use the HearthMaster PF-941-L2 LP Gas log lighter. The manufacturer specifies the PF-941-L2 for LP (Propane) Gas applications only.

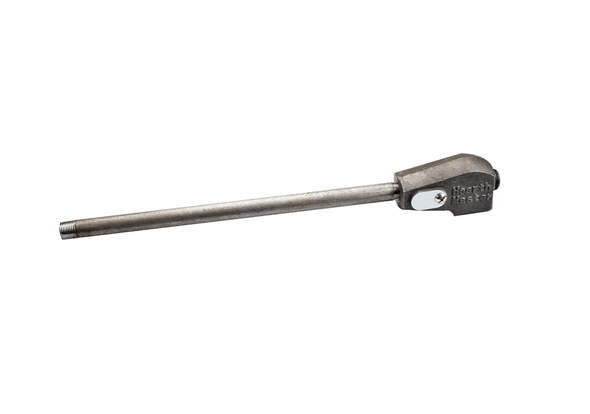

LP / Propane Log Lighter Construction
Mixing Chamber
- Malleable iron construction
- Two inlet ports
- 3-1/4" chamber length
- 2" chamber height
- 1/2" FIP inlet threads
Burner Bar
- Carbon steel construction
- 15 flame ports
- 3/8" MIP burner bar threads
- 20" overall log lighter length
Selecting the Correct Kit
Select the required Gas Type and then choose the desired Finish.
- Natural Gas + Chrome - PF-953
- Natural Gas + Black - PF-953-K
- Natural Gas + Brushed Nickel - PF-953-N
- LP / Propane + Chrome - PF-956L
- LP / Propane + Black - PF-956L-K
- LP / Propane + Brushed Nickel - PF-956L-N
Installation
Product installation and system testing shall be performed in accordance with NFPA 54/ANSI Z223.1 (National Fuel Gas Code), applicable state and local codes, and the manufacturer's instructions.
For the PF-941-L2 LP / Propane log lighter, Pro-Flex specifies that a HearthMaster PF-952 or PF-954 series keyed valve must be installed upstream within 6 feet of the log lighter.
Product Documents
HearthMaster Keyed Gas Valve Kit Spec Sheet
Review manufacturer information for the HearthMaster keyed gas valve used with the log lighter kit.
HearthMaster LP Gas Log Lighter Spec Sheet
Review manufacturer specifications for the PF-941-L2 LP / Propane log lighter, including materials, pressure ratings, dimensions, threads, and installation requirements.
Need Help Selecting a HearthMaster Log Lighter Kit?
Our industrial PVF specialists can help confirm the correct gas type and finish for your fireplace installation.
Frequently Asked Questions
What is included with these HearthMaster kits?
The kits combine an angle keyed gas valve assembly with a coordinating flange and key plus a log lighter bar for the selected gas type.
Are Natural Gas and Propane versions interchangeable?
No. Select the version designed for the fuel gas being supplied. The PF-941-L2 manufacturer sheet specifically identifies that log lighter as LP (Propane) Gas only.
Which log lighter is used for LP / Propane?
The PF-956L series uses the HearthMaster PF-941-L2 LP Gas (Propane) Log Lighter Bar.
Which log lighter is used for Natural Gas?
The PF-953 series uses the HearthMaster PF-940-10 Natural Gas log lighter.
What is the LP log lighter BTU rating?
The PF-941-L2 is rated at 20,000 BTU/hr.
How long is the LP log lighter?
The PF-941-L2 has a manufacturer-specified overall length of 20".
How many flame ports does the LP burner bar have?
The carbon-steel burner bar has 15 flame ports.
What finishes are available?
Chrome, Black, and Brushed Nickel flange and key finishes are available.
Does the log lighter require a keyed valve?
Yes. For the PF-941-L2, Pro-Flex specifies that a HearthMaster PF-952 or PF-954-series keyed valve must be installed upstream within 6 feet of the log lighter.
Important Ordering & Installation Notes
- Select the correct Gas Type before ordering.
- Natural Gas and LP / Propane versions are different products.
- Select Chrome, Black, or Brushed Nickel finish.
- PF-956L series kits include the PF-941-L2 LP / Propane log lighter.
- PF-953 series kits include the PF-940-10 Natural Gas log lighter.
- Install and test fuel gas components in accordance with applicable codes and manufacturer instructions.
