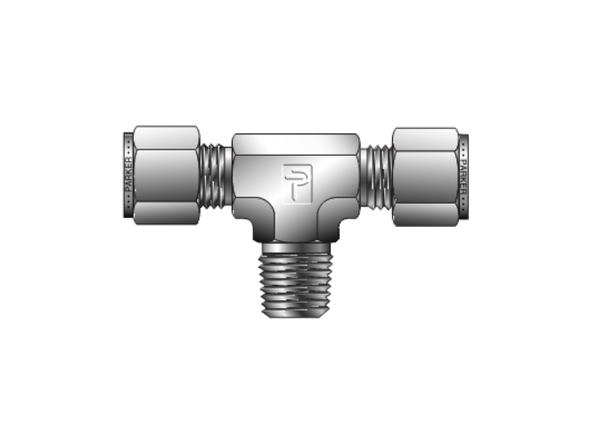

Parker CPI 1/2" x 3/8" x 1/2" Stainless Steel NPT Male Run Tee

The Parker CPI 8-6-8 RBZ-SS NPT Male Run Tee provides a dependable branch connection between two 1/2" tube connections and a 3/8" male NPT threaded port. Designed for demanding instrumentation, process control, and industrial fluid systems, this fitting delivers reliable leak-free performance using Parker's proven CPI™ single ferrule compression design.

Manufactured from heat code traceable 316 stainless steel, this fitting is engineered for high reliability in chemical processing, power generation, petroleum, analyzer, and instrumentation applications where dependable sealing and vibration resistance are essential.

Key Features

• Parker CPI™ 8-6-8 RBZ-SS NPT male run tee
• 1/2" tube × 3/8" male NPT × 1/2" tube configuration
• CPI™ single ferrule compression design
• Heat code traceable 316 stainless steel construction
• Leak-free sealing for instrumentation tubing systems
• Excellent vibration resistance
• Compatible with a wide range of tubing wall thicknesses
• Designed for repeated assembly and remakes

Construction Details

Parker CPI™ fittings utilize a spring-loaded single ferrule that maintains constant sealing force between the fitting body and nut while minimizing stress on the tubing during installation.

The fitting is manufactured from corrosion-resistant 316 stainless steel with documented heat code traceability for demanding industrial and critical service applications.

Overall dimensions include a body length (A) of 2.54", body width (C) of 1.42", hex size of 13/16", and a 3/8" male NPT center connection.

Important Notes

For maximum sealing performance, use tubing material compatible with the fitting material and follow Parker's recommended installation procedures.

Pipe thread connections may determine the maximum allowable system pressure depending on the application.

Reference Parker tubing selection guides and installation manuals for pressure ratings and proper assembly procedures.
