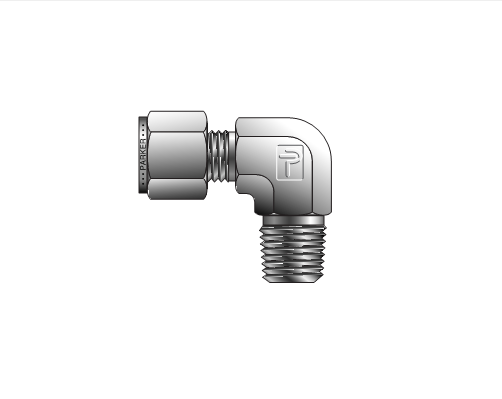

Parker CPI Stainless Steel Tube x Male NPT 90 Elbow

Parker CPI™ CBZ-SS Series 90° male elbows provide a reliable transition between fractional tubing and male NPT threaded ports in instrumentation, process control, hydraulic, pneumatic, and fluid handling systems. The compact elbow design allows directional changes while maintaining a secure, leak-resistant connection.

Manufactured from heat-code traceable 316 stainless steel, these fittings utilize Parker's proven CPI™ single-ferrule compression design to deliver dependable sealing performance, vibration resistance, and long service life in demanding industrial environments.

Key Features

• Parker CPI™ CBZ-SS Series tube fitting
• 90° elbow configuration
• Fractional tube × male NPT connection
• Single-ferrule compression tube fitting design
• Heat-code traceable 316 stainless steel construction
• Excellent vibration resistance
• Leak-resistant mechanical grip and seal
• Suitable for instrumentation and process control systems
• Compatible with a wide range of tubing wall thicknesses
• Designed for repeated assembly and remake capability

Construction Details

The Parker CPI™ fitting system utilizes a precision-engineered single ferrule that creates a spring-loaded sealing action between the tubing, ferrule, fitting body, and nut.

Unlike designs that can induce tube twisting during installation, CPI™ fittings transmit assembly forces axially to the tubing to help preserve tubing integrity and improve sealing performance.

All standard CBZ-SS fittings are manufactured from corrosion-resistant 316 stainless steel with documented heat-code traceability for critical industrial applications.

Important Notes

Designed for use with Parker CPI™ instrumentation tubing systems and compatible tubing materials.

Working pressure ratings depend on tubing size, wall thickness, material selection, and the pressure limitations of the NPT threaded connection.

Proper assembly procedures should be followed to ensure optimum sealing performance and system reliability.
