Milwaukee
Milwaukee Tool M12 FUEL Installation Drill/Driver Tool-Only
- SKU:
- MLW2505-20
- Availability:
- Usually Ships Same Day
- Weight:
- 5.00 LBS
Description
DUTY®
M12 FUEL Installation Drill/Driver
M12 FUEL Installation Drill/Driver for controlled, task-specific operation.
Product Overview
This installation drill adapts to awkward fastening. Offset and right angle heads improve access.
Choose the chuck or hex head for the bit. Two speeds and an adjustable clutch control the task.

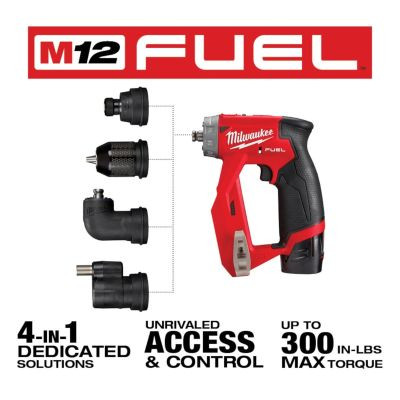

- Four AttachmentsChuck, hex, offset and right angle.
- Offset AccessWork close to an edge.
- Right Angle HeadApproach work at 90 degrees.
- Adjustable ClutchChoose from 16 settings.
Technical Specifications
- Model
- 2505-20
- Battery System
- M12
- Chuck Attachment
- 3/8 in. metal chuck
- Hex Attachment
- 1/4 in.
- Speed Ranges
- 0–400 / 0–1,600 RPM
- Torque
- 300 in-lbs
Choose the Correct Fit

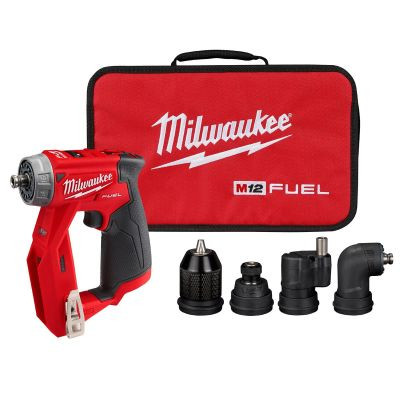

The exact model Includes list names a right angle attachment, offset attachment, 3/8 in. metal chuck attachment and 1/4 in. hex attachment.
The offset attachment helps position a bit close to an edge where a centered chuck would interfere.
Installation & Care
Remove the battery before fitting accessories or making adjustments. Check that the selected accessory is securely retained.
Follow the operator manual for setup, control settings and maintenance. Keep the work area clear and support the workpiece as required.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help choosing this cordless tool? Share model 2505-20, your task and the accessories you plan to use.
Important Product Questions
Which attachments are included?
The exact model Includes list names a right angle attachment, offset attachment, 3/8 in. metal chuck attachment and 1/4 in. hex attachment.
What is the offset head for?
The offset attachment helps position a bit close to an edge where a centered chuck would interfere.
How is speed controlled?
Select one of the two speed ranges and use the trigger. The adjustable clutch provides 16 settings for driving control.
