Milwaukee

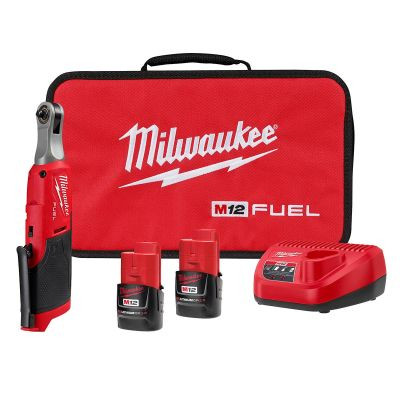

Milwaukee Tool M12 FUEL 1/4" High Speed Ratchet Kit
- SKU:
- MLW2566-22
- Availability:
- Usually Ships Same Day
- Weight:
- 4.95 LBS
Description
DUTY®
M12 FUEL 1/4 in. High Speed Ratchet Kit
M12 cordless tool kit · 2 battery packs included · Exact power items listed below
Product Overview
This M12 ratchet uses a compact head and extended paddle switch for access around fasteners.
A steel yoke supports the ratchet. An LED lights the task, and manual operation is available.
- Compact head0.75-inch head profile.
- Paddle switchMultiple grip positions.
- Steel yokeSupports the ratchet mechanism.
- Work lightLED illuminates the fastener.
Technical Specifications
- Battery system
- M12
- Square drive
- 1/4 in
- Socket retention
- Ball detent
- Speed
- 0–450 RPM
- Head profile
- 0.75 in
- Work light
- LED
Choose the Correct Fit
Fit the correct 1/4-inch-drive socket for the fastener and confirm retention. Check hand clearance around the head before operating the paddle.
Use the ratchet according to the joint requirements and verify final tightening separately when specified. The manual-operation capability is not an unlimited force rating.
Installation & Care
Remove the battery before changing sockets or servicing the ratchet. Keep fingers clear of the head and surrounding pinch points.
Inspect the socket, detent and paddle switch before use. Follow the manual for cleaning and lubrication rather than forcing a damaged mechanism.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help choosing a cordless tool kit? Share model 2566-22, your application and the accessories you need for the job.
Important Product Questions
Which batteries and charger are included?
This exact 2566-22 kit lists 2 × M12 REDLITHIUM CP2.0 2.0 Ah battery packs (48-11-2420); and 1 × M12 Lithium-ion Battery Charger (48-59-2401).
Which other package items are listed?
Along with the tool and power items above, the manufacturer lists 1 × Soft Carrying Case. Match these supplied accessories to the intended work; broader tool capability does not add unlisted accessories.
Can the ratchet be operated manually?
Yes. Milwaukee states that the ratchet can be used manually without engaging the motor. Follow the tool instructions and the joint specification for final tightening.
