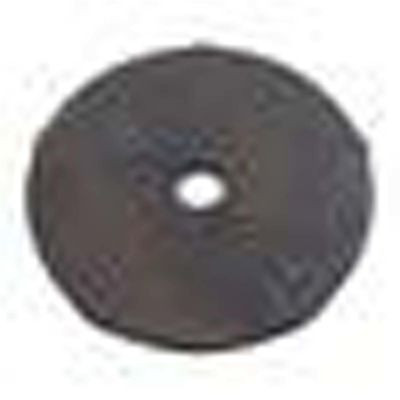

Milwaukee Tool Guide Plate for 3-1/2" Thin Wall Core Bit
- SKU:
- MLW48-20-6160
- Availability:
- Usually Ships Same Day
- Weight:
- 0.08 LBS
Description
DUTY®
Thin Wall
Core Guide Plate
Start a 3-1/2 in opening with the guide plate matched to core body 48-20-5050 and centering pin 48-20-6155.
Product Overview
The plastic guide helps steady the core body at the start of the hole, reducing movement at the mark.
It belongs to the thin wall core system. Its sized fit keeps the guide matched to the cutting body.
- Steadier startsHelps reduce core-bit walk.
- Plastic guideSupports the starting cut.
- Size-specific fitMatch the core diameter.
- Center-pin supportUse matching centering pin.
Technical Specifications
- Core diameter
- 3-1/2 in
- Core body fit
- 48-20-5050
- Centering pin
- 48-20-6155
- Wall system
- Thin wall
- Guide material
- Plastic
- Hammer system
- SDS-Plus
Choose the Correct Fit
Match this plate to core body 48-20-5050, not just a similarly sized bit. Confirm the thin wall design and 3-1/2 in diameter.
Use centering pin 48-20-6155 with the correct adapter shank for the hammer. Check the complete core assembly before starting.
Installation & Care
Isolate the hammer while fitting the guide and pin. Follow the core-bit instructions for forming the initial groove and removing the guide assembly.
Inspect the plastic plate for cracks, wear or distortion. Replace a damaged plate before it can compromise the next hole start.
