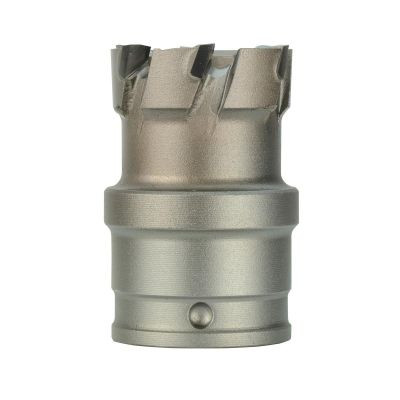

Milwaukee Tool 1-7/16" Quick Change Steel Plate Carbide Cutter
- SKU:
- MLW49-57-8225
- Availability:
- Usually Ships Same Day
- Weight:
- 0.21 LBS
Description
DUTY®
1-7/16" Carbide
Plate Hole Cutter
A 1-7/16-inch carbide-tipped cutter with 1/2-inch maximum cutting depth, using quick-change arbor 49-57-0035 for steel-plate work.
Product Overview
Match the 1-7/16-inch cutter and 1/2-inch depth to the work, allowing chip and slug clearance.
Check the drill, arbor and pilot pin before setup; a shared brand does not establish fit.
- Carbide teethCarbide teeth cut the metal.
- Drive interfaceQuick-change arbor fitting.
- Matched arborRequires model 49-57-0035.
- Cutting depthUp to 1/2 in maximum.
Technical Specifications
- Hole diameter
- 1-7/16 in
- Cutting depth
- 1/2 in
- Tooth material
- Carbide-tipped
- Connection
- Quick-change
- Required arbor
- 49-57-0035
- Hand-held depth
- 3/8 in max
Choose the Correct Fit
Choose the 1-7/16-inch diameter and use quick-change arbor 49-57-0035. Confirm the arbor is suitable for your drill before installing.
Use hand-held operation only through material up to 3/8 inch thick. Milwaukee recommends a drill press above 3/8 inch through the 1/2-inch depth limit.
Installation & Care
For cuts deeper than 1/4 inch, Milwaukee specifies Hawg Wash cutting fluid. Follow the cutter and machine instructions for speed and feed.
Clamp the material and keep the cutter square. Stop the machine before removing the slug or clearing swarf.
Small Details. Big Jobsite Energy.
Get set. Stay focused. Make your next move count.
THE NEXT JOB.
Ask Willy:
Need help choosing? Tell Willy your material, required size and working clearance so the GetPipe team can check the fit.
Important Product Questions
Can I use a nearby arbor that appears to fit?
Verify the exact interface and the machine/arbor combination. Secure engagement, cutter depth and pilot-pin travel must all suit the setup; appearance alone is not enough.
Can I cut past the stated depth?
No. Choose a cutter with sufficient working depth for the stock. Do not force the body or shoulder beyond its designed cutting range.
How do I select the finished hole size?
Choose the actual required hole diameter. A bolt, pipe or fitting’s nominal size may require a different clearance opening; check the drawing or fitting instructions.
