Midland Industries
Midland Forged Brass Mini Ball Valve (M x F)
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.00 LBS
Description

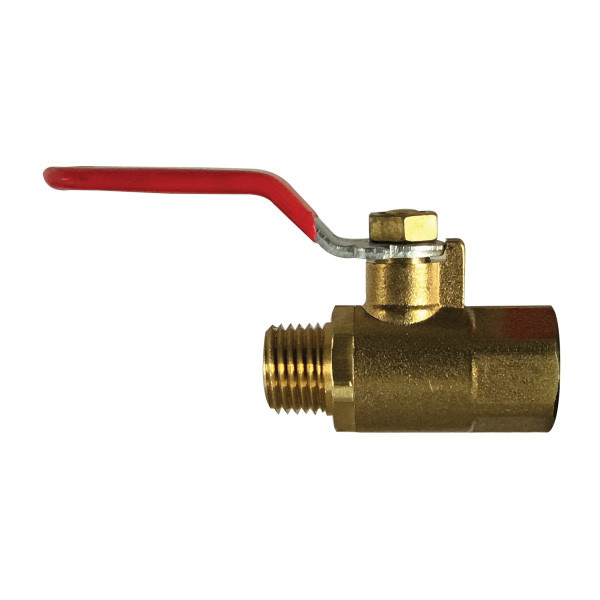

Midland Forged Brass Mini Ball Valve (M x F)
Midland Forged Brass Mini Ball Valves provide dependable quarter-turn shutoff in compact plumbing, pneumatic, instrumentation, OEM, and other fluid handling applications where installation space is limited.
Designed with a male NPT connection on one end and a female NPT connection on the other, these compact valves are available in standard and reducing configurations from 1/8" through 1/2". Forged brass construction provides durability and corrosion resistance, while the compact lever handle allows quick manual isolation in space-conscious installations.
Product Highlights
- Midland forged brass mini ball valve
- Male NPT x Female NPT threaded connections
- Compact quarter-turn lever handle
- Forged brass body construction
- Brass ball and stem
- Designed for dependable on/off shutoff
- Available in standard and reducing configurations
- Compact footprint for confined installations
- Suitable for plumbing, instrumentation, pneumatic, and OEM applications
- Available in sizes from 1/8" through 1/2"
Technical Specifications
| Product Type | Mini Ball Valve |
|---|---|
| Brand | Midland |
| Body Material | Forged Brass |
| Ball Material | Brass |
| Stem Material | Brass |
| Connection Type | Male NPT x Female NPT |
| Connection Configuration | M x F |
| Handle Style | Compact Lever Handle |
| Operation | Quarter Turn |
| Available Configurations | Standard and Reducing |
| Available Sizes | 1/8" through 1/2" |
| Typical Applications | Plumbing, Pneumatic, Instrumentation, OEM, and Compatible Fluid Systems |
Valve Configuration
Male NPT Connection
The male threaded end installs directly into a compatible female NPT fitting, port, manifold, or equipment connection.
Female NPT Connection
The opposite end accepts a compatible male NPT pipe, nipple, fitting, or equipment connection.
Quarter-Turn Lever
The compact lever handle rotates approximately 90 degrees between fully open and fully closed positions for fast manual shutoff.
Construction Details
The valve body is manufactured from forged brass to provide dependable strength, durability, and corrosion resistance while maintaining a compact overall footprint.
Brass ball and stem components support smooth quarter-turn operation and reliable manual shutoff in compatible fluid handling systems.
The male x female NPT configuration allows the valve to connect directly between compatible threaded components while minimizing the need for additional adapters.
Standard & Reducing Configurations
Standard Configurations
- Matching nominal connection sizes
- Compact inline shutoff
- Simple threaded installation
- Ideal for small piping systems
- Suitable for equipment isolation
Reducing Configurations
- Different connection sizes on each end
- Combines shutoff and size transition
- Can reduce adapter requirements
- Useful in compact assemblies
- Simplifies space-restricted piping layouts
Why Choose a Mini Ball Valve?
Compact Installation
- Small overall footprint
- Compact lever handle
- Useful in confined spaces
- Easy integration into equipment
- Ideal for compact piping assemblies
Fast Manual Shutoff
- Quarter-turn operation
- Quick open and closed positioning
- Simple manual control
- Designed for isolation service
- No external actuator required
Typical Applications
Instrumentation & Pneumatic
- Instrument lines
- Pneumatic circuits
- Manifold connections
- Equipment isolation
- Machine utility lines
Plumbing & OEM
- Compact plumbing assemblies
- OEM equipment
- Small fluid circuits
- Service shutoff points
- Space-restricted installations
Need help confirming the Male NPT x Female NPT (M x F) connection sizes, choosing between a standard or reducing configuration, or determining which Midland forged brass mini ball valve fits your application? The GetPipe.com Team can help before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What connection configuration does this valve use?
The valve uses a male NPT connection on one end and a female NPT connection on the other, commonly identified as M x F.
What material is the valve made from?
The supplied product information identifies a forged brass body with brass ball and stem components.
What sizes are available?
The supplied product information identifies sizes from 1/8" through 1/2".
Are reducing configurations available?
Yes. The supplied product information identifies both standard and reducing connection configurations.
How is the valve operated?
The valve uses a compact lever handle with quarter-turn operation between the open and closed positions.
Why use a male x female mini ball valve?
The M x F configuration allows direct connection between compatible female-threaded and male-threaded components without requiring as many separate adapters.
What applications is this valve suited for?
The supplied information identifies plumbing, instrumentation, pneumatic, and OEM applications.
What should I verify before ordering?
Confirm both connection sizes, whether a standard or reducing configuration is required, operating pressure, temperature, intended media, and available handle clearance.
Important Ordering & Installation Notes
- This listing is for Midland Forged Brass Mini Ball Valves with M x F connections.
- Available configurations include standard and reducing sizes.
- Available sizes range from 1/8" through 1/2".
- Confirm both inlet and outlet thread sizes before ordering.
- One end uses a male NPT connection and the opposite end uses a female NPT connection.
- Verify forged brass and brass internal components are compatible with the intended service media.
- Confirm system pressure and operating temperature requirements before installation.
- Use appropriate thread sealant or PTFE tape where permitted on NPT connections.
- Apply installation torque to proper wrenching surfaces rather than the lever handle.
- Avoid excessive tightening that could damage the valve body or threads.
- Verify adequate clearance for complete quarter-turn handle movement.
- Support connected piping or equipment to prevent excessive mechanical loading on the valve.
- Check both threaded connections for leakage after installation.
- Use the valve primarily in the fully open or fully closed position for isolation service.
- Fully isolate and depressurize the system before servicing or replacing the valve.
