Midland Industries

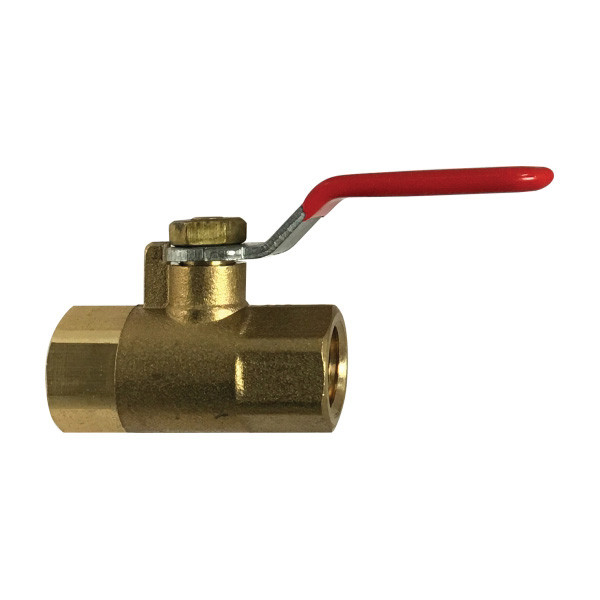

Midland FIP x FIP Forged Brass Mini Ball Valve
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.00 LBS
Description
Midland FIP x FIP Forged Brass Mini Ball Valve
Midland FIP x FIP Forged Brass Mini Ball Valves provide compact, dependable quarter-turn shutoff for plumbing, pneumatic, instrumentation, OEM, and general-purpose fluid handling applications.
Manufactured from forged brass, these mini ball valves feature female NPT threaded connections on both ends, a compact lever handle, and a space-saving body design. Available in sizes from 1/8" through 1/2", they are well suited for installations where conventional full-size valves may be too large.
Product Highlights
- Midland forged brass mini ball valve
- Female NPT x Female NPT threaded connections
- FIP x FIP connection configuration
- Compact quarter-turn lever handle
- Forged brass body construction
- Brass ball and stem
- Designed for dependable on/off shutoff
- Compact footprint for confined installations
- Suitable for water, air, oil, and general-purpose service
- Available in sizes from 1/8" through 1/2"
Technical Specifications
| Product Type | Mini Ball Valve |
|---|---|
| Brand | Midland |
| Body Material | Forged Brass |
| Ball Material | Brass |
| Stem Material | Brass |
| Connection Type | Female NPT x Female NPT |
| Connection Configuration | FIP x FIP |
| Handle Style | Compact Lever Handle |
| Operation | Quarter Turn |
| Available Sizes | 1/8" through 1/2" |
| Typical Media | Water, Air, Oil, and Other Compatible General-Purpose Media |
| Typical Applications | Plumbing, Pneumatic, Instrumentation, OEM, and Compact Fluid Systems |
Valve Configuration
Female NPT Inlet
The inlet accepts a compatible male NPT pipe, nipple, fitting, manifold connection, or equipment port.
Female NPT Outlet
The outlet also uses a female NPT connection, creating a compact female-to-female inline valve configuration.
Quarter-Turn Lever
The compact lever handle rotates approximately 90 degrees between fully open and fully closed positions for fast manual shutoff.
Construction Details
The valve body is manufactured from forged brass to provide dependable strength, durability, and corrosion resistance while maintaining a compact overall footprint.
Brass ball and stem components support smooth quarter-turn operation and reliable manual shutoff in compatible fluid handling systems.
Female NPT threaded connections on both ends allow easy installation between compatible male-threaded piping, fittings, manifolds, or equipment connections.
Why Choose a Mini Ball Valve?
Compact Installation
- Small overall footprint
- Compact lever handle
- Useful in confined spaces
- Easy integration into equipment
- Ideal for small piping assemblies
Fast Manual Shutoff
- Quarter-turn operation
- Quick open and closed positioning
- Simple manual control
- Designed for isolation service
- No external actuator required
Available Sizes
1/8" & 1/4"
Compact sizes well suited for instrumentation, pneumatic, OEM, and other small-line fluid handling applications.
3/8" & 1/2"
Larger available sizes for compatible plumbing, equipment, pneumatic, and general-purpose fluid systems.
Typical Applications
Instrumentation & Pneumatic
- Instrument lines
- Pneumatic circuits
- Equipment isolation
- Machine utility connections
- Compact control assemblies
Plumbing & OEM
- Compact plumbing assemblies
- OEM equipment
- Small fluid circuits
- Service shutoff points
- Space-restricted installations
Our pipe, valve, and industrial product specialists can help review your valve size, FIP x FIP connections, available installation space, media compatibility, and application requirements before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What connection configuration does this valve use?
The valve uses female NPT threaded connections on both ends, commonly identified as FIP x FIP.
What material is the valve made from?
The supplied product information identifies a forged brass body with brass ball and stem components.
What sizes are available?
The supplied product information identifies sizes from 1/8" through 1/2".
How is the valve operated?
The valve uses a compact lever handle with quarter-turn operation between the open and closed positions.
What media can this valve be used with?
The supplied product information identifies water, air, oil, and general-purpose service. Always verify material, pressure, and temperature compatibility for the intended application.
Why use a mini ball valve?
The compact body and handle require less installation space than many conventional ball valves, making this style useful in equipment and confined piping layouts.
What does FIP x FIP mean?
FIP x FIP indicates female pipe thread connections on both ends of the valve.
What should I verify before ordering?
Confirm valve size, female NPT connection requirements, operating pressure, temperature, intended media, and available handle clearance.
Important Ordering & Installation Notes
- This listing is for Midland FIP x FIP Forged Brass Mini Ball Valves.
- Available sizes range from 1/8" through 1/2".
- Confirm the required nominal valve size before ordering.
- Both ends use female NPT threaded connections.
- Verify forged brass and brass internal components are compatible with the intended service media.
- Confirm system pressure and operating temperature requirements before installation.
- Use appropriate thread sealant or PTFE tape where permitted on NPT connections.
- Apply installation torque to proper wrenching surfaces rather than the lever handle.
- Avoid excessive tightening that could damage the valve body or threaded connections.
- Verify adequate clearance for complete quarter-turn handle movement.
- Support connected piping or equipment to prevent excessive mechanical loading on the valve.
- Check both threaded connections for leakage after installation.
- Use the valve primarily in the fully open or fully closed position for isolation service.
- Fully isolate and depressurize the system before servicing or replacing the valve.
- Follow applicable piping requirements and Midland manufacturer recommendations.
