Charman Inc.

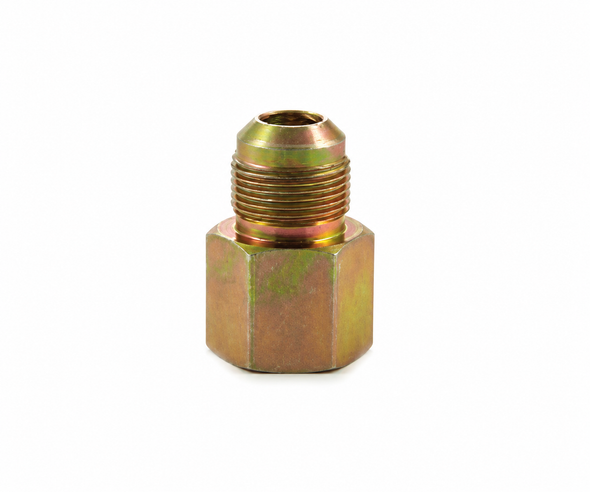

Gas Connector End Fittings - Flare x MIP with Tapped FIP
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Gas Connector End Fittings - Flare x MIP with Tapped FIP
Charman Inc Gas Connector End Fittings provide a transition between compatible gas connector flare connections and male iron pipe connections while incorporating a tapped female pipe-thread port. This family includes multiple flare, MIP, and tapped FIP combinations for matching different gas connector and piping configurations.
Available configurations include 3/8", 1/2", and 5/8" flare connections, MIP sizes from 3/8" through 3/4", and tapped FIP ports from 1/4" through 1/2". Select the exact fitting configuration required for the gas connector and mating piping components.
Product Highlights
- Charman Inc gas connector end fittings
- Flare x MIP connection configuration
- Integrated tapped FIP port
- Male iron pipe threaded connection
- Multiple flare sizes available
- Multiple MIP sizes available
- Multiple tapped FIP sizes available
- Designed for compatible gas connector assemblies
- Six connection configurations available on one listing
Technical Specifications
| Product Type | Gas Connector End Fitting |
|---|---|
| Brand | Charman Inc |
| Connection Style | Flare x MIP with Tapped FIP |
| Flare Sizes | 3/8", 1/2" and 5/8" Flare with 15/16" Thread |
| MIP Sizes | 3/8", 1/2" and 3/4" |
| Tapped FIP Sizes | 1/4", 3/8" and 1/2" |
| Primary Application | Gas Connector End Connections |
Available Connection Configurations
- 3/8" Flare x 3/8" MIP - Tapped 1/4" FIP - FM01
- 3/8" Flare x 1/2" MIP - Tapped 3/8" FIP - FM02
- 1/2" Flare x 3/8" MIP - Tapped 1/4" FIP - FM20
- 1/2" Flare x 1/2" MIP - Tapped 3/8" FIP - FM21
- 5/8" Flare, 15/16" Thread x 1/2" MIP - Tapped 3/8" FIP - FM50
- 5/8" Flare, 15/16" Thread x 3/4" MIP - Tapped 1/2" FIP - FM51
Understanding the Connection Configuration
The flare connection is designed to mate with a compatible gas connector flare connection. The MIP connection provides a male threaded pipe connection, while the tapped FIP port provides an additional female threaded opening in the fitting.
Because the flare, MIP, and tapped FIP sizes vary by SKU, confirm all three connection dimensions before ordering.
Selecting the Correct End Fitting
Flare & MIP Size
Match the flare connection to the compatible gas connector and the MIP connection to the corresponding female threaded piping or equipment connection.
Tapped FIP Port
Each fitting includes a tapped female pipe-thread port. Available tapped sizes include 1/4", 3/8", and 1/2", depending on the selected fitting.
Common Applications
Gas Connector Assemblies
- Flexible gas connector installations
- Gas appliance connections
- Replacement connector fittings
- Gas equipment connections
- Connector assembly maintenance
Connection Transitions
- Flare-to-male-pipe-thread transitions
- Connections requiring an additional tapped FIP port
- Gas connector replacement projects
- Equipment connection changes
- New gas connector installations
Ask Willy: Need Gas Connector Fitting Help?
Use the Charman Inc End Fittings for Gas Connectors catalog to compare available fitting styles, connection sizes, and configurations before ordering.
Installation & Selection Guidance
- Confirm the required flare connection size before ordering.
- Confirm the required MIP connection size before ordering.
- Confirm the tapped FIP port size required for the installation.
- Verify that the MIP connection mates with a compatible female pipe thread.
- Verify compatibility with the gas connector being installed.
- Inspect the fitting, threads, and flare sealing surfaces before installation.
- Do not install fittings with damaged threads or flare surfaces.
- Use connection and sealing practices appropriate for the gas piping system.
- Do not overtighten threaded or flare connections.
- Leak-test completed gas connections before placing equipment into service.
- Follow applicable fuel-gas codes, equipment instructions, and local requirements.
- Installation should be performed by qualified personnel familiar with gas piping systems.
Product Selection Considerations
Main Connections
Confirm both the flare connection and MIP size. These dimensions vary independently across the available fitting configurations.
Tapped Connection
Confirm the tapped FIP size independently from the main MIP connection. The tapped port is 1/4", 3/8", or 1/2" depending on the selected SKU.
Need Help Selecting a Gas Connector End Fitting?
Our PVF specialists can help review your gas connector flare size, MIP connection, tapped FIP requirement, and installation configuration before you order.
Frequently Asked Questions
What type of fittings are included in this listing?
This listing includes gas connector end fittings with a flare connection, MIP connection, and tapped FIP port.
What does MIP mean?
MIP identifies a male threaded pipe connection designed to mate with a compatible female pipe-thread connection.
What does tapped FIP mean?
The fitting includes an additional female pipe-thread opening. The tapped port size varies by fitting configuration.
What flare sizes are available?
This family includes 3/8" flare, 1/2" flare, and 5/8" flare with 15/16" thread configurations.
What MIP sizes are available?
Available MIP connection sizes are 3/8", 1/2", and 3/4", depending on the selected fitting.
What tapped FIP sizes are available?
Available tapped FIP sizes are 1/4", 3/8", and 1/2".
Which fitting is 3/8" flare x 3/8" MIP?
FM01 is 3/8" flare x 3/8" MIP with a tapped 1/4" FIP port.
Which fitting is 1/2" flare x 1/2" MIP?
FM21 is 1/2" flare x 1/2" MIP with a tapped 3/8" FIP port.
Which fittings use the 5/8" flare with 15/16" thread?
FM50 uses a 1/2" MIP with tapped 3/8" FIP port, while FM51 uses a 3/4" MIP with tapped 1/2" FIP port.
Should completed gas connections be leak-tested?
Yes. Completed gas connections should be leak-tested using an appropriate method before the connected equipment is placed into service.
Important Ordering Notes
- This listing is for Flare x MIP gas connector end fittings with tapped FIP ports.
- Six fitting configurations are available.
- Confirm the flare size before ordering.
- Confirm the MIP size before ordering.
- Confirm the tapped FIP size before ordering.
- FM01 and FM20 include tapped 1/4" FIP ports.
- FM02, FM21, and FM50 include tapped 3/8" FIP ports.
- FM51 includes a tapped 1/2" FIP port.
- Review the linked Charman Inc End Fittings for Gas Connectors catalog for additional product information.
- Installation should comply with applicable fuel-gas codes and local requirements.
- Gas connections should be installed and tested by qualified personnel.
