Empire Industries

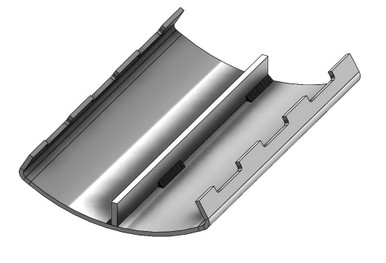

Fig. 1903 2-1/2" Pipe Covering Protection Saddle
(No reviews yet)
Write a Review
- SKU:
- Fig. 1903
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
*Images are for visual reference only.
Frequently bought together:
Description
Pipe Hangers & Supports / Brackets
Empire Industries
Fig. 1903 2-1/2" Pipe Covering Protection Saddle
Empire Fig. 1903 Pipe Covering Protection Saddle is designed for insulated high-temperature pipe lines to protect insulation from damage and minimize heat loss.
Product Highlights
- Designed for insulated high-temperature pipe lines
- Protects insulation from damage and helps minimize heat loss
- Designed for 2-1/2" insulation
- Plain carbon steel finish
- Domestically manufactured
- Complies with MSS SP-58 and SP-69, Type 39
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 1903 |
| Product Type | Pipe Covering Protection Saddle |
| Insulation Size | 2-1/2" |
| Finish | Plain Carbon Steel |
| Service | Insulated High-Temperature Pipe Lines |
| Approvals | MSS SP-58 and SP-69, Type 39 |
Important Ordering Notes
Specify the figure number, finish, and insulation size when ordering. Refer to the 1900 Series submittal for pipe-size-specific selection information.
Product Documents
Product Questions
What insulation thickness is Fig. 1903 designed for?
Fig. 1903 is designed for 2-1/2" insulation.
What is the purpose of this protection saddle?
It is designed to protect insulation on high-temperature pipe lines from damage and minimize heat loss.
