Empire Industries

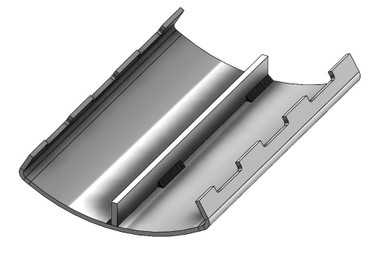

Fig. 1901 1-1/2" Pipe Covering Protection Saddle
(No reviews yet)
Write a Review
- SKU:
- Fig. 1901
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
*Images are for visual reference only.
Frequently bought together:
Description
Pipe Hangers & Supports / Brackets
Empire Industries
Fig. 1901 1-1/2" Pipe Covering Protection Saddle
Empire Fig. 1901 Pipe Covering Protection Saddle is designed for use on insulated high-temperature pipe lines to protect insulation from damage and minimize heat loss.
Product Highlights
- Designed for insulated high-temperature pipe lines
- Protects insulation from damage and helps minimize heat loss
- Fig. 1901 configuration is designed for 1-1/2" insulation
- Plain carbon steel finish
- Domestically manufactured
- Complies with MSS SP-58 and SP-69, Type 39
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 1901 |
| Product Type | Pipe Covering Protection Saddle |
| Insulation Size | 1-1/2" |
| Finish | Plain Carbon Steel |
| Service | Insulated High-Temperature Pipe Lines |
| Approvals | MSS SP-58 and SP-69, Type 39 |
Important Ordering Notes
- Specify the figure number, finish, and insulation size when ordering.
- Confirm pipe size and hanger or roller requirements using the 1900 Series submittal.
Product Documents
Product Questions
What insulation thickness is Fig. 1901 designed for?
Fig. 1901 is designed for 1-1/2" insulation.
What is the purpose of the protection saddle?
It protects insulation on high-temperature pipe lines from damage while helping minimize heat loss.
How do I select the correct saddle size?
Refer to the Empire 1900 Series submittal using the pipe size, insulation thickness, and applicable hanger or roller.
