Copper Solder Joint Tee - C x C x C
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

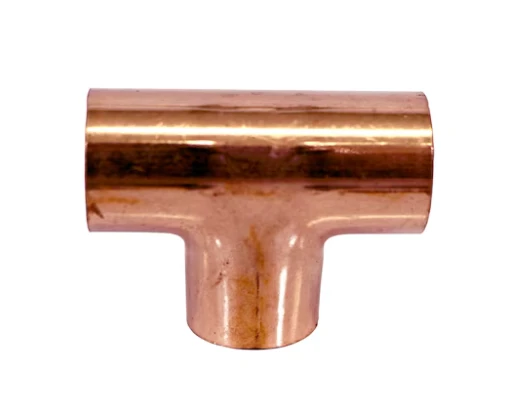

Copper Solder Joint Tee - C x C x C
Charman Inc. Copper Solder Joint Tees provide a three-way connection for compatible copper tube piping systems. The equal-size configuration uses C x C x C cup connections to create a branch from a main copper piping run while maintaining the same nominal tube size through the run and branch.
All three connections receive compatible copper tube and are designed for solder / sweat joining, making this tee suitable for new installations, branch additions, piping modifications, and repair work.
Product Highlights
- Copper equal-size tee
- C x C x C connection configuration
- Three cup-style connections
- Copper construction
- Solder / sweat installation
- Creates a branch from a copper piping run
- Same nominal connection size at all three openings
Sizes & Part Numbers
| Part Number | Size | UPC |
|---|---|---|
| 330223 | 1/2" | 847877015016 |
| 330224 | 3/4" | 847877015399 |
| 330225 | 1" | 847877020423 |
| 330226 | 1-1/4" | 847877020430 |
| 330227 | 1-1/2" | 847877020461 |
| 330228 | 2" | 847877021000 |
Technical Specifications
| Brand | Charman Inc. |
|---|---|
| Product Type | Copper Solder Joint Tee |
| Material | Copper |
| Configuration | Equal-Size Tee |
| Connection Type | C x C x C |
| Connection Style | Cup / Sweat |
| Joining Method | Solder Joint |
What Is a Copper Tee?
A copper tee is a three-opening fitting used to create a branch connection in a compatible copper piping system. Two connections form the straight run while the third connection creates the branch.
- Creates a three-way copper piping connection
- Provides a branch from the main piping run
- Maintains the same nominal size through all three connections
- Cup-style connections receive compatible copper tube
- Designed for solder / sweat joining
Understanding C x C x C
Run Inlet
One cup connection receives the copper tube entering the straight portion of the piping run.
Branch Connection
The perpendicular cup creates the third connection used to route a branch away from the main copper tube run.
Run Outlet
The opposite cup continues the straight piping run using the same nominal tube size.
Equal-Size Tee vs. Reducing Tee
Equal-Size Tee
An equal-size tee uses the same nominal connection size at the run inlet, run outlet, and branch. It is used when the branch should remain the same size as the main piping run.
Reducing Tee
A reducing tee incorporates different nominal connection sizes and is used when the branch or another portion of the fitting must transition to a different tube size.
Why Use a Copper Tee?
Create a Branch
Adds a perpendicular connection to a straight copper piping run for routing fluid to another section of the system.
Continue the Main Run
The two opposing cup connections allow the main copper tube run to continue through the fitting.
Direct Tube Connections
All three cups receive compatible copper tubing for straightforward solder / sweat installation.
Common Applications
Plumbing & Mechanical
- Copper tube installations
- Water distribution piping
- Mechanical piping systems
- Equipment connections
- Repair and maintenance
- Copper piping modifications
Branch Connections
- Creating branch piping runs
- Splitting a copper tube run
- Equipment branch connections
- Mechanical room piping
- Fabricated copper assemblies
- Same-size branch layouts
How to Select the Correct Tee
- Identify the nominal size of the copper tubing.
- Confirm that the straight run and branch require the same nominal connection size.
- Verify that C x C x C cup-style connections are appropriate for the installation.
- Confirm the branch orientation works with the intended piping layout.
- Select the variation corresponding to the required nominal tube size.
Installation Guidance
- Verify the nominal copper tube size before installation.
- Confirm the branch orientation before soldering the fitting into the piping system.
- Cut compatible copper tubing squarely and remove burrs as appropriate.
- Clean the tube ends and fitting cups before soldering.
- Apply appropriate flux according to the joining procedure.
- Fully seat the copper tubing into each fitting cup.
- Use proper soldering and heating procedures for copper joints.
- Allow completed joints to cool before disturbing the assembly.
- Test the completed piping system for leakage before placing it into service.
Our pipe and fitting specialists can help review your copper tube size, branch configuration, C x C x C connection requirements, piping layout, and application before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What does C x C x C mean?
C x C x C indicates that all three openings are cup-style connections designed to receive compatible copper tubing.
Is this a reducing tee?
No. This is an equal-size tee, meaning the run and branch use the same nominal connection size.
What is the purpose of a copper tee?
A copper tee creates a third connection from a straight piping run, allowing a branch line to be added while the main run continues through the fitting.
When should I use a reducing tee instead?
Use a reducing tee when the branch or another required connection needs a different nominal tube size from the main piping run.
How are the tube connections made?
Compatible copper tubing is inserted into each cup connection and joined using appropriate solder / sweat procedures.
Does branch orientation matter during installation?
Yes. Confirm the direction of the branch before completing the solder joints so the fitting aligns correctly with the intended piping layout.
Important Ordering Notes
- Verify the nominal copper tube size before ordering.
- Confirm that an equal-size tee is required rather than a reducing tee.
- Verify that C x C x C solder / sweat connections are appropriate for the installation.
- Confirm that the branch configuration matches the intended piping layout.
