Charman Inc.

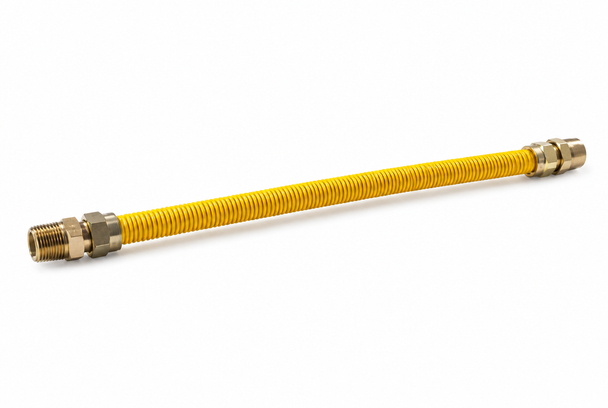

5/8" OD Yellow Coated Gas Connector
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
5/8" OD Yellow Coated Gas Connector
Charman Inc 5/8" OD Yellow Coated Gas Connectors provide a flexible connection for compatible gas-fired appliances and equipment. The corrugated flexible connector construction helps accommodate installation layouts where a rigid piping connection is impractical, while the yellow exterior coating provides the familiar appearance used for gas connector applications.
Available in lengths from 12" through 72", this connector family provides multiple options for matching the distance and routing requirements between the gas supply and connected appliance or equipment.
Product Highlights
- Charman Inc yellow coated gas connector
- 5/8" outside diameter
- Flexible corrugated connector design
- Yellow exterior coating
- Multiple lengths for different installation layouts
- Available from 12" through 72" long
- Designed for compatible gas appliance and equipment connections
- Flexible construction helps accommodate connection alignment and routing
- Multiple length options simplify connector selection
Technical Specifications
| Product Type | Yellow Coated Gas Connector |
|---|---|
| Brand | Charman Inc |
| Product Family | 80058 |
| Connector OD | 5/8" |
| Construction | Flexible Corrugated Gas Connector |
| Exterior | Yellow Coated |
| Available Lengths | 12", 18", 24", 30", 36", 48", 60" and 72" |
| Primary Application | Flexible Gas Appliance and Equipment Connections |
Flexible Gas Connector Design
The flexible corrugated construction allows the connector to accommodate practical routing between fixed gas piping and compatible appliances or equipment. This can simplify final equipment connections where exact rigid-pipe alignment would otherwise be difficult.
Connector length should be selected according to the actual distance and routing required for the installation. The connector should have sufficient length for proper positioning without being stretched, sharply bent, kinked, twisted, or unnecessarily oversized for the application.
Why Choose a Yellow Coated Gas Connector?
Flexible Installation
- Accommodates practical routing between connection points
- Useful where rigid piping alignment is difficult
- Provides flexibility between fixed piping and equipment
- Multiple lengths accommodate different installation layouts
- Helps simplify final appliance and equipment connections
Multiple Length Options
- Short 12" and 18" options for nearby connections
- 24", 30", and 36" intermediate lengths
- 48", 60", and 72" options for longer connection distances
- Allows connector length to be matched more closely to the installation
- One listing covers the complete 80058 length range
Choosing the Correct Length
Measure the distance and planned routing between the gas supply and the appliance or equipment connection before selecting a connector. Choose a length that provides adequate routing without requiring the connector to be stretched or placed under unnecessary tension.
Avoid selecting excessive length simply to create additional slack. Proper routing should minimize sharp bends, twisting, kinking, crushing, and contact with surfaces that could damage the connector.
Common Applications
Gas-Fired Equipment
- Compatible gas appliances
- Commercial cooking equipment
- Heating equipment
- Mechanical equipment
- Other compatible gas-fired equipment
Installation & Replacement
- New equipment installations
- Replacement connector applications
- Maintenance projects
- Equipment connection updates
- Applications requiring flexibility between fixed connection points
Available Connector Lengths
The 80058 connector family is available in eight lengths, allowing the same 5/8" OD connector style to be selected according to the required installation distance.
- 12"
- 18"
- 24"
- 30"
- 36"
- 48"
- 60"
- 72"
Ask Willy: Need Gas Connector Help?
Review the Yellow Coated Gas Connector specification sheet for product information, or use the complete Charman Inc connector catalog to compare available connector sizes, configurations, and lengths before ordering.
Installation & Selection Guidance
- Confirm that a 5/8" OD gas connector is appropriate for the intended installation.
- Verify the required end connections before ordering and installation.
- Select a connector length appropriate for the actual installation distance and routing.
- Do not stretch the connector to reach between connection points.
- Avoid sharp bends, kinks, crushing, twisting, or other connector damage.
- Route the connector so it is protected from physical damage.
- Inspect the connector and fittings for damage before installation.
- Avoid contact with sharp edges or surfaces that could damage the connector or coating.
- Use connection and sealing practices appropriate for the gas piping system.
- Leak-test completed gas connections using an appropriate method before placing equipment into service.
- Follow applicable fuel-gas codes, local requirements, equipment instructions, and connector documentation.
- Installation should be completed by qualified personnel familiar with gas piping systems.
Product Selection Considerations
Connector Diameter
This listing is specifically for the 5/8" OD connector family. Confirm the required connector size and connection configuration for the appliance, equipment, and gas supply before ordering.
Connector Length
Select from 12", 18", 24", 30", 36", 48", 60", or 72" according to the required installation distance and routing. Choose a length that permits proper installation without stretching or excessive slack.
Need Help Selecting a Gas Connector?
Our PVF specialists can help review your connector diameter, required length, connection requirements, equipment, and installation conditions before you order.
Frequently Asked Questions
What size is this gas connector?
This listing is for Charman Inc yellow coated gas connectors with a 5/8" outside diameter.
What lengths are available?
The 80058 connector family in this listing is available in 12", 18", 24", 30", 36", 48", 60", and 72" lengths.
How do I choose the correct connector length?
Measure the required connection distance and consider the intended routing. Select a length that allows proper installation without stretching, kinking, twisting, or placing unnecessary tension on the connector.
What does 5/8" OD mean?
OD means outside diameter. These connectors have a nominal outside diameter of 5/8".
Is this a rigid gas connection?
No. This is a flexible corrugated gas connector designed to provide flexibility between compatible fixed connection points.
Can I use a longer connector and coil the excess?
Select a connector length appropriate for the actual installation rather than intentionally creating excessive slack. Follow the connector documentation and applicable installation requirements for proper routing.
Can the connector be sharply bent?
The connector should be routed without sharp bends, kinks, twisting, crushing, or other conditions that could damage it.
Should the connector be inspected before installation?
Yes. Inspect the connector, coating, and fittings for visible damage before installation.
Should gas connections be leak-tested after installation?
Yes. Completed gas connections should be leak-tested using an appropriate method before the connected equipment is placed into service.
Where can I find additional gas connector information?
Use the Yellow Coated Gas Connector specification sheet and complete Charman Inc connector catalog linked in the Willy section for additional product information.
Important Ordering Notes
- This listing is for Charman Inc 5/8" OD yellow coated gas connectors.
- Select the required connector length from the available options.
- Available lengths are 12", 18", 24", 30", 36", 48", 60", and 72".
- Confirm the required connector size and end connections before ordering.
- Confirm connector routing and required installation length before ordering.
- Do not install a connector that is kinked, twisted, crushed, or otherwise damaged.
- Review the linked Charman Inc specification sheet and connector catalog for additional product information.
- Installation should comply with applicable fuel-gas codes, equipment requirements, and local regulations.
- Gas connections should be installed and tested by qualified personnel.
