300# Extra Heavy Black Malleable Iron 90° Elbow
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

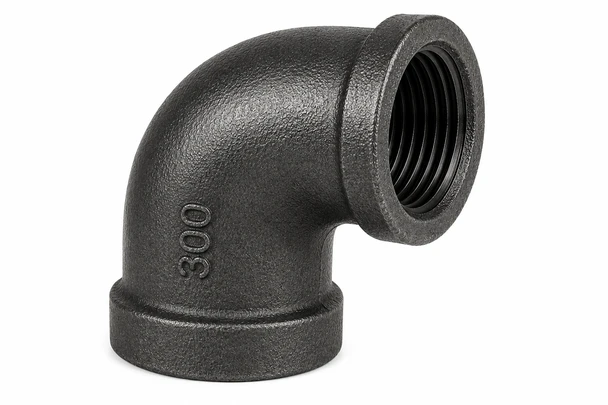

300# Extra Heavy Black Malleable Iron 90° Elbow
Charman Schedule 300 extra heavy black malleable iron 90° elbows provide a 90-degree directional change in threaded piping systems where an extra-heavy malleable iron fitting is required.
Select the required nominal pipe size from the product options above. The selected variation determines the Charman item number, online selling price, net cost, and size-specific product information.
Product Highlights
- Schedule 300 / 300# extra heavy fitting
- 90° elbow configuration
- Black malleable iron construction
- Female threaded openings
- Designed for threaded piping systems
- Available in nominal sizes from 1/2" through 2"
- Charman Manufacturing product family
Available Sizes & Packaging
| Charman Part # | Nominal Size | Inner Box | Master Box |
|---|---|---|---|
| 664103 | 1/2" | 40 | 80 |
| 664104 | 3/4" | 30 | 60 |
| 664105 | 1" | 20 | 40 |
| 664106 | 1-1/4" | 12 | 24 |
| 664107 | 1-1/2" | 8 | 16 |
| 664108 | 2" | 6 | 12 |
Technical Specifications
| Material | Malleable Iron |
|---|---|
| Finish | Black |
| Product Series | Schedule 300 / 300# Extra Heavy |
| Configuration | 90° Elbow |
| Connection Style | Threaded |
| Manufacturer | Charman Inc. |
| Available Sizes | 1/2" through 2" |
90° Directional Change
The 90° elbow configuration changes piping direction by approximately 90 degrees while maintaining female threaded connections through the fitting. It is commonly used to turn threaded piping around corners, connect vertical and horizontal pipe runs, and change piping direction in compact mechanical installations.
Common Applications
Industrial & Mechanical
- Threaded piping systems
- Mechanical-room piping
- Equipment connections
- Maintenance and repair work
Commercial Piping
- Utility piping
- Fabrication projects
- Threaded pipe assemblies
- Extra-heavy fitting applications
Manufacturer Resources
Review the Charman Manufacturing Schedule 300 Malleable Fittings catalog for manufacturer-listed part numbers, sizes, packaging quantities, and product illustrations.
View Charman Schedule 300 CatalogNeed Help Selecting a 300# Black Malleable Iron 90° Elbow?
Our industrial PVF specialists can help confirm nominal pipe size, fitting configuration, threaded connection requirements, service conditions, and product availability.
Frequently Asked Questions
What is a 90° malleable iron elbow used for?
A 90° elbow changes the direction of a threaded piping system by approximately 90 degrees and is commonly used where piping needs to turn a corner or transition between horizontal and vertical runs.
What sizes are available?
This Charman 300# extra heavy 90° elbow family is available in nominal pipe sizes from 1/2" through 2".
What does 300# extra heavy mean?
Charman identifies this fitting family as Schedule 300 / extra heavy black malleable fittings. Confirm the required fitting class and service conditions for your piping system before installation.
What type of connections does this elbow have?
This elbow has female threaded openings on both ends for use with compatible male-threaded pipe, nipples, and other threaded piping components.
How do I choose the correct variation?
Select the nominal pipe size that matches the threaded pipe and mating components in your system.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- The selected variation determines the Charman part number, price, and net cost.
- Verify fitting size and configuration before ordering.
- Inner-box and master-box quantities vary by size.
- Confirm pressure, temperature, media compatibility, and applicable code requirements before installation.
