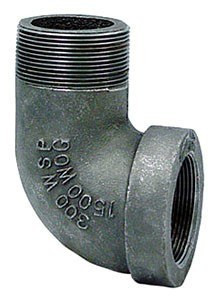

300# Extra Heavy Black Malleable Iron 90° Street Elbow
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
300# Extra Heavy Black Malleable Iron 90° Street Elbow
300# extra heavy black malleable iron 90° street elbows create a compact 90-degree change in direction between a female-threaded opening and a male-threaded pipe, valve, or compatible fitting. The male NPT x female NPT configuration allows one end of the fitting to thread directly into another female-threaded component, reducing the need for an additional pipe nipple.
Select the required nominal pipe size from the product options above. The selected variation determines the ASC item number, UPC, online selling price, weight, net cost, and other size-specific product information.
Product Highlights
- 300# / Class 300 extra heavy black malleable iron construction
- Male NPT x female NPT threaded connections
- Creates a compact 90-degree change in pipe direction
- Male end threads directly into compatible female-threaded components
- Can reduce the need for a separate pipe nipple
- Manufactured to ASME B16.3 requirements
- Threads conform to ASME B1.20.1
- Malleable iron material conforms to ASTM A197
- UL/ULC Listed and FM Approved
- ASC Figure 3170
- Available in nominal pipe sizes from 1/4" through 3"
Technical Specifications
| Material | Black Malleable Iron |
|---|---|
| Pressure Class | 300# / Class 300 / Extra Heavy |
| Connection | Male NPT x Female NPT |
| Connection Sizes | Equal Nominal Pipe Size |
| Angle | 90 Degrees |
| Thread Standard | ASME B1.20.1 |
| Dimensional Standard | ASME B16.3 |
| Material Standard | ASTM A197 |
| Finish | Black |
| Approvals | UL/ULC Listed and FM Approved |
| Manufacturer | ASC |
| Figure Number | 3170 |
| Available Sizes | 1/4" through 3" |
How a 90° Street Elbow Works
A threaded 90° street elbow has one male NPT connection and one female NPT connection arranged at a right angle. The male end threads directly into a compatible female-threaded fitting, valve, or equipment connection, while the female end accepts a male-threaded pipe, pipe nipple, valve, or fitting. This compact configuration changes direction by 90 degrees while minimizing the number of threaded components required.
Common Applications
Commercial and Mechanical Systems
- Commercial plumbing systems
- Mechanical-room piping
- Equipment and valve connections
- Water and utility piping
- Compressed-air systems
- General repair and maintenance
Industrial and Fire-Protection Service
- Industrial process piping
- Fire-protection piping where approved
- Oil and petroleum piping
- Compatible gas service
- Approved low-pressure steam service
- Maintenance, repair, and operations applications
Product Resources
Review the ASC Figure 3170 cut sheet and ASC malleable iron threaded fittings catalog before installation.
Need Help Selecting a 300# Black Malleable Iron 90° Street Elbow?
Our industrial PVF specialists can help confirm the required pipe size, pressure class, male x female thread configuration, material compatibility, service conditions, and product availability.
Frequently Asked Questions
What is a 300# black malleable iron 90° street elbow used for?
It changes the direction of a threaded piping system by 90 degrees while connecting a female-threaded component on the male end to a male-threaded component on the female end.
What connections does this street elbow have?
It has one male NPT connection and one female NPT connection of the same nominal pipe size.
How is a street elbow different from a standard 90° elbow?
A standard 90° elbow normally has female NPT threads on both openings. A street elbow has one male NPT connection and one female NPT connection, allowing the male end to thread directly into another female-threaded component.
What pressure class is this fitting?
This fitting is manufactured as a 300# / Class 300 extra heavy threaded malleable iron fitting.
What sizes are available?
Available product variations range from 1/4" through 3" nominal pipe size.
What standards and approvals apply?
The fitting conforms to ASME B16.3, ASTM A197, and ASME B1.20.1 requirements and is UL/ULC Listed and FM Approved.
Should thread sealant be used during installation?
Use an approved pipe-thread sealant or thread tape selected for the piping media, pressure, temperature, applicable codes, and manufacturer recommendations.
