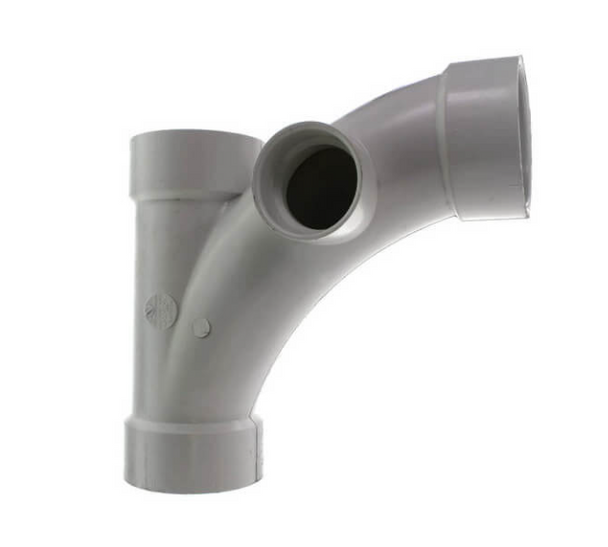

3" PVC DWV Wye & 45 Degree Combo w/ 2" L Side Inlet
- SKU:
- P515-338
- Availability:
- Usually Ships Same Day
- Weight:
- 2.34 LBS
Description
3" PVC DWV Wye & 45 Degree Combo w/ 2" L Side Inlet
3" PVC DWV Wye & 45 Degree Combo w/ 2" L Side Inlet combines an angled branch connection and 45-degree directional transition within compatible PVC drain, waste, and vent piping. The fitting also incorporates a 2" left-side inlet for an additional branch connection.
The 3" wye and 45 degree combination with 2" left-side inlet provides a multi-directional connection within compatible PVC DWV piping. Selection should account for the 3" main size, 2" left-side inlet, adjoining components, fitting orientation, joining requirements, piping alignment, support, and available installation clearance.
Product Highlights
- PVC construction
- DWV fitting design
- 3" nominal main size
- Wye and 45° combination
- Includes 2" left-side inlet
- Provides multiple branch connections
- Connects compatible PVC DWV components
- Combines an angled branch, 45-degree transition, and additional side inlet
Technical Specifications
| Product Type | Wye & 45° Combination with Side Inlet |
|---|---|
| Material | PVC |
| System Type | DWV |
| Main Size | 3" |
| Side Inlet Size | 2" |
| Side Inlet Position | Left |
| Fitting Configuration | Wye & 45° Combo |
| Connection Interface | Compatible PVC DWV Components |
| Joining Method | Compatible PVC DWV Joining Procedure |
| Directional Configuration | Angled Branch with 45° Transition |
| Piping Configuration | Multi-Directional Branch Connection |
| Primary Function | Provide a Wye and 45-Degree Transition with an Additional 2" Left-Side Inlet |
Wye & 45° Combo Design
The wye and 45-degree combination provides an angled branch and directional transition within one compatible PVC DWV fitting arrangement. This configuration supports multi-directional routing where several piping paths meet near the same location.
The fitting orientation should be established before permanent joining so the branch, 45-degree transition, and side inlet correspond with the intended piping layout. Planning the position helps coordinate adjoining components, nearby fittings, support, and available working clearance.
2" Left-Side Inlet
The 2" left-side inlet provides an additional branch connection from the fitting body. This opening should be matched to appropriately sized compatible PVC DWV components before permanent assembly.
The side inlet position should be confirmed before installation so the branch aligns with the intended piping route. Proper preparation, compatible joining materials, and careful alignment help establish the connection without unnecessary stress on the fitting.
PVC DWV Integration
The PVC DWV construction allows the combination fitting to integrate into compatible drain, waste, and vent piping arrangements requiring multiple directional connections. Matching the 3" main size and 2" side inlet to adjoining components helps maintain the intended piping configuration.
Application suitability should be evaluated using the requirements of the complete DWV system. Adjoining materials, connection compatibility, joining materials, piping support, slope where applicable, and local installation requirements should all be considered during fitting selection.
Multi-Directional Configuration
A 3" PVC DWV Wye & 45 Degree Combo with 2" Left Side Inlet combines several directional functions within one fitting arrangement. This can simplify piping layouts where an additional compatible branch must connect from the left side.
Installation planning should consider the main connection, angled branch, 45-degree transition, left-side inlet position, adjoining component alignment, nearby fittings, available clearance, and piping support. Connected components should align naturally without forcing the fitting into position.
Installation & Selection Considerations
- Confirm the 3" main size.
- Verify the 2" left-side inlet.
- Check PVC DWV compatibility.
- Confirm all branch orientations.
- Set the fitting position before assembly.
Our PVC fitting specialists can help review the 3" main size, 2" left-side inlet, DWV requirements, adjoining components, branch orientation, joining requirements, piping alignment, support requirements, and available installation clearance before you order.
Frequently Asked Questions
What is this PVC DWV combination fitting used for?
It combines a wye-style branch, 45-degree directional transition, and additional left-side inlet within a compatible PVC DWV piping arrangement.
What is the main fitting size?
The main fitting size is specified as 3".
What size is the side inlet?
The additional left-side inlet is specified as 2".
Which side is the additional inlet on?
The additional 2" inlet is positioned on the left side of the fitting.
Does fitting orientation matter?
Yes. The wye, 45-degree transition, and left-side inlet should correspond with the intended piping layout.
What should I confirm before ordering?
Confirm the 3" main size, 2" left-side inlet, PVC DWV compatibility, and required fitting orientation.
Important Ordering & Installation Notes
- Inspect all connections before use.
- Confirm the 3" main size.
- Verify the 2" left-side inlet.
- Prepare adjoining components correctly.
- Set all branch orientations before assembly.
