ASC

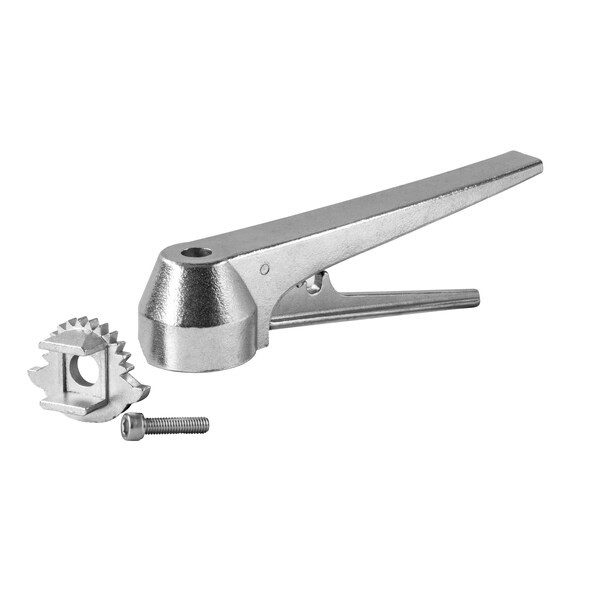

Stainless Steel 11 Position Valve Handle
- Availability:
- Usually Ships in 1-2 Days
- Weight:
- 1.00 LBS
Description
Stainless Steel 11 Position Valve Handle
Stainless Steel 11 Position Valve Handles provide adjustable manual positioning for compatible sanitary butterfly valves and other compatible sanitary valve assemblies.
The multi-position design allows the operator to select from multiple valve positions rather than limiting the valve to only fully open or fully closed operation. Stainless steel construction provides a durable handle option for compatible sanitary, hygienic, food-processing, beverage, pharmaceutical, and general process piping applications.
Product Highlights
- Stainless steel valve handle
- 11-position adjustment design
- Designed for compatible sanitary butterfly valves
- Provides multiple manual valve positions
- Allows controlled valve-disc positioning
- Durable stainless steel construction
- Manual valve operation
- Suitable for compatible sanitary process systems
- Useful as a replacement or separately ordered valve handle
- Verify compatibility with the valve before ordering
Technical Specifications
| Product Type | Sanitary Valve Handle |
|---|---|
| Handle Style | 11-Position |
| Material | Stainless Steel |
| Operation | Manual |
| Positioning | Multi-Position / 11 Position |
| Primary Function | Manual Positioning of Compatible Sanitary Valves |
| Typical Valve Type | Compatible Sanitary Butterfly Valves |
| Typical Applications | Sanitary, Hygienic & General Process Piping Systems |
Construction Details
The Stainless Steel 11 Position Valve Handle is designed to provide durable manual control for compatible sanitary valve assemblies.
The stainless steel construction makes the handle suitable for compatible sanitary and hygienic piping environments where durable, corrosion-resistant valve hardware is preferred.
The handle incorporates an indexed positioning design that allows the valve operator to select from multiple operating positions while maintaining positive manual control of the valve stem.
11-Position Adjustment
Multiple Valve Positions
The 11-position design allows the valve to be manually set at multiple positions between its operating limits, providing more positioning flexibility than a simple open-or-closed handle.
Manual Process Control
The indexed handle can be useful where an operator needs to manually adjust valve-disc position for compatible process flow requirements.
Designed for Sanitary Butterfly Valves
This handle is intended for use with compatible sanitary butterfly valves that accept an 11-position manual operating handle.
Because sanitary valve stem dimensions and handle mounting arrangements can vary, confirm compatibility with the specific butterfly valve before ordering the handle.
Replacement & Separate Handle Applications
Replacement Handle
The handle can provide a replacement option when an existing compatible sanitary valve handle is damaged, missing, or no longer serviceable.
Valve Sold Without Handle
This handle can also be selected separately for compatible sanitary butterfly valves that are supplied without an operating handle.
Typical Applications
Sanitary Process Systems
- Sanitary butterfly valves
- Hygienic process piping
- Stainless steel sanitary systems
- Equipment inlet and outlet valves
- Compatible sanitary process equipment
Manual Valve Control
- Manual process isolation
- Intermediate valve positioning
- Replacement handle applications
- Process-line valve operation
- Compatible flow-control applications
Installation & Selection Considerations
- Confirm that the sanitary valve is designed to accept an 11-position handle before ordering.
- Verify valve stem and mounting compatibility with the handle.
- Inspect the handle, mounting components, and valve stem before installation.
- Confirm that adequate clearance is available for complete handle movement and position selection.
- Fully isolate and depressurize the piping system before installing or replacing valve operating hardware.
Our sanitary valve and industrial product specialists can help confirm whether this 11-position stainless steel handle is compatible with your butterfly valve, valve stem, and sanitary process application before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is an 11-position valve handle?
An 11-position handle allows a compatible valve to be manually positioned at multiple indexed points rather than only fully open or fully closed.
What type of valve is this handle used with?
This handle is intended for compatible sanitary valves, including compatible sanitary butterfly valve assemblies.
Is the handle made from stainless steel?
Yes. This product is identified as a stainless steel valve handle.
Can this be used as a replacement handle?
Yes, provided the handle is compatible with the existing valve stem and mounting arrangement.
Can I use this with a butterfly valve sold without a handle?
It can be used with compatible sanitary butterfly valves designed to accept this style of 11-position operating handle. Confirm compatibility before ordering.
Does an 11-position handle allow intermediate valve positioning?
Yes. The indexed design provides multiple selectable handle positions for compatible valve assemblies.
Should I verify the valve stem before ordering?
Yes. Confirm the valve stem, mounting arrangement, and handle compatibility before ordering a replacement or separately supplied handle.
What should I check before installation?
Verify compatibility, inspect the valve stem and mounting components, confirm adequate handle clearance, and fully isolate and depressurize the piping system before installation.
Important Ordering & Installation Notes
- This listing is for a Stainless Steel 11 Position Valve Handle.
- Valve is not included unless specifically stated otherwise.
- Confirm compatibility with the sanitary butterfly valve before ordering.
- Verify the valve stem, mounting arrangement, and operating-clearance requirements before installation.
- Fully isolate and depressurize the piping system before installing or replacing valve operating hardware.
