Stainless Corrugated Connector - 1" FIP x 1" FIP
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Stainless Corrugated Connector - 1" FIP x 1" FIP
Stainless Corrugated Water Heater Connectors provide a flexible threaded connection for water heater and compatible plumbing installations. This connector family features 1" FIP connections on both ends with 304 stainless steel CSST construction and is available in 12", 18", and 24" lengths.
The connector combines 304 stainless steel CSST manufactured to ASTM A240, chrome-plated brass HPb58-3 fittings, and a high-quality EPDM gasket. It is rated for working pressures up to 125 PSIG, intermittent impulse pressures up to 189 PSIG, and temperatures from -40°F to 180°F. Each connector is 100% leak tested.
Product Highlights
- Stainless corrugated water heater connector
- 1" FIP x 1" FIP connection configuration
- Female threaded connections on both ends
- 304 stainless steel CSST construction
- Stainless steel manufactured to ASTM A240
- Chrome-plated brass HPb58-3 fittings
- High-quality EPDM gasket
- Working pressure up to 125 PSIG
- Intermittent impulse pressure up to 189 PSIG
- Temperature range from -40°F to 180°F (82°C)
- Minimum bend radius of 2.5"
- 100% leak tested
- Available in 12", 18", and 24" lengths
Technical Specifications
| Product Type | Stainless Corrugated Water Heater Connector |
|---|---|
| Brand | Charman Inc |
| Connection Configuration | 1" FIP x 1" FIP |
| Connection 1 | 1" Female Iron Pipe |
| Connection 2 | 1" Female Iron Pipe |
| Tube Construction | 304 Stainless Steel CSST |
| Stainless Steel Standard | ASTM A240 |
| Fittings | Chrome-Plated Brass HPb58-3 |
| Gasket | High-Quality EPDM |
| Maximum Working Pressure | 125 PSIG |
| Intermittent Impulse Pressure | Up to 189 PSIG |
| Temperature Range | -40°F to 180°F (82°C) |
| Minimum Bend Radius | 2.5" |
| Testing | 100% Leak Tested |
| Available Lengths | 12", 18", and 24" |
| Primary Application | Water Heater and Compatible Plumbing Connections |
Certifications & Approvals
- IAPMO/UPC Certified
- ASME A112.18.6 / CSA B125.6
- AB 1953 Compliant - Lead Free
304 Stainless Steel CSST Construction
The corrugated tube is constructed from 304 stainless steel to ASTM A240. Its corrugated design provides flexibility between fixed connection points, helping accommodate positioning and alignment during water heater and plumbing installations.
Chrome-plated brass HPb58-3 fittings and a high-quality EPDM gasket complete the connector assembly. The connector is designed to maintain controlled flexibility while observing the specified 2.5" minimum bend radius.
Pressure & Temperature Performance
Pressure Ratings
- Working pressure up to 125 PSIG
- Intermittent impulse pressure up to 189 PSIG
- 100% leak tested
Temperature Range
- Minimum temperature: -40°F
- Maximum temperature: 180°F (82°C)
- Designed for compatible water applications within published pressure and temperature limits
Available Connector Lengths
- 12" - SKU 173212
- 18" - SKU 173218
- 24" - SKU 173224
All three variants use the same 1" FIP x 1" FIP connection configuration. Select the connector length that best matches the required installation distance and routing.
Understanding the Connection Configuration
1" FIP Connection
One end provides a 1" female threaded pipe connection designed to mate with a compatible 1" male threaded connection.
1" FIP Connection
The opposite end also provides a 1" female threaded pipe connection, creating a straight 1" FIP x 1" FIP connector configuration.
Choosing the Correct Length
Measure the distance and planned routing between connection points before selecting a connector. Choose a 12", 18", or 24" length that provides adequate routing without placing excessive tension, compression, or distortion on the corrugated stainless steel tube.
Maintain the specified 2.5" minimum bend radius and avoid sharp bends, kinks, crushing, or twisting during installation.
Common Applications
Water Heater Connections
- Water heater installations
- Water heater replacements
- Hot water connections
- Cold water connections
- Equipment connection updates
Flexible Plumbing Connections
- 1" threaded plumbing connections
- Flexible equipment-to-piping transitions
- Residential plumbing installations
- Commercial plumbing installations
- Repair and maintenance applications
Ask Willy: Need Stainless Connector Help?

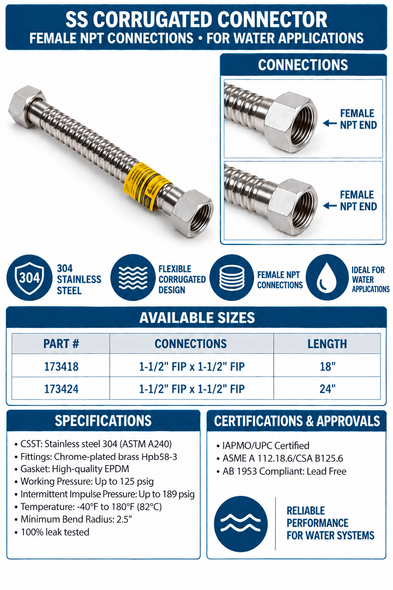

Review the Stainless Steel Water Heater Connector specification sheet for product, pressure, temperature, and dimensional information, or use the Charman Inc catalog to compare available connector sizes, lengths, and configurations before ordering.
Installation & Selection Guidance
- Confirm that the required connection configuration is 1" FIP x 1" FIP.
- Verify that both FIP connections mate with compatible 1" male threaded connections.
- Select the appropriate connector length for the installation distance and routing.
- Maintain a minimum bend radius of 2.5".
- Do not sharply bend, kink, crush, or twist the corrugated stainless steel tube.
- Inspect the connector, fittings, threads, and gasket before installation.
- Do not install components that are visibly damaged.
- Align threaded connections carefully to avoid cross-threading.
- Use sealing practices appropriate for threaded plumbing connections.
- Do not exceed the 125 PSIG working-pressure rating.
- Use only within the specified -40°F to 180°F temperature range.
- Check completed connections for leaks before placing the system into service.
- Follow applicable plumbing codes, equipment instructions, and local requirements.
- Installation should be performed by qualified personnel.
Product Selection Considerations
Connection Compatibility
This connector uses a 1" FIP connection at both ends. Confirm that both mating connections are compatible 1" male pipe threads before ordering.
Length & Routing
Select the 12", 18", or 24" variant according to the required installation distance. Maintain the 2.5" minimum bend radius and avoid unnecessary stress on the connector.
Need Help Selecting a Stainless Connector?
Our PVF specialists can help review your threaded connection requirements, connector length, pressure and temperature requirements, and installation configuration before you order.
Frequently Asked Questions
What connections does this stainless connector have?
This connector has a 1" FIP female threaded connection on both ends.
What lengths are available?
This listing includes 12", 18", and 24" connector lengths.
What is the corrugated tube made from?
The CSST tube is constructed from 304 stainless steel to ASTM A240.
What are the fittings made from?
The connector uses chrome-plated brass HPb58-3 fittings.
What type of gasket is used?
The connector uses a high-quality EPDM gasket.
What is the maximum working pressure?
The connector is rated for working pressure up to 125 PSIG.
What is the intermittent impulse pressure rating?
The intermittent impulse pressure rating is up to 189 PSIG.
What temperature range is this connector rated for?
The specified temperature range is -40°F to 180°F, with 180°F equal to approximately 82°C.
What is the minimum bend radius?
The minimum bend radius is 2.5". Avoid bending the connector more tightly than this during installation.
Is this connector leak tested?
Yes. The connectors are 100% leak tested.
Is this connector lead free?
Yes. The connector is AB 1953 compliant and lead free.
What certifications and standards apply?
The connector is IAPMO/UPC Certified and listed to ASME A112.18.6 / CSA B125.6. It is also AB 1953 compliant and lead free.
What does FIP mean?
FIP identifies a female threaded pipe connection designed to mate with a compatible male pipe-thread connection.
What is the difference between SKUs 173212, 173218, and 173224?
All three use the same 1" FIP x 1" FIP connection configuration. SKU 173212 is 12" long, SKU 173218 is 18" long, and SKU 173224 is 24" long.
Where can I find additional product information?
Use the Charman Inc Stainless Steel Water Heater Connector specification sheet and complete catalog linked in the Willy section for additional product, dimensional, and selection information.
